Cover, right side removal – Lexmark 5056 User Manual
Page 11

4-10
Service Manual
5056-XXX
Cover, right side removal
1.
Open the top unit, and remove the front cover and upper cassette.
2.
Remove the operator panel cable and the USB cable from the operator panel.
(See
“Front door / operator panel removal”
.)
3.

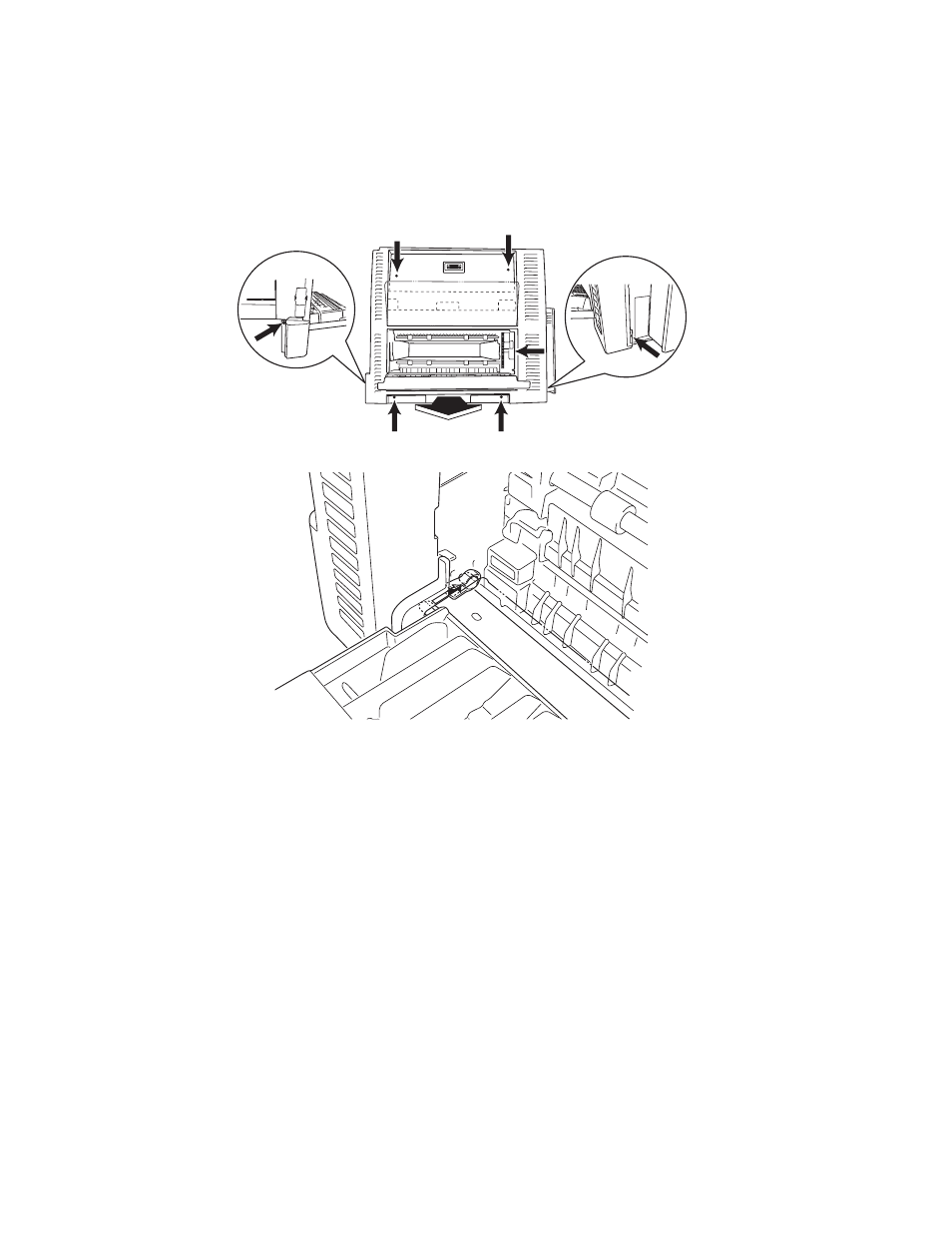

Remove the seven screws from the right side cover together with the turn guide, and remove the cover.
4.
When installing the right side cover, insert the turn guide shaft into the bearing.
