General Information

3

25

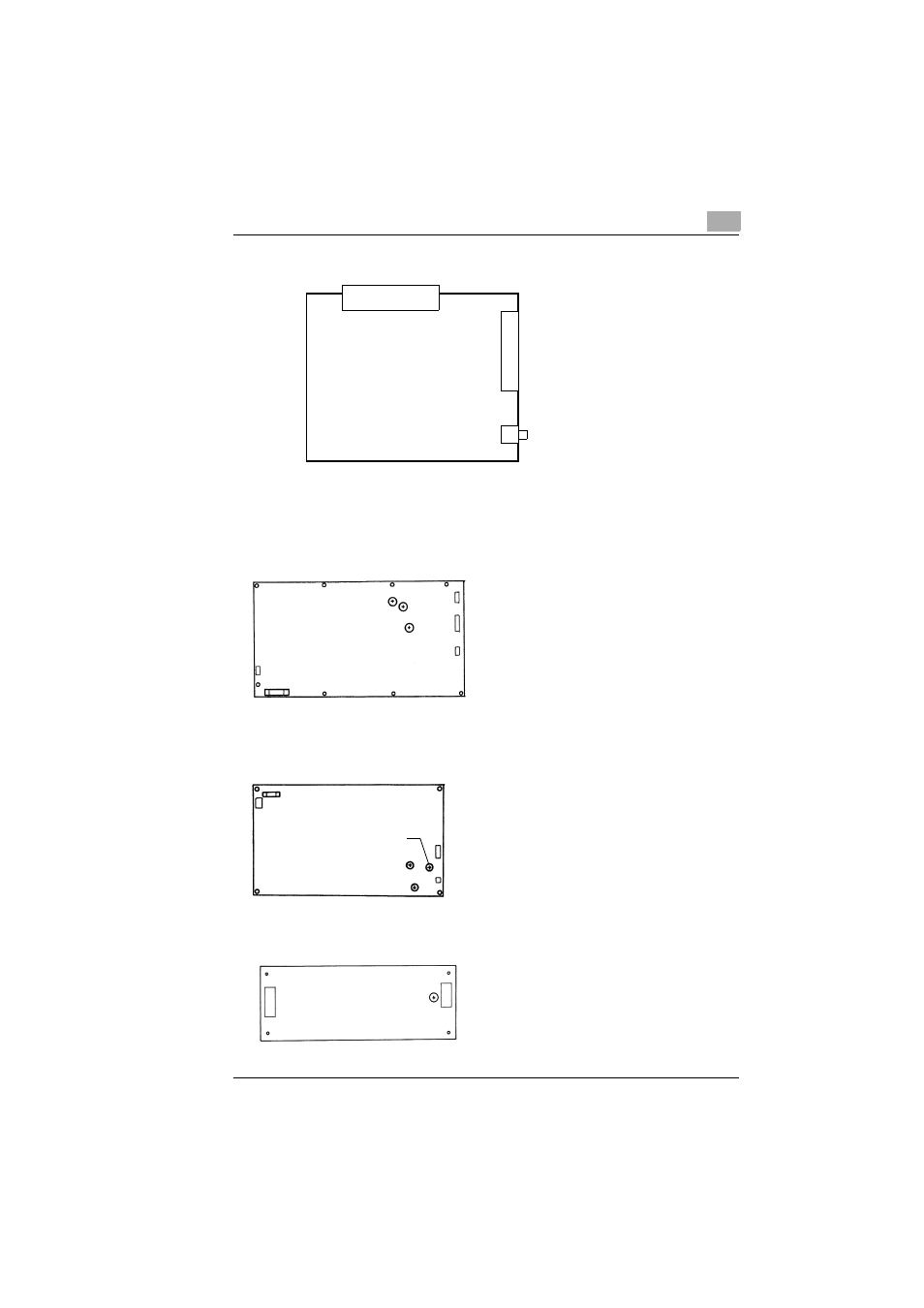

3.9.3 I/F Board (PWB-SS)

3.9.4 Main Power Unit (PU1)

3.9.5 Projection Lamp Regulator (PU2)

3.9.6 Optional Power Unit (PU3)

RSW1

.. For SCSI ID setting

RSW1

VR61: For Factory use *Do Not Touch
VR62: For Factory use *Do Not Touch
VR63: For Factory use *Do Not Touch

F1: Fuse
AC250V 12A (100/120V area)
AC250V 6.3A (220/240V area)

VR61

VR63

VR62

F1

VR61: Projection Lamp voltage adjustment
VR62: For Factory use *Do Not Touch
VR63: For Factory use *Do Not Touch

F1: Fuse
AC125V 5A (100/120V area)
AC250V 5A (220/240V area)

F1

VR63

VR62

VR61

VR1: For Factory use *Do Not Touch

VR1
