7 f7: projection lamp voltage adjustment – Kodak 2400DSV User Manual
Page 107
6
Function Mode and Adjustment
100
6.8.7 F7: Projection Lamp Voltage Adjustment
This Adjustment is made to adjust the Projection Lamp Voltage.
This Adjustment is necessary after the replacement of the Projection
Lamp Regulator (PU2).

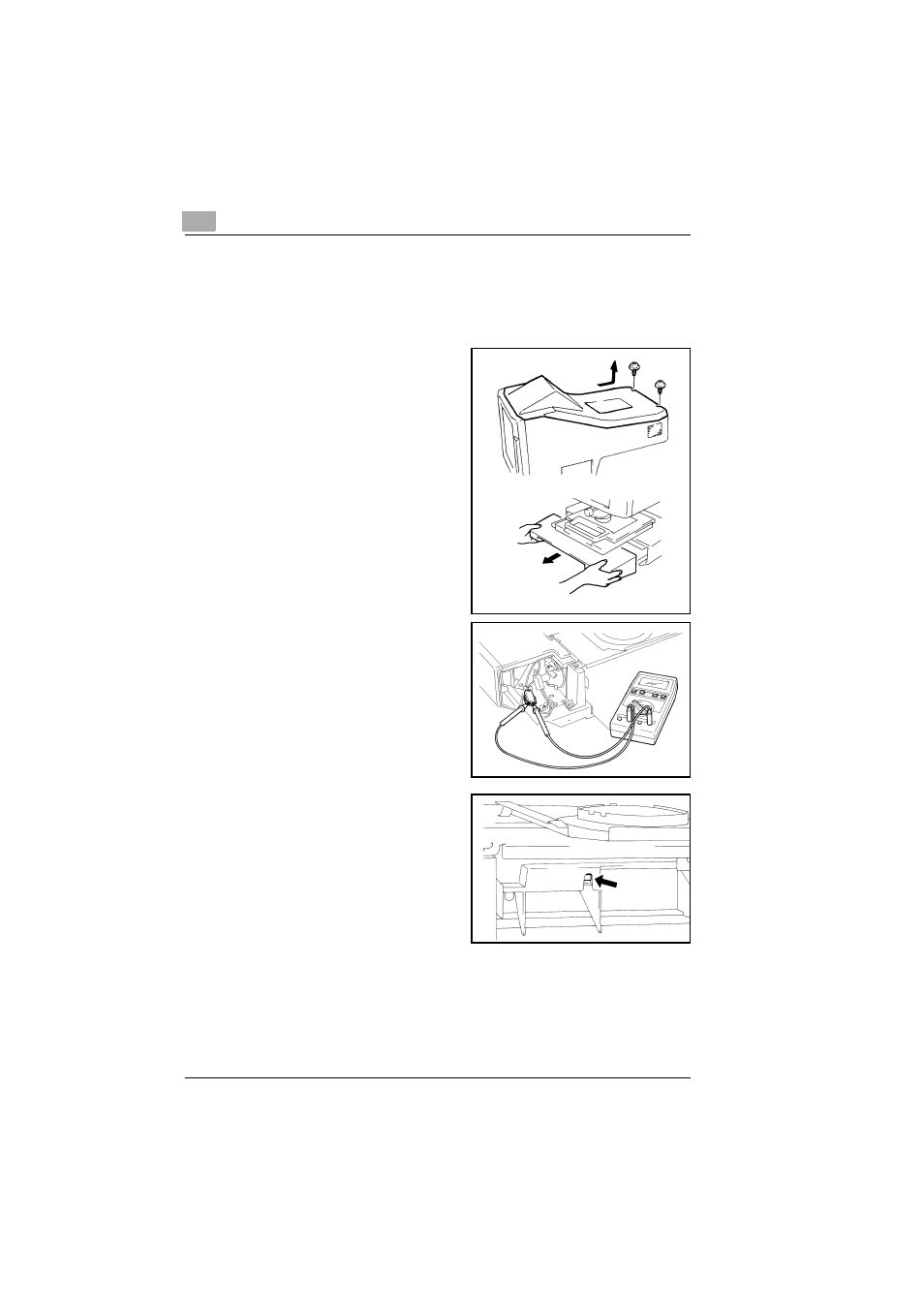

1. Remove the Optical Cover.
2. Remove the Projection Unit.
3. Insert the proves of a multi-
meter into the receptacle of 2P
connector locates at the right
side bottom of the machine.
(+) Test Prove: Pin 1 (Red cord)
(-) Test Prove: Pin 2 (Green cord)
4. Turn ON the Interlock Switch
(S201).
5. Connect the Power Plug with
the outlet and turn ON the
Power Switch.
