6.7.4 o4: Scan Speed Adjustment
This operation is used to match the width on the Screen image with that
on the print (scan) image.
This adjustment is necessary after the replacement of PWB-BB.
1. Load the Film in the machine and make a print (scan).
Size: Letter (A4) Lengthwise
Centering:OFF
Masking:OFF
2. Measures the width of the image A on the Screen and on the print to
obtain any difference.
3. If the difference exceeds ±0.6%, make the following adjustment.
4. Adjusting the o4 of the Function Mode so that the width distance
between A and B can be within ±0.6%
o4
Setting Variation (%) Image
d5 +1.92 Larger
d6 +1.28
d7 +0.64
d8 0.00
d9 -0.64
dA -1.28
db -1.92 Smaller

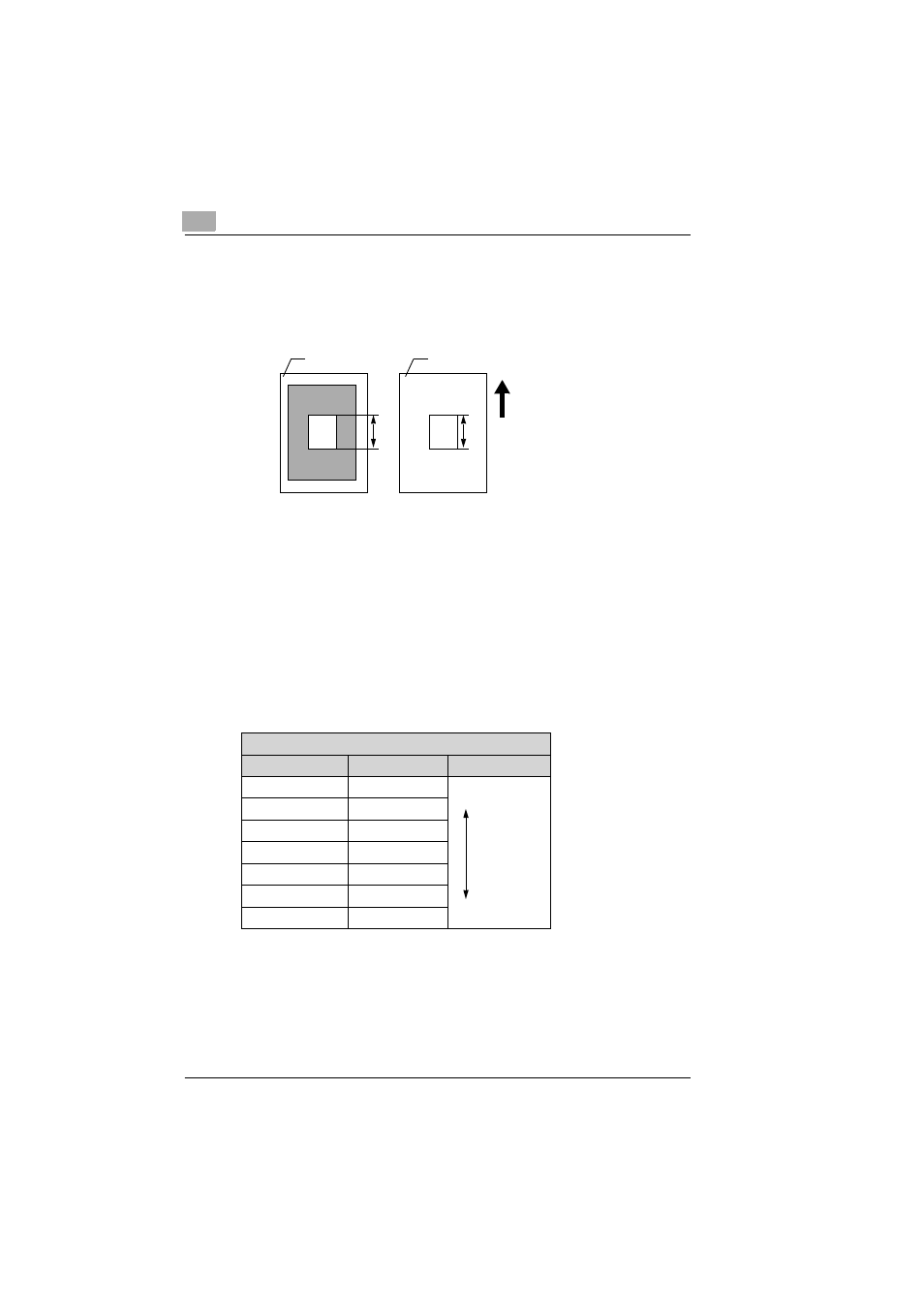

A B
Screen Image
Feed Direction
