KTI Networks KGS-2416 - Manual (Page 99)

95
3-6-4.Storm Control
Function name:
Storm Control Configuration
Function description:
The switch support storm ingress policer control function to limit the Flooded,
Multicast and Broadcast to prevent storm event happen.

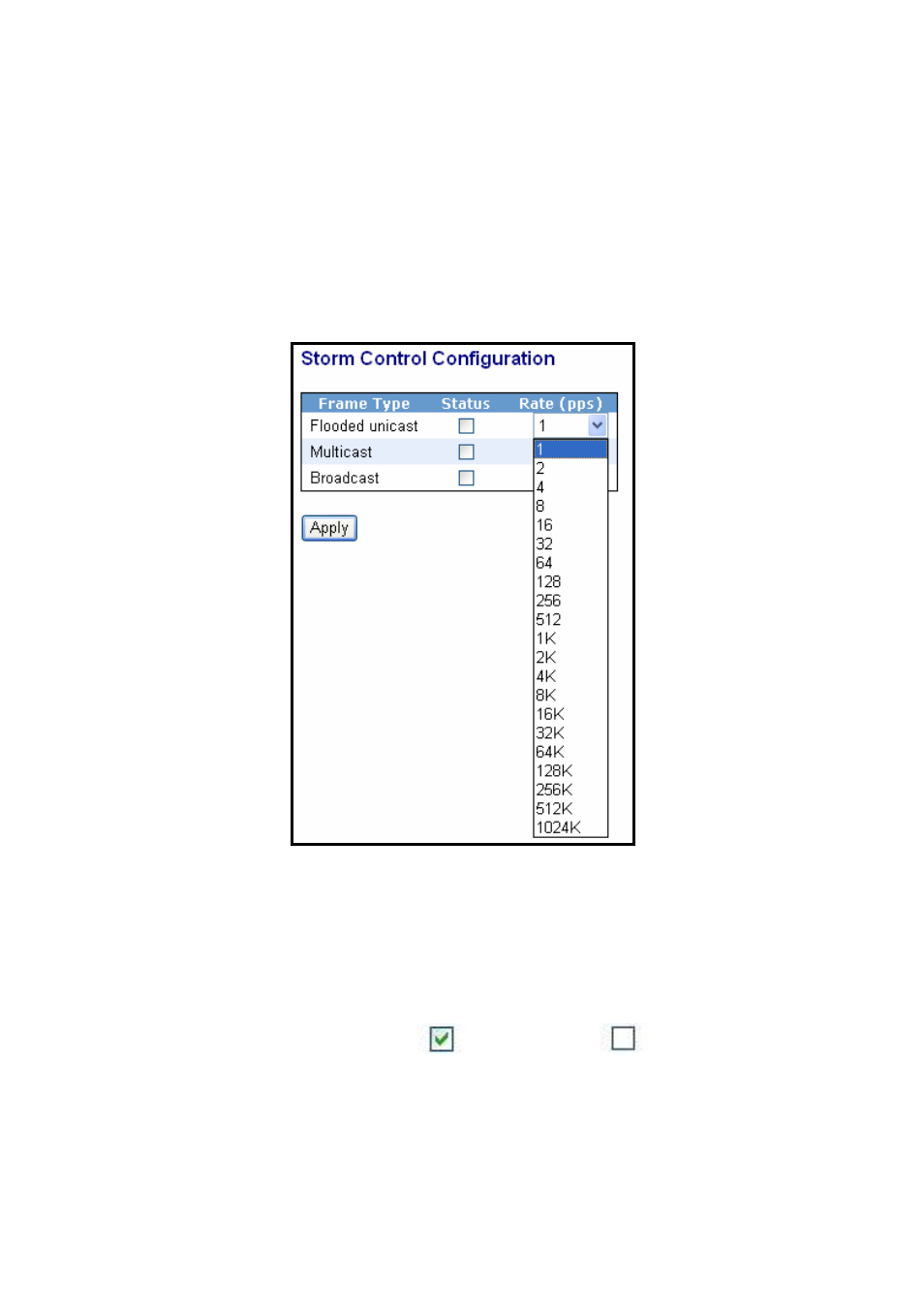

Fig. 3-44
Parameter description:
Frame Type:
There three frame types of storm can be controlled: Flooded unicast /
Multicast / Broadcast
Status:
Enable/Disable Selection: means enabled, means disabled
Rate(pps):
Refer to the following rate configurable value list, the unit is Packet Per
Second (pps).
1 / 2 / 4 / 8 / 16 / 32 / 64 / 128 / 256 / 512 / 1K / 2K / 4K / 8K / 16K / 32K
/ 64K / 128K / 256K / 512K / 1024K
