KTI Networks KGS-2416 - Manual (Page 211)

207
3-18-3. LLDP Statistics
Function name:
LLDP Statistics
Function description:
Display the detailed counting number of each port’s LLDP traffic .

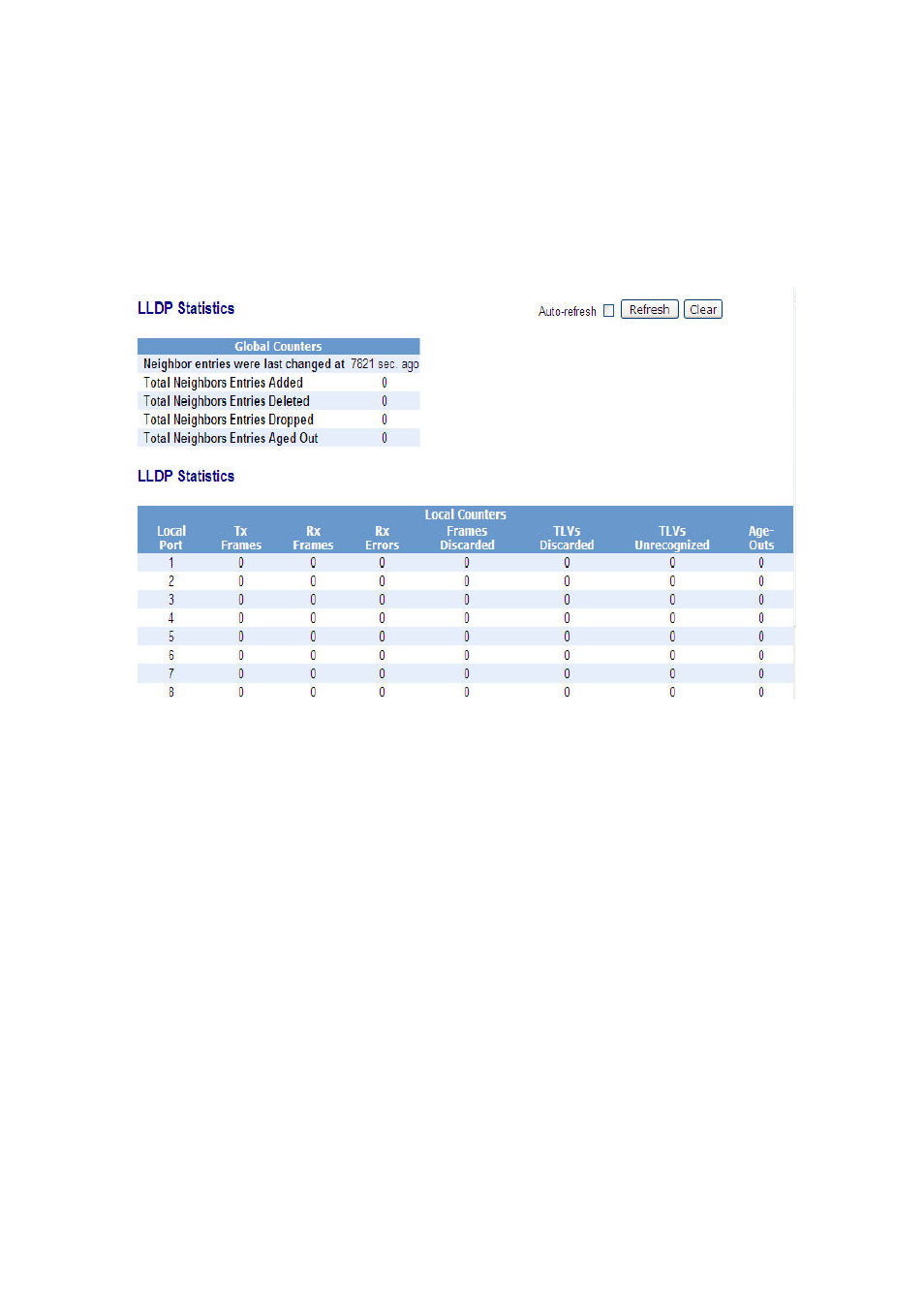

Fig. 3-18-3 LLDP statistics
Parameter description:
Neighbor entries were last changed at:
The time period which neighbor entries were be changed.
Total Neighbors Entries Added:
The total neighbors entries added be received.
Total Neighbors Entries Deleted:
The total neighbors entries deleted be received.
Total Neighbors Entries Dropped:
The total neighbors entries dropped be received.
Total Neighbors Entries Aged Out:
The total neighbors entries aged out be received.
Local port:
Show the local port on the switch.
