KTI Networks KGS-2416 User Manual

Page 70

Text mode
Original mode

This is used to enable or disable if a port is a member of the new added
VLAN, “Enable” means it is a member of the VLAN. Just tick the check
box (

;)

beside the port x to enable it.

Add new VLAN:

Please click on to create a new Tag-based VLAN.
Input the VLAN name as well as VID, configure the SYM-VLAN function
and choose the member by ticking the check box beside the port No.,
then, press the button to have the setting taken effect.

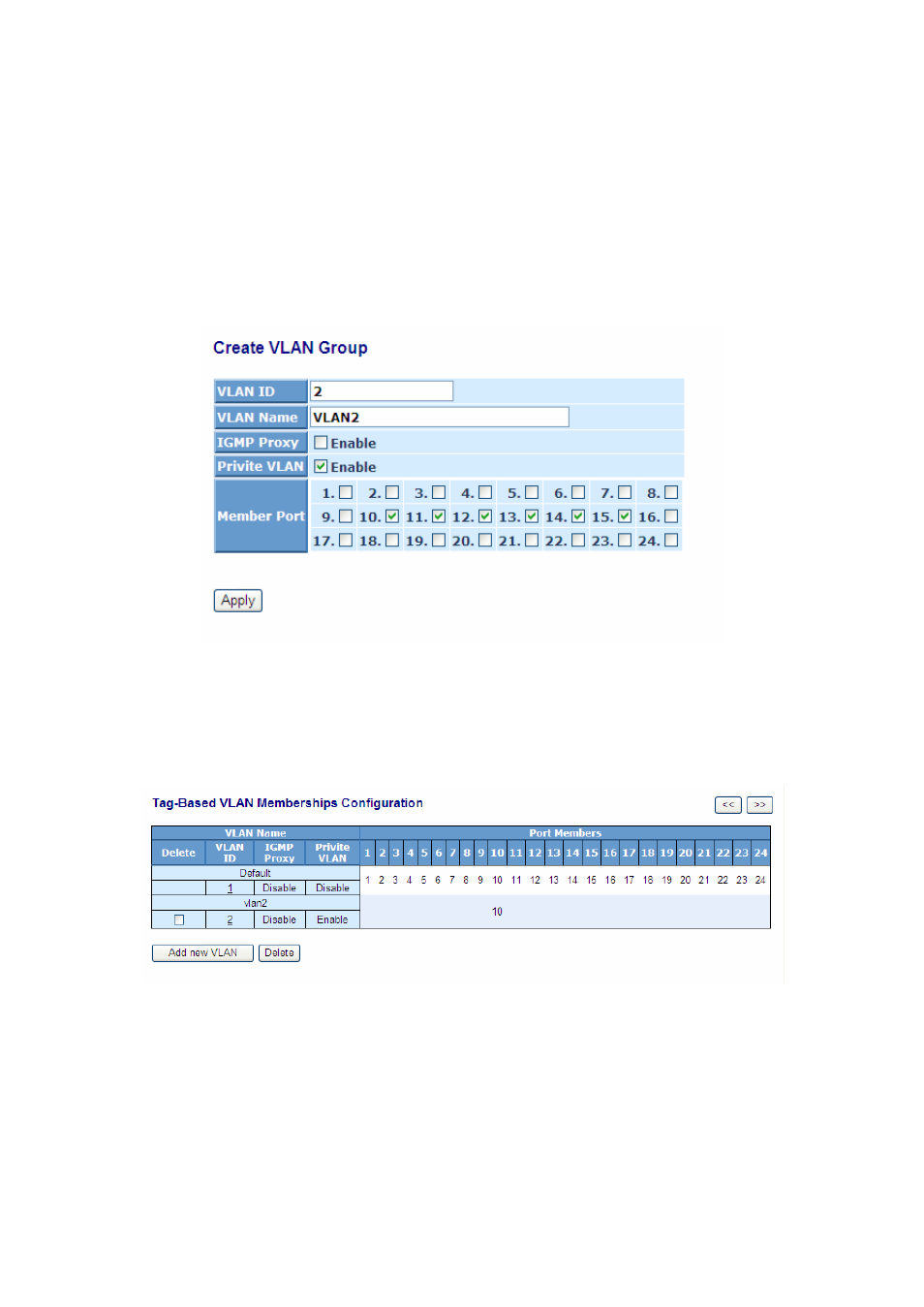

Fig. 3-19

Delete Group:

Just press the button to remove the selected group entry from
the Tag-based group table.

Fig. 3-20

Note: If you need use PVLAN( Private VLAN) function on Switch then you

need follow up the process as below:

a. Create a VLAN as primary VLAN and the VLAN ID is 2 and evokes the

Private VLAN to enable Private VLAN service.

b. Assign port member to the VLAN2
