3-15-7 Group Allow
Function name:
Group Allow
Function description:
The Group Allow function allows the IGMP Snooping to set up the IP multicast
table based on user’s specific conditions. IGMP report packets that meet the
items you set up will be joined or formed the multicast group.

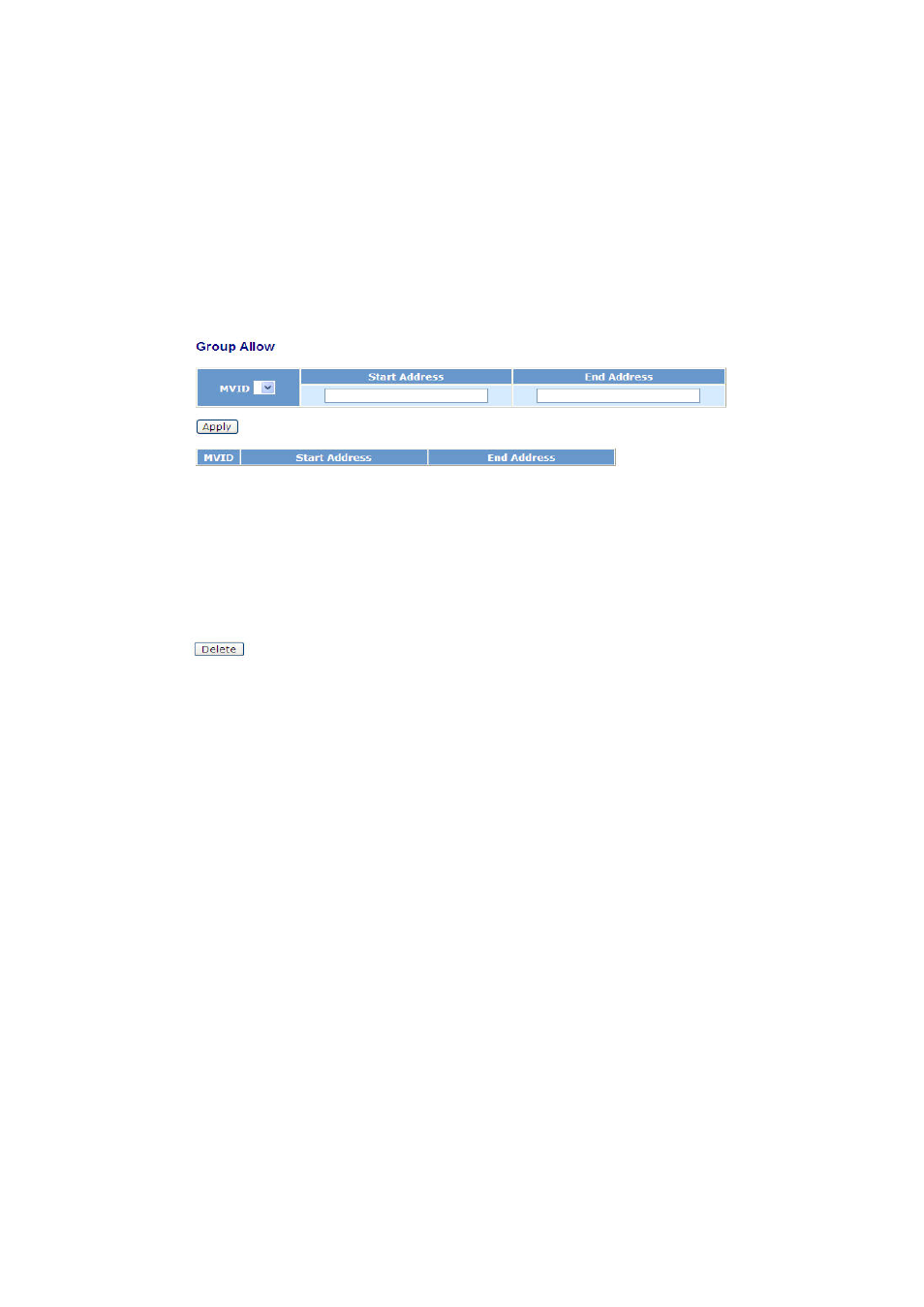

Fig. 3-163-3 Group Allow
Parameter description:
MVID:
The switch supports two kinds of options for managed valid VLAN VID,
including “Client” and “router”. Default is “disable”. When you choose
“Custom”, you can fill in VID number. The valid VID range is 1~4094.
(Start Address to End Address)IP Range:
The switch supports two kinds of options for managed valid IP range; you
can assign effective IP range. The valid range is
224.0.0.0~239.255.255.255.
Add:
A new entry of allowed group configuration can be created after the
parameters as mentioned above had been setup and then press
button.
Edit:
The existed entry also can be modified after pressing button.
Delete:
Remove the existed entry of allowed group configuration from the allowed group.
