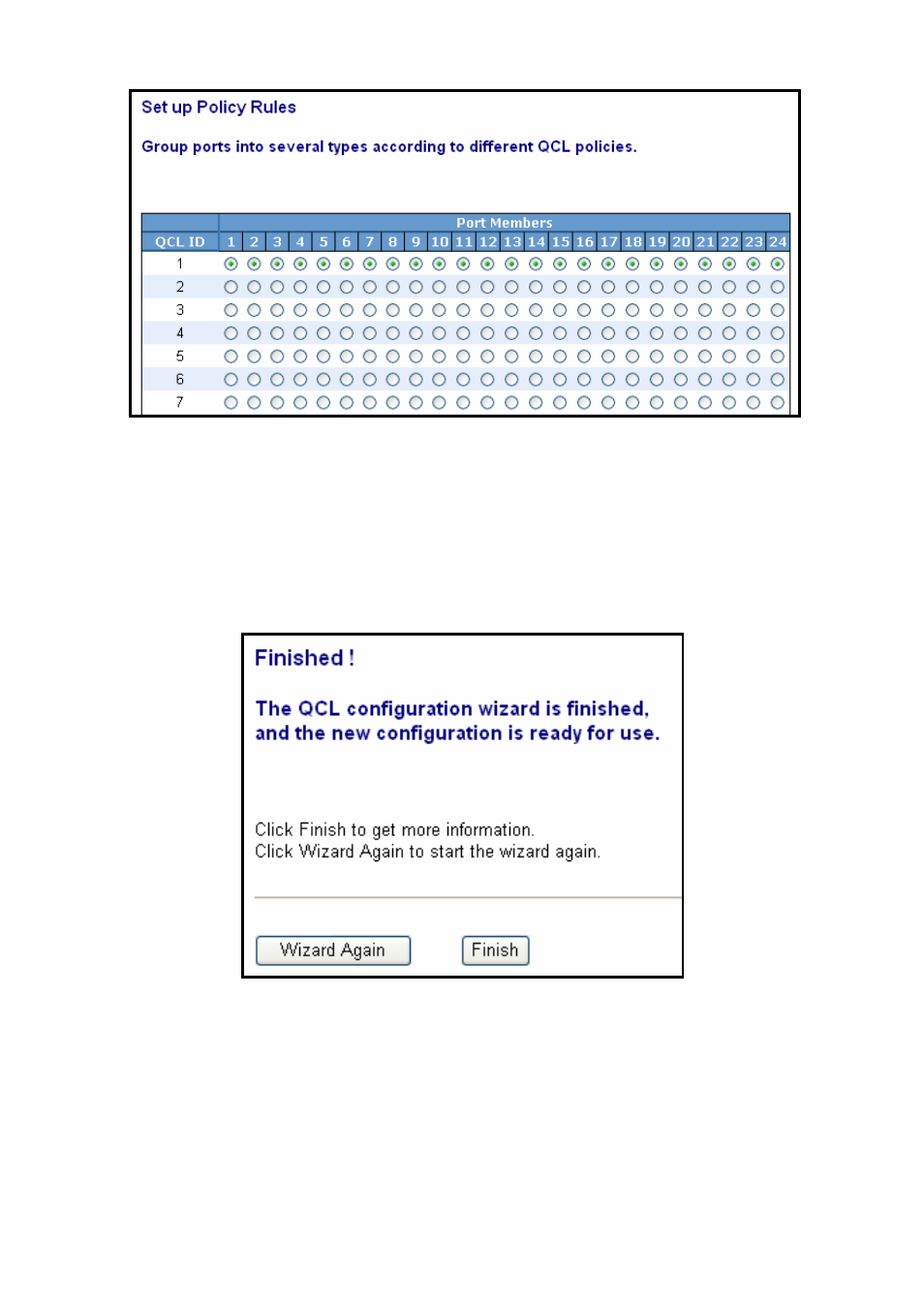

Fig. 3-46

Set up Port Policies

Parameter description:

QCL ID:

QoS Control List (QCL): 1~24

Port Member:

Port Member: 1~24

Fig. 3-47

Set up Port Policies

Parameter description:

Wizard Again:

Click on the , back to QCL Configuration Wizard.

Finish:

When you click on <Finish>, the parameters will be set according to the
wizard configuration and shown on the screen, then ask you to click on
for changed parameters confirmation.
