3-13-3 Instance View


Function name:

MSTP Instance Config

Function description:

Providing an MST instance table which include information(vlan membership
of a MSTI ) of all spanning instances provisioned in the particular MST region
which the bridge belongs to. Through this table, additional MSTP configuration
data can be applied and MSTP status can be retrieved.

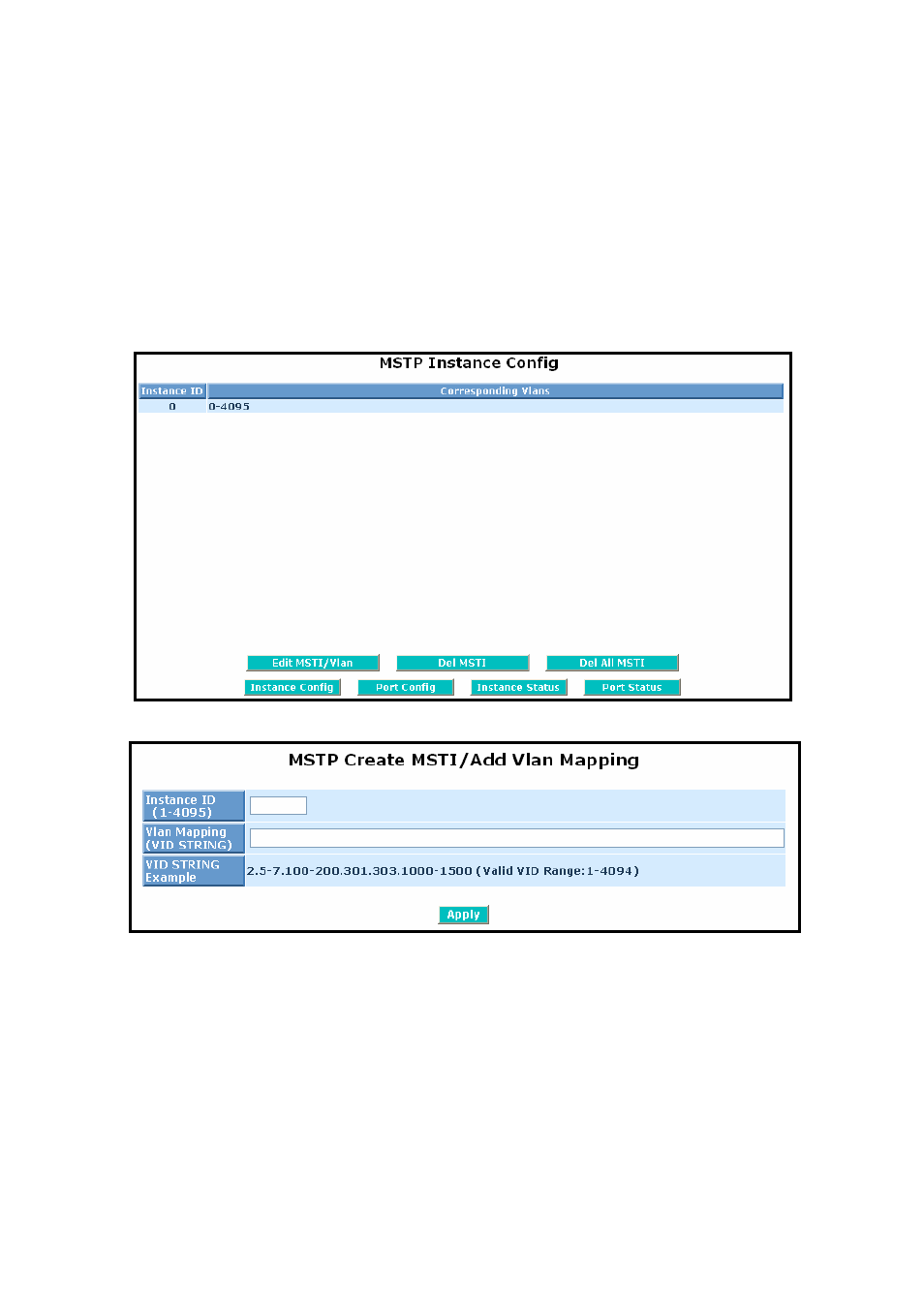

Fig. 3-155 MSTP Instance Config

Fig. 3-156

Edit MSTI / Vlan

Parameter description:

Instance ID:

Every spanning tree instance need to have a unique instance ID within
0~4095. Instance 0 (CIST) always exists and can not be deleted.
Additional spanning instances (MSTIs) can be added or deleted. At least
one vlan must be provisioned for an MSTI to declare the need for the
MSTI to be existent.

Corresponding Vlans: (0-4095)
