149
3-9. IP MAC Binding
The IP network layer uses a four-byte address. The Ethernet link layer uses
a six-byte MAC address. Binding these two address types together allows the
transmission of data between the layers. The primary purpose of IP-MAC binding is
to restrict the access to a switch to a number of authorized users. Only the
authorized client can access the Switch’s port by checking the pair of IP-MAC
Addresses and port number with the pre-configured database. If an unauthorized
user tries to access an IP-MAC binding enabled port, the system will block the
access by dropping its packet.
3-9-1.IP MAC Binding Configuration
Function name:
IP MAC Binding Configuration
Function description:
The switch has IP-MAC Binding table. The maximum number of IP-MAC
binding table is 1024 entries. The creation of authorized users can be manually. The
function is global, this means a user can enable or disable the function for all ports
on the switch.

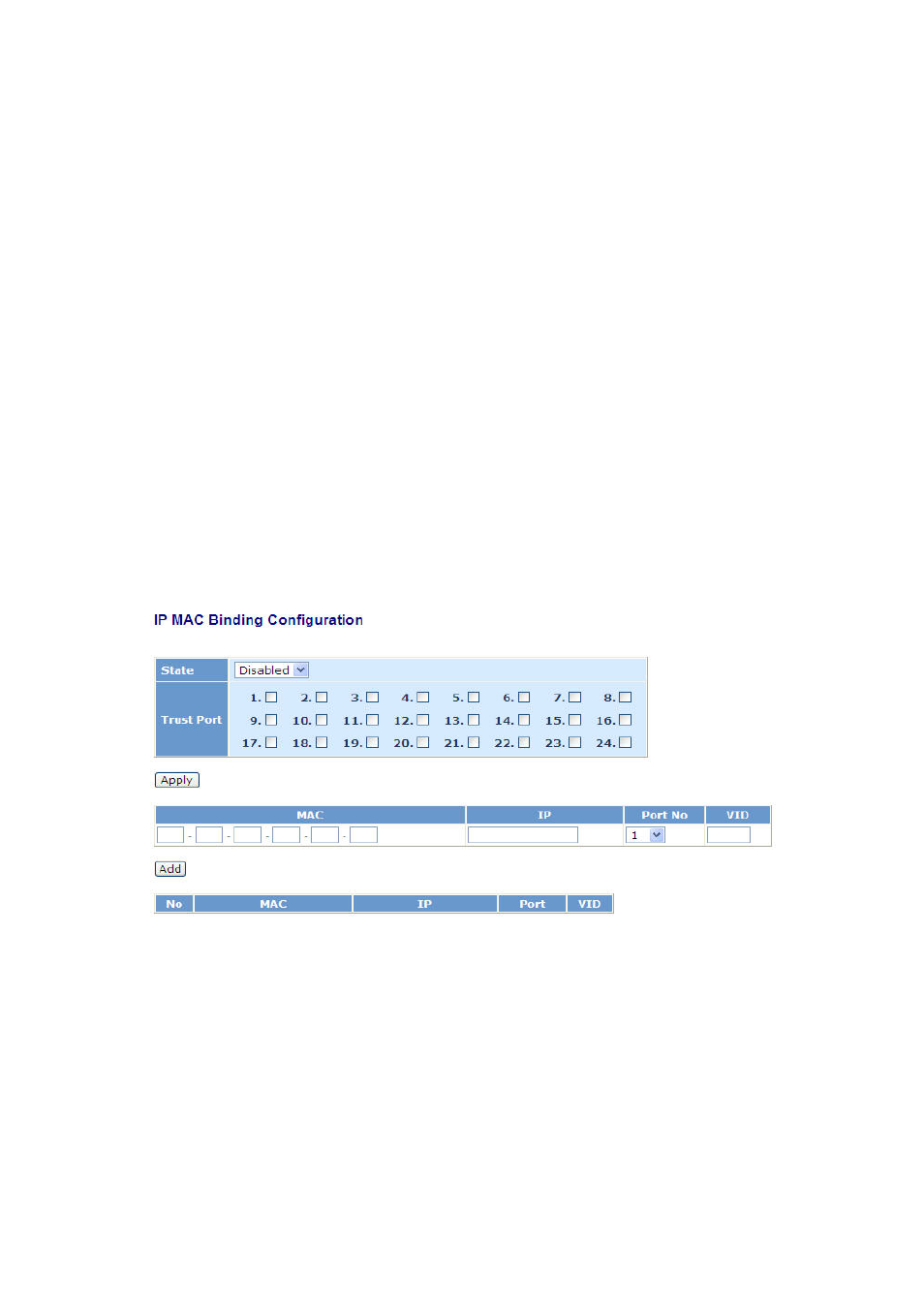

Fig. 3-142 IP MAC Binding Configuration
Parameters description:
State:
Disabled / Enabled
Trust Port:
To evoke the port which you want to enable the IP MAC binding service..
