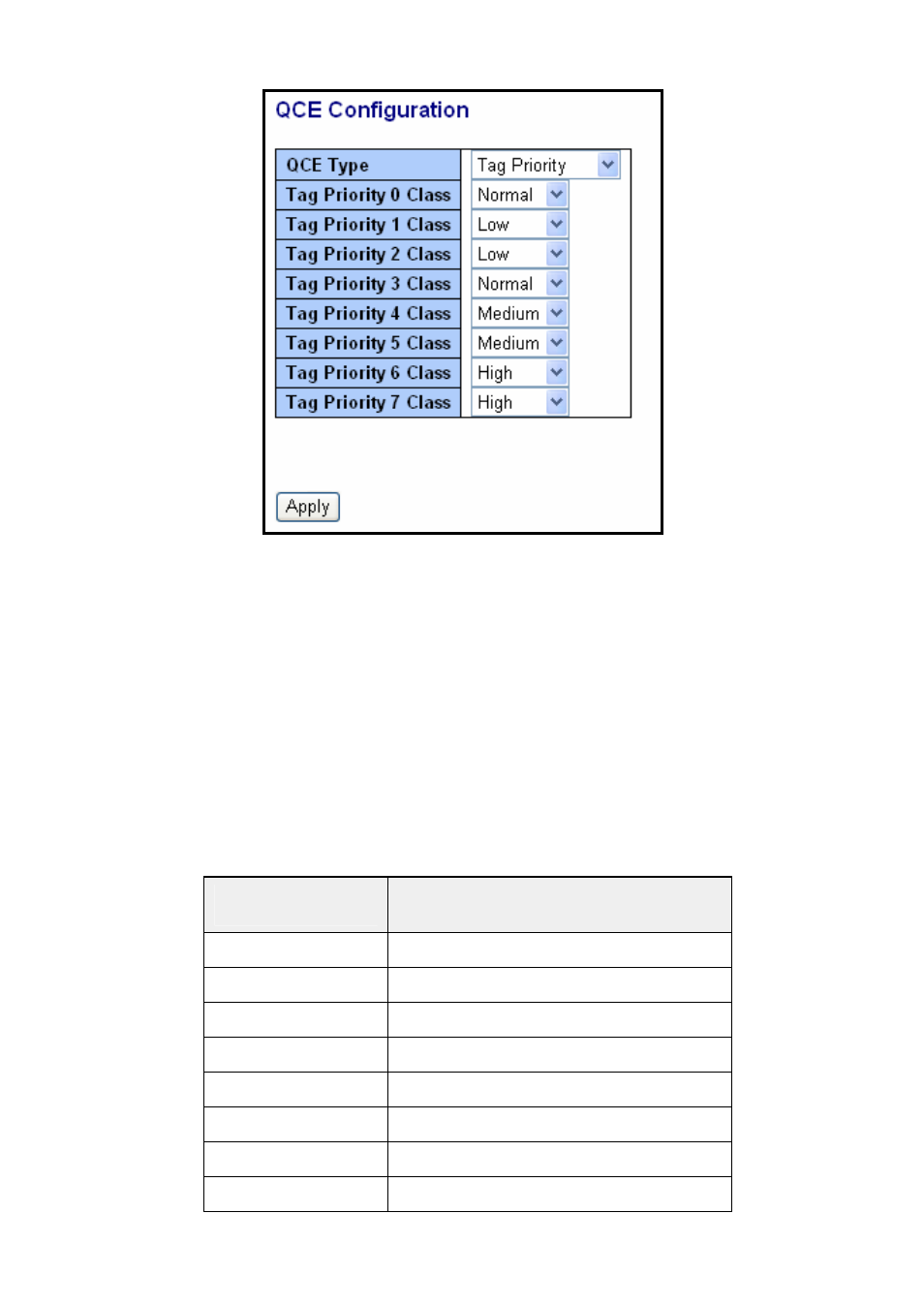

Fig. 3-42
Parameter description:
QCL#:
QCL number : 1~24
QCE Type:
Ethernet Type / VLAN ID / UDP/TCP Port / DSCP / ToS / Tag Priority
Ethernet Type Value:
The configurable range is 0x600~0xFFFF. Well known protocols already
assigned Ether Type values. The commonly used values in the Ether
Type field and corresponding protocols are listed below:
Ether type
(Hexadecimal)
Protocol
0x0800 IP, Internet Protocol
0x0801 X.75 Internet
0x0802 NBS Internet
0x0803 ECMA Internet
0x0804 Chaos net
0x0805 X.25 Level 3
0x0806 ARP, Address Resolution Protocol.
0x0808 Frame Relay ARP [RFC1701]
