Chapter 2
Installing the Sun Fire V100 Server Into a Rack
11
5. Move the brackets so that the studs are in suitable slots and tighten the nuts.
6. Fasten the mounting slides to the rack using the screws supplied.
For the Sun StorEdge 72-inch rack, refer to
and
. Leave the
screws slightly loose to allow adjustment when you slide the server into the rack.
For a standard 19-inch rack, refer to
. Leave the screws slightly loose to
allow adjustment when you slide the server into the rack.

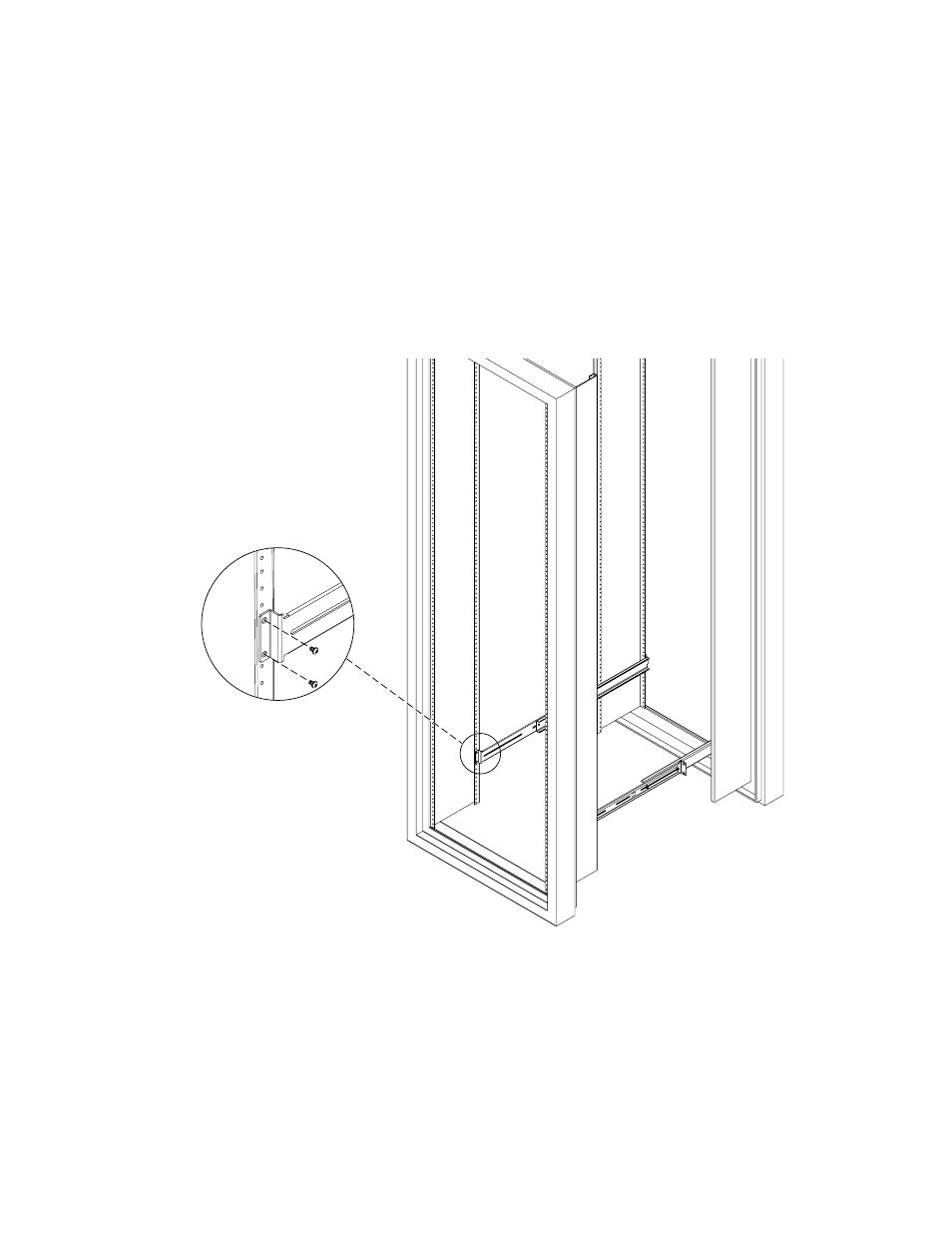

FIGURE 2-4
Fastening the Slide Mounts to a Sun StorEdge 72-inch Tall Rack – Rear View
(Side Panels Removed for Clarity)
