Sun Microsystems Sun Fire V100 User Manual
Page 28

10
Sun Fire V100 Server User’s Guide • December 2001
■
For a standard 19-inch wide rack, the double-angled ear (A) must be to the front
(see
).

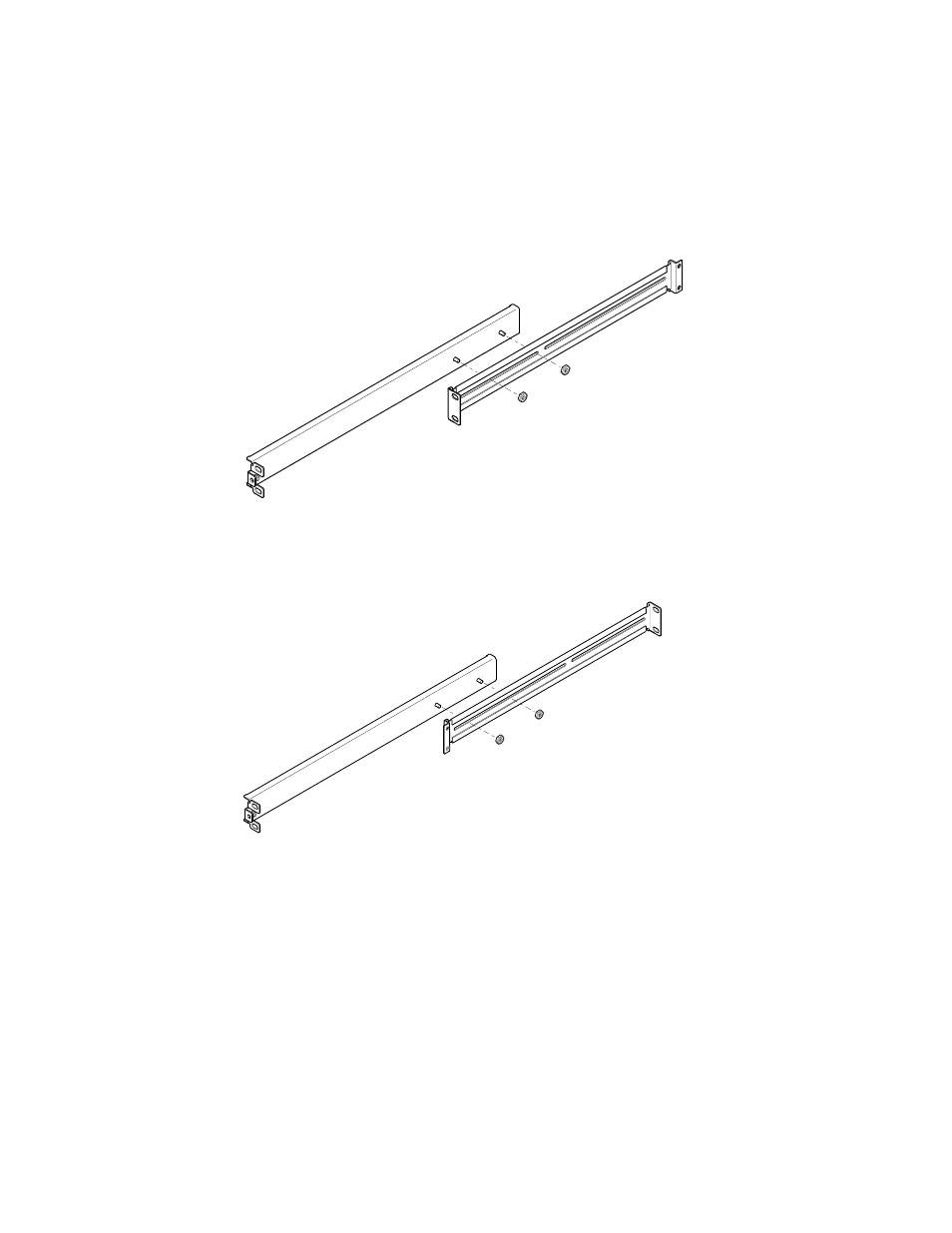

FIGURE 2-2
Positioning the Slide Mounts for a Sun StorEdge 72-Inch Tall Rack
FIGURE 2-3
Positioning the Slide Mounts for a Standard 19-Inch Wide Rack
2. Loosely screw the two parts of the slide mounts together using the M4 nuts
supplied.
3. Measure the distance between the front and back posts of your rack.
4. Adjust the slide mounts so that the distance between the front and back mounting
ears is approximately the distance between the front and back posts of the rack.
A
A
