3.2. Detailed Wiring Instructions
3.2.2. Connecting Audio
This product can record audio when audio devices are connected to the audio inputs.

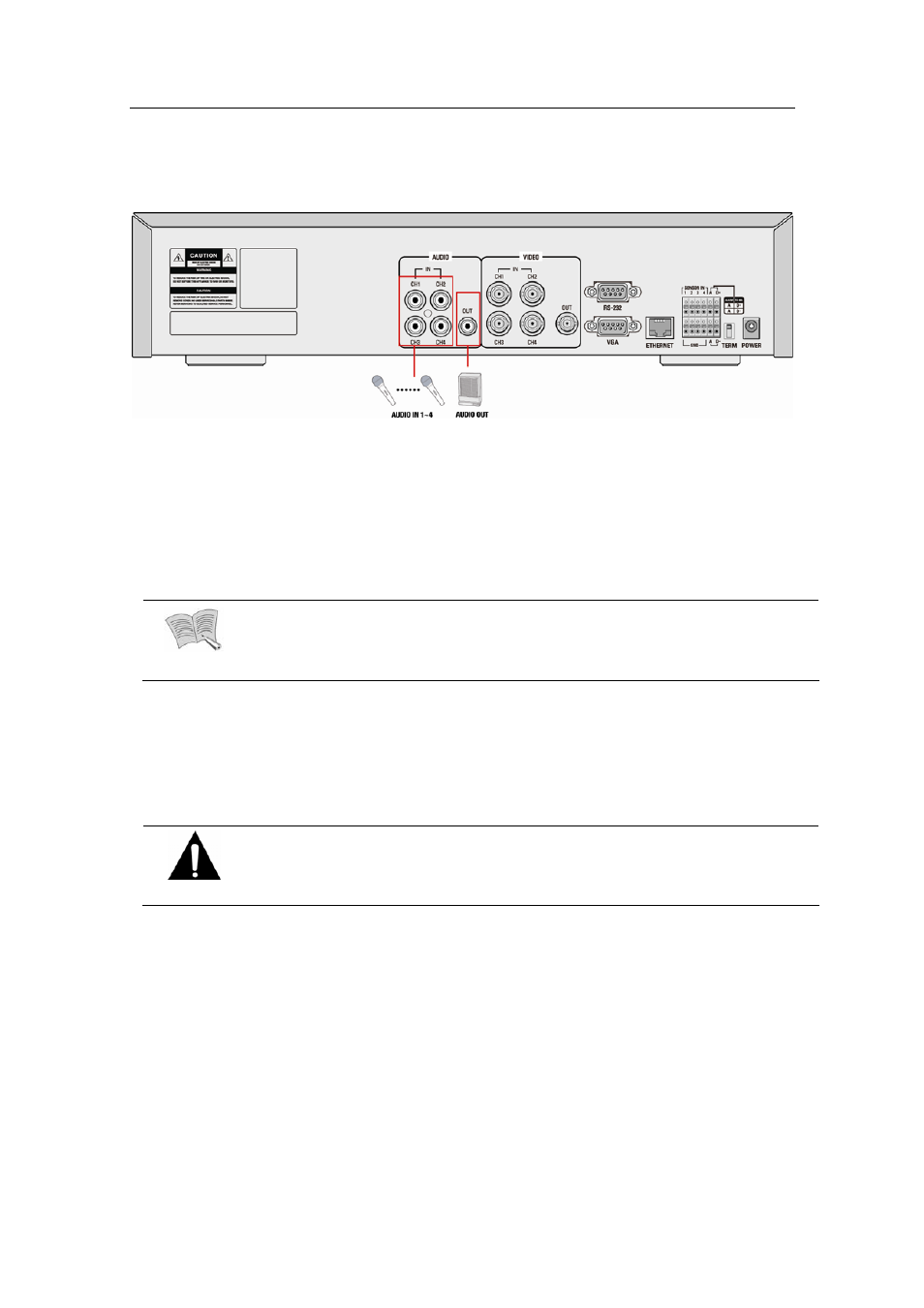

[The SVR-470 & Audio Device Connection]
€ Audio Input
Connect a RCA audio input terminal (mic‐equipped camera) with the AUDIO IN terminal on the back of
the product. (Compatible with any mic and speaker model. )
Note
To activate audio input, turn [ON] the [Recording Audio] option at the Settings →
Record Setup → Detail Setup menu.
€ Audio Output
Connect an RCA audio output terminal (speaker‐equipped monitor, and etc.) with the AUDIO OUT
terminal on the back of the product .
Caution
Audio may skip if it is recorded in 4CH and played on 4 split screens. If this happens,
change the screen mode to Full Screen.
3.2.3. Monitor
To output video feed from a camera to a monitor, connect the monitor to the VGA or VIDEO OUTPUT
terminal on the back of this product using a VGA or BNC cable . 2 monitor output terminals (1 BNC and 1
VGA) are available and they can be used simultaneously .
Optionally, you can simply use the 3.5" LCD monitor on the front panel of this product for video output.
