MuxOneNAND2G(KFM2G16Q2A-DEBx)
- 162 -
FLASH MEMORY
MuxOneNAND4G(KFN4G16Q2A-DEBx)

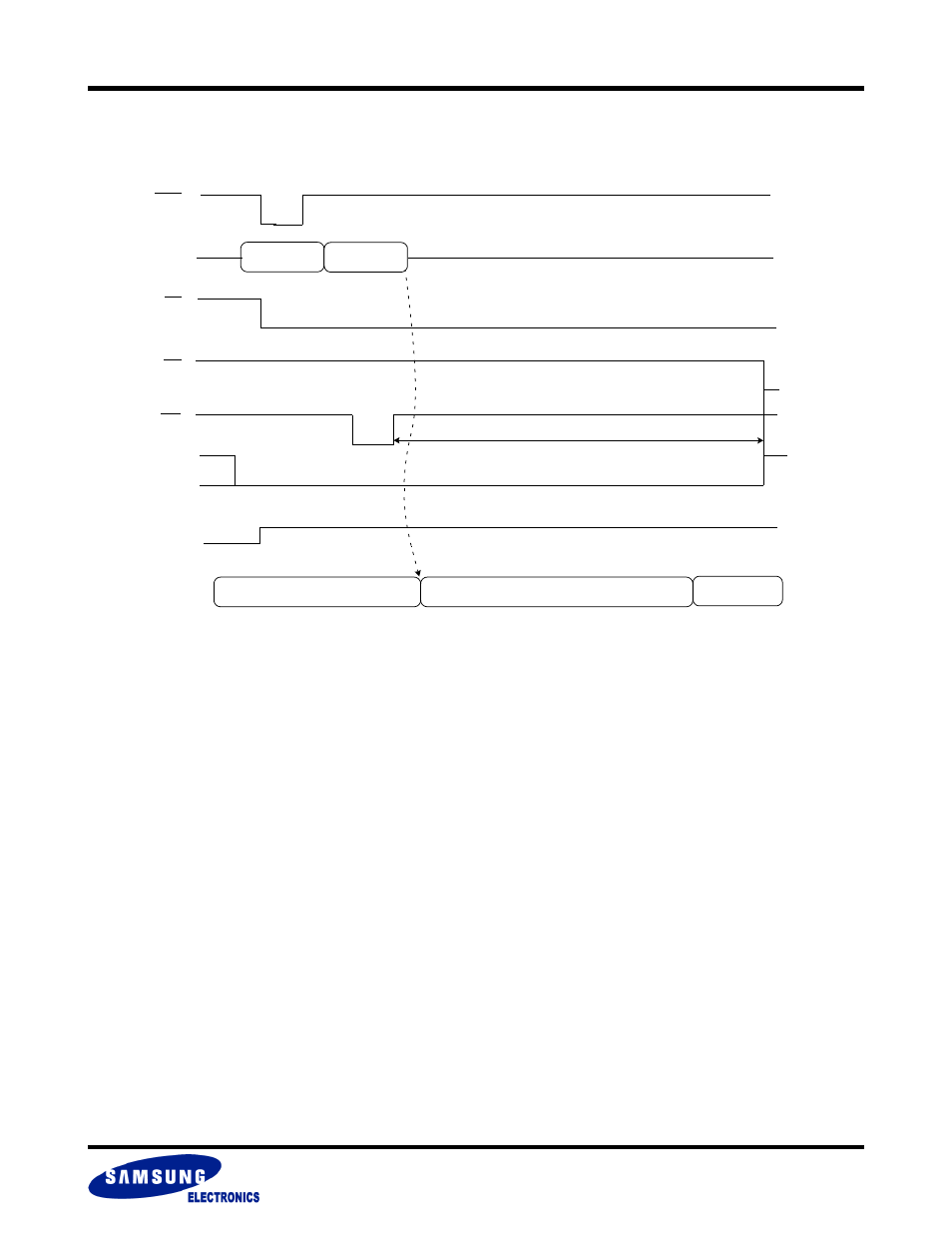

6.19 Hot Reset Timing
See AC Characteristics Tables 5.6.
NOTE :
1) Internal reset operation means that the device initializes internal registers and makes output signals go to default status and bufferRAM data are kept
unchanged after Warm/Hot reset operations.
2) Reset command : Command based reset or Register based reset.
3) BP(Boot Partition): BootRAM area [0000h~01FFh, 8000h~800Fh]
4) 00F0h for BP, and 00F3h for F220h
AVD
BP(Note 3)
ADQi
00F0h
CE
or F220h or 00F3h
INT
WE
OE
t Ready 2
bit
RDY
Operation or Idle MuxOneNAND reset Idle
MuxOneNAND
Operation
High-Z
