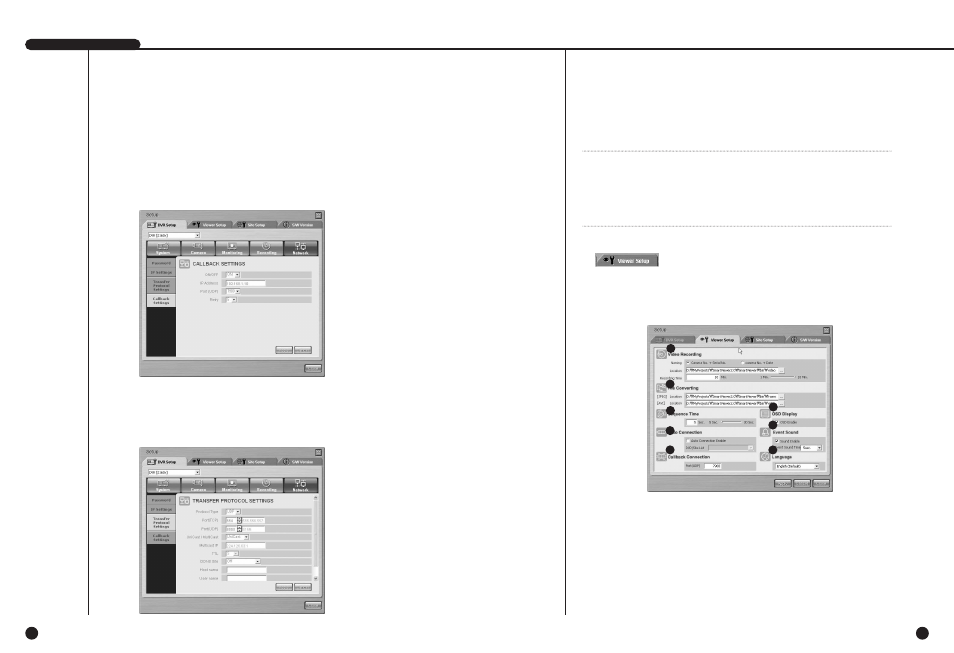

● Callback

- Sets up the Callback functions of SHR- 4081N/P.
- Sets up the IP address and port to which SmartViewer was installed to deliver

the Callback message in the event of Alarm, Motion Detection, or Video Loss.
Sets up the value for retrial in the event of message delivery failure.

● Translation Protocol

- Changes the Transmission Protocol setting values. The protocol supports TCP/IP

and UDP(Unicast, Multicast). Control Port(TCP/IP) and Port(UDP) to change the
connection port. Multicast IP or TTL will be used for UDP(Multicast).

Note

- SHR-4081N/P uses 4 PORTs for TCP connection.
- A PORT number is flexible and 4 numbers in a row will be changed in all.

(554,555,556,557

➝ 558,559,560,561)

- You shall allocate the above ports for SHR-4081N/P if you want to compose a

network by IP Router.

Viewer Setup

- Click the [Viewer Setup] for Viewer Setup.
- Viewer Setup sets up various kinds of items related to Smart Viewer motions.
- Viewer Setup is consisted of 7 items : Video Recording, File Converting,

Sequence Time, OSD Display, Auto Connection, Callback Connection, and
Language.

! This is used for the setup of information necessary for saving the video data in

display in .dvr file format while you are connected to SHR-4081N/P.

@ This is used for the setup of information necessary for converting the file saved

in your PC in .dvr file format into JPEG.

# This is used for the setup of information necessary for Screen change Mode.
$ This is used for the setup of information on OSD display for Smart Viewer.
% This determines whether Smart Viewer shall be automatically connected to

DVR(SHR-4081N/P) or Site when it begins running.

^ This is a menu item that is designed to set the alarming time when it receives

an event message such as an alarm, motion and/or Video loss.

& Selects the port to allow the connection of Callback.

* This item is for the language setup.
