SHR-4160N/P USER’S MANUAL

2-7

English

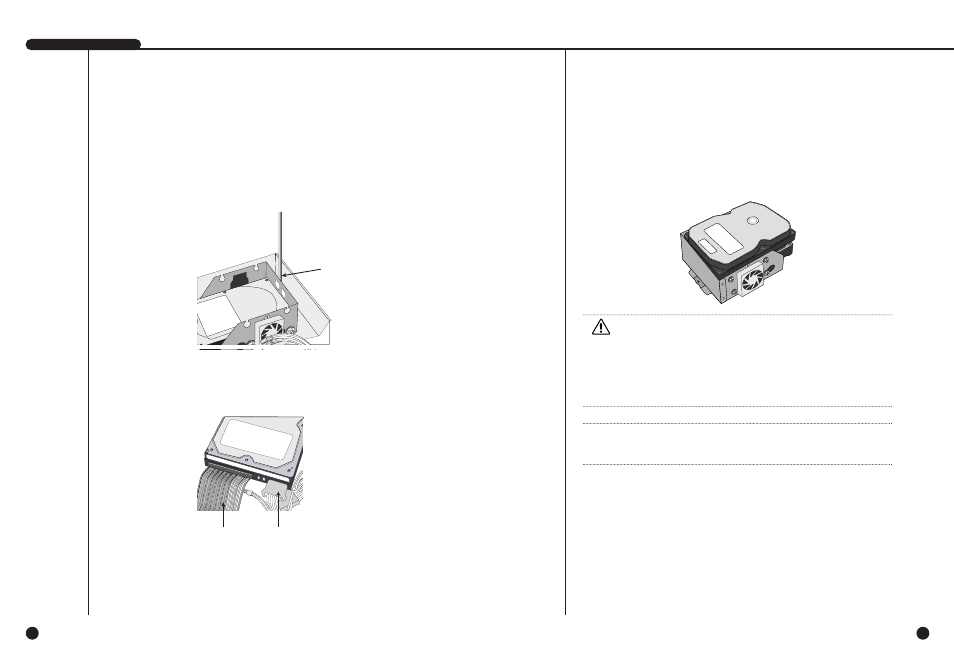

7. Check if BRACKET-HDD has been fixed to the product and connect both the power

supply cable and the signal transmission cable (IDE CABLE) to the HDD.

Signal Transmission

Cable (IDE Cable)

Power Supply Cable

6. Restore HDD installed BRACKET-HDD.

(Assembly shall be done in the reverse procedure of disassembly as follows. Align

the 5 fixing points at the bottom with the BRACKET-HDD fixing holes respectively

and push BRACKET-HDD out of the product to align the screw fixing holes. Then,

tighten the screws firmly.)

SHR-4081N/P USER’S MANUAL

8. Check the connector, wiring, and cable fixing condition inside the product and close

the cover.

9. Tighten cover-fixing screws. (5 points on both sides and 1 point in the back side)

✻ You can apply 2 HDDs to each BRACKET-HDD as shown in the figure.

Attention

For HDD addition, please select the same HDD with the existing HDD fixed to the
product as far as possible. This product can accept 4 more HDDs, 2 at Primary Slot
and 2 at Secondary Slot respectively. Both HDDs attached to Primary Slot and
Secondary Slot shall be set to Master and Slave respectively. Refer to User’s Manual
for Master or Slave Jumper Setting.
In the event of only one HDD installation, it shall be inserted into the Primary slot.

Note

Refer to Appendix 2 to see which HDD specifications are supplied.
