English English 5-22

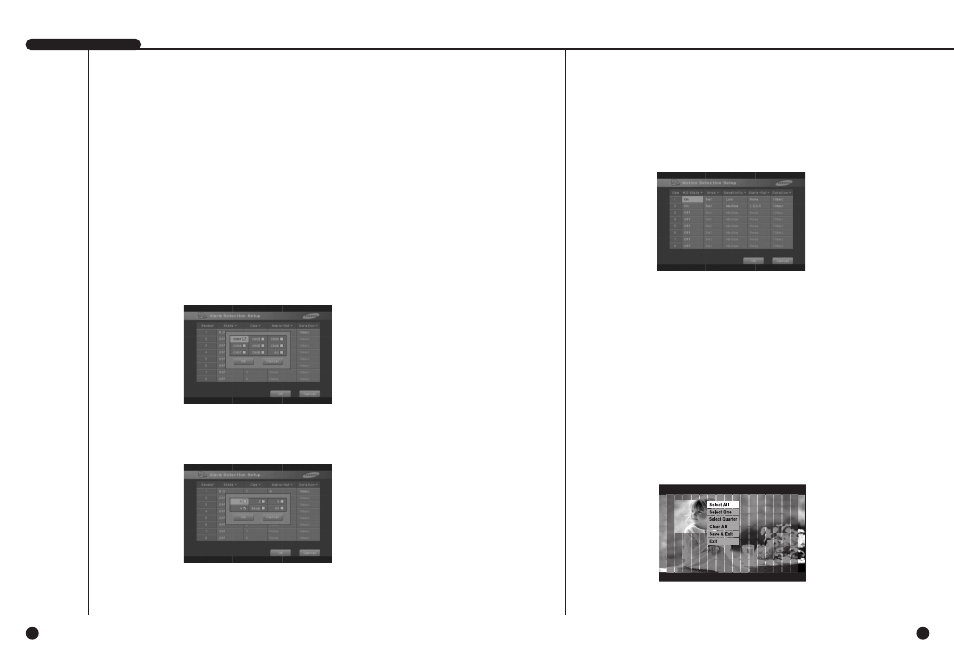

Alarm Detection Setup
● Sensor State
Off : Sensor does not operate.
① N.O(Normal Open) Sensor : Sensor remains open all the time and if closed,
an alarm will be issued. (A Contact)
➁ N.C(Normal Close) Sensor : Sensor remains closed all the time and if open,
an alarm will be issued. ( B Contact)
● Cam
Determines a camera which will synchronize with the current sensor.
The default is currently set to the sensor number. A sensor shall be synchronized
with at least a camera. Multi-synchronization is possible.
SHR-4081N/P USER’S MANUAL
5-21
● Alarm-Out
Arranges Alarm-Out when Alarm Sensor sounds.
At this moment, this supports 5 Alarm Outs. Choose an alarm-out that you want to
synchronize with the current sensor. Multi-choice is possible.
● Duration
Determines Alarm-Out Duration. Alarm-Out continues for the determined duration.
Off / 3sec / 5sec / 10sec / 20sec / 30sec
Motion Detection Setup
● M.D State
Off : Motion Detection does not operate
On : Motion Detection starts operation.
● Area
Select the Motion Detection zone. It is composed of 45x40(NTSC) / 45x48(PAL)
sized Block. You are forbidden to determine 4 block rows(Up/Down/Left/Right) to
allow them to be
displayed in all monitors.
❿ Select All : Selects the whole area.
❿ Select One : Selects a block every time. Selection is done by a toggle system.
❿ Select Quarter : Split the whole area into 4 pieces, which enables selecting a
fourth of the whole area.
❿ Clear All : Cancels the whole area.
❿ Save & Exit : Saves and exits.
❿ Exit : Exits without saving.
