English English 10-16
SHR-4081N/P USER’S MANUAL
10-15

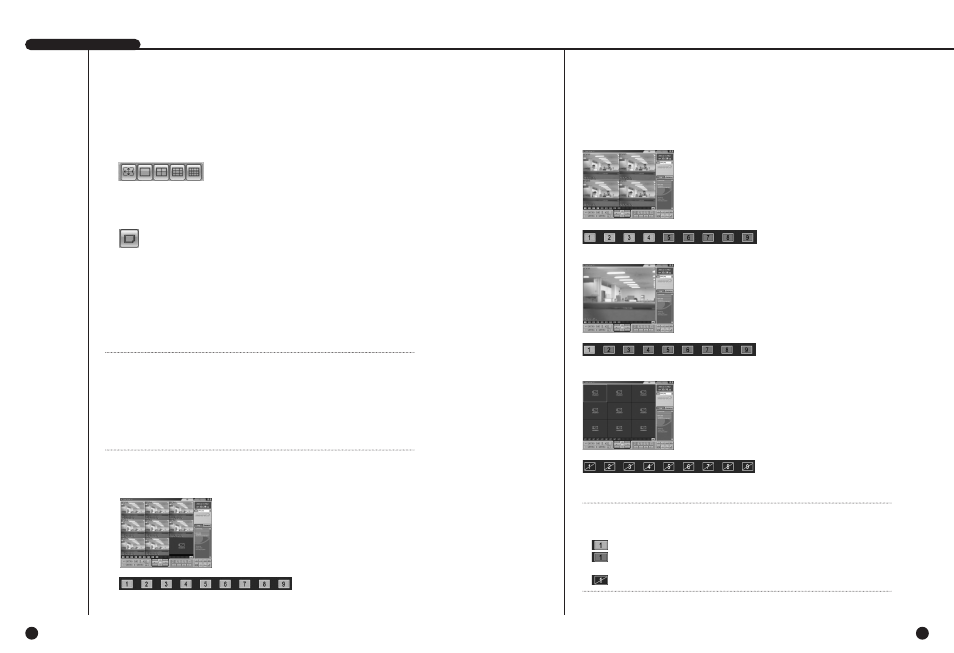

● Monitoring Screen Condition Information / Selection Button
- Displays the Split or Monitoring condition of the screen in play.
: During monitoring in Nine-split Mode
: During monitoring in Quad Mode
: During monitoring in Single Mode
: Camera Off
● Screen Split Selection Button
- Full Screen / Single / Quad / Nine-Split Mode
- You may change the Split Mode of the screen under monitoring.
● Sequence Mode Button
Note Note
If you connected with multi-DVRs(SHR-4081N/P) through a site, Sequence will operate as
follows.
- In Single Mode : DVR1:1CH
➝...➝ DVR1:8CH ➝ DVR2:1CH ➝...➝ DVR1:1CH
- In Quad Mode : DVR1:1,2,3,4CH ➝...➝ DVR1:1,2,3,4CH ➝ ...
- In Nine-Split Mode : DVR1:1,2,3,4,5,6,7,8CH ➝DVR2:1,2,3,4,5,6,7,8CH ➝...
- Changes the channel to be played at the preset interval.
- The sequence time interval setup follows the procedure of Setup Mode
➝
Viewer Setup.
- In Single Mode : 1 ➝ 2 ➝ 3 ➝ 4 ➝ 5 ➝ 6 ➝ 7 ➝ 8 ➝ 1 (CH)
- In Quad Mode : 1,2,3,4 ➝ 5,6,7,8 ➝ 1,2,3,4 (CH)
- In Nine-Split Mode : 1,2,3,4,5,6,7,8 ➝ 1,2,3,4,5,6,7,8,9 (CH)
Note Note
The figure in a screen icon indicates the screen position in SmartViewer.
: The orange icon indicates the current channel is connected to a camera.
: The gray icon indicates the channel is connected to a camera but not displayed
on the screen.
: The black icon with a diagonal line indicates no camera is connected.
