4.5.5 Integrated Peripherals Setup Defaults
This section describes I/O resources assignment for all of on-board peripheral devices.

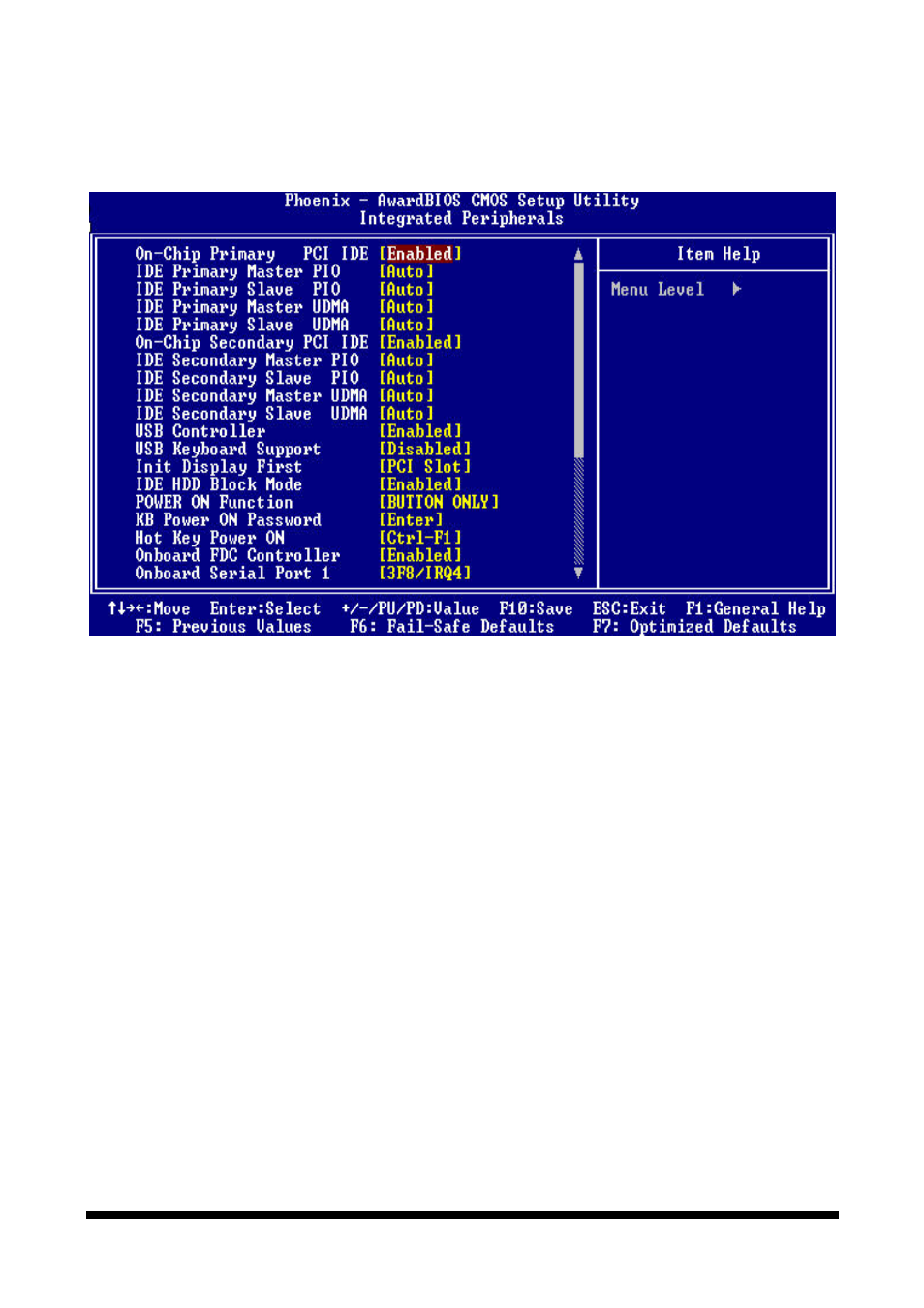

Figure 5: The Integrated Peripherals Features
4.5.5.1 On-Chip Primary/Secondary PCI IDE
Select “Enabled” to activate each on-board IDE channel separately, Select “Disabled”, if
you install an add-on IDE Control card.
The choice: Enable, Disable.
4.5.5.2 IDE Primary & Secondary Master/Slave PIO
These four PIO fields let you set a PIO mode (0-4) for each of four IDE devices. When
under "Auto" mode, the system automatically set the best mode for each device.
The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, and Mode 4.
4.5.5.3 IDE Primary & Secondary Master/Slave UDMA
When set to “Auto” mode, the system will detect if the hard drive supports Ultra DMA mode.
The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, and Mode 4.
