Intel ECB-862 User Manual
Page 16
ECB-862/862L
ECB-862/862L User’s Manual 5
2.3 Architecture
Overview

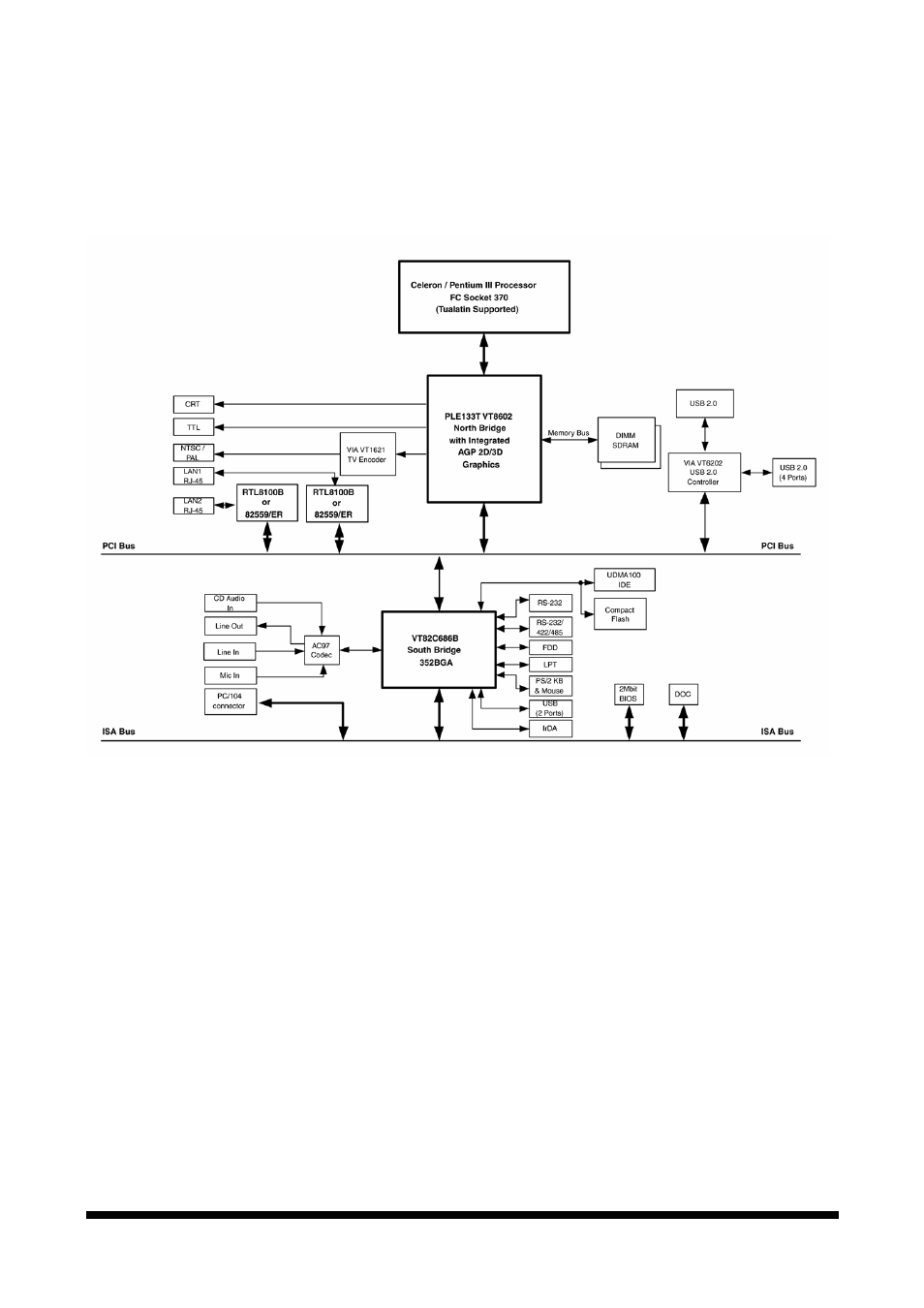

The following block diagram shows the architecture and main components of ECB-862.
The two key components on board are the VIA VT8602 North Bridge and VT82C686B
super South Bridge. These two devices provide the ISA and PCI bus to which all the major
components are attached.
The following sections provide detail information about the functions provided onboard.
