52 Chapter 4: Installing the Matrox 4Sight-M motherboard in a custom chassis

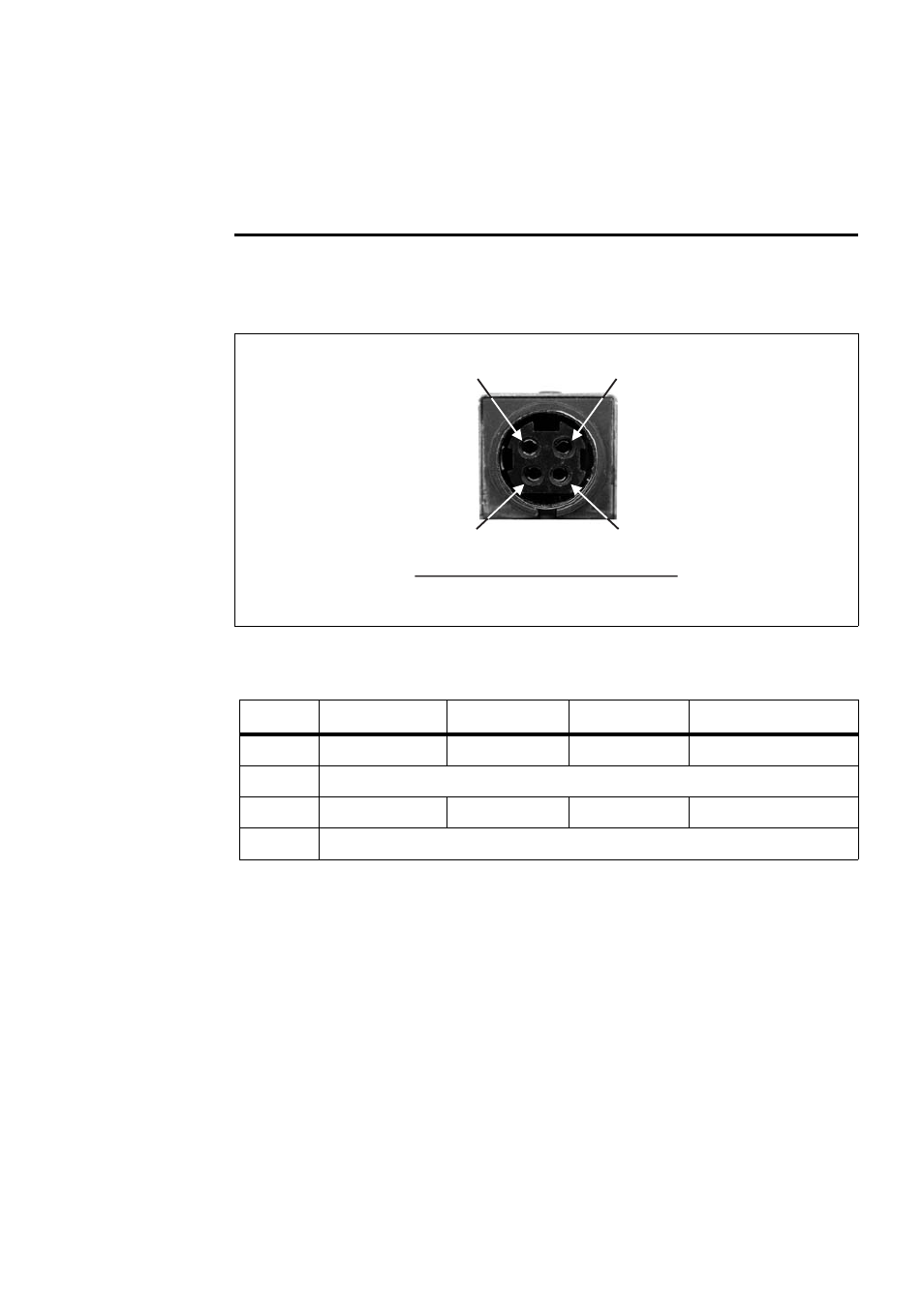

Custom power supply
The power connector on the stand-alone Matrox 4Sight-M motherboard is a 4-pin
locking connector.
Voltage requirements for each pin are given below.
Pin
Power supply (V)
Max. voltage (V)
Min. voltage (V)
Maximum current
1
(A)
1.
The maximum current capacity of each pin is 7 A.
1
12-24
24
12
7
2
GROUND
3
12-24
24
12
7
4
GROUND
Rear of motherboard
Pin 1
Pin 2
Pin 3
Pin 4
