Pinouts of front panel connectors 117

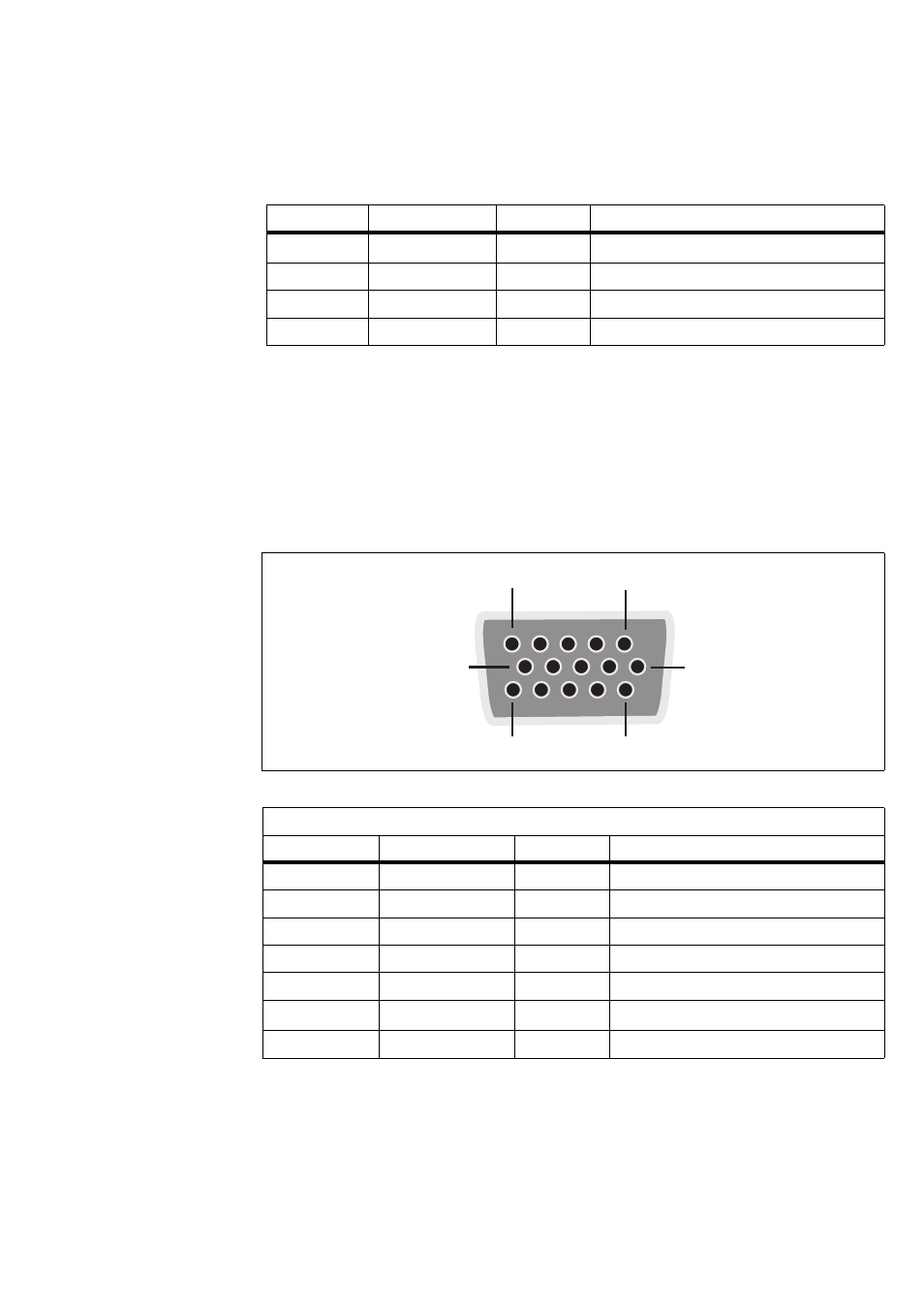

Analog VGA connector
The analog VGA connector is more specifically a 15-pin, D-SUB female
connector. The pinout is outlined in the following table.
• Operating voltage and maximum current: 5 V, 0.75 A.
• Auto-resettable fuse: Yes.
Pin
Signal
I/O
Description
1
VCC
O
Power, +5 V
dc
2
DATA-
I/O
Key Data- .
3
DATA+
I/O
Key Data+ .
4
GND
-
Ground.
High-resolution display configuration ("1")
Pin
Signal
I/O
Description
1
RED
O
Red.
2
GREEN
O
Green.
3
BLUE
O
Blue.
4
NC
-
Not connected.
5-8
GND
-
Ground.
9
+5V
O
+5 V
dc
10
GND
-
Ground.
1
5
15
11
10
6
