118 Appendix B: Technical reference

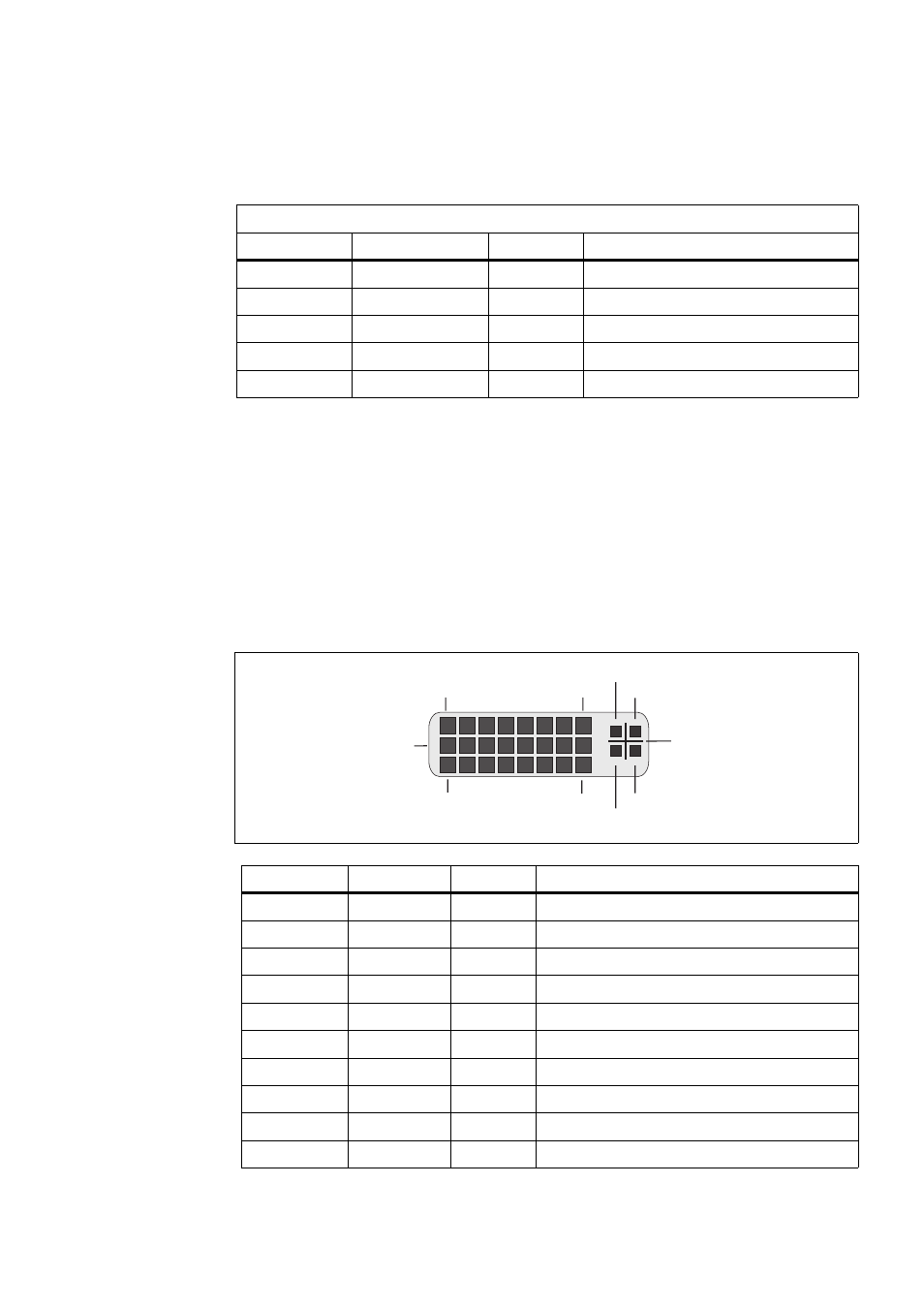

DVI-compliant digital VGA connector ("DVI-I")
The DVI-compliant digital VGA connector ("DVI-I") is more specifically a
29-pin female connector. 24 pins are reserved for digital output and 5 pins are
reserved for analog output. The connector’s pinout is outlined in the following
table.
• Output voltage and maximum current: 5 V, 0.75 A.
• Auto-resettable fuse: Yes.
11
NC
-
Not connected.
12
SDA
I/O
DDC serial data line.
13
HSYNC
O
Horizontal synchronization.
14
VSYNC
O
Vertical synchronization.
15
SCL
I/O
DDC data clock line.
Pin
Signal
I/O
Description
1
TX2-
O
Transmission Data Line 2- .
2
TX2+
O
Transmission Data Line 2+ .
3
GND
-
Ground.
4-5
NC
-
Not connected.
6
SCLK
I/O
DDC data clock line.
7
SDATA
I/O
DDC serial data line.
8
VSYNC
O
Vertical synchronization.
9
TX1-
O
Transmission Data Line 1- .
10
TX1+
O
Transmission Data Line 1+ .
11
GND
-
Ground.
High-resolution display configuration ("1")
Pin
Signal
I/O
Description
1
8
9
17
24
C1
C2
C3
C4
C5
