26 Chapter 2: Connecting peripherals to the unit
Connecting a high-resolution display device
To connect your high-resolution monitor(s):
1. Connect the first monitor to the top analog VGA connector (connector #1) on
the Matrox 4Sight-M unit. If your monitor has a DB-15 connector, use a standard
DB-15 to DB-15 cable. If your monitor has 5 BNC-type connectors, use a
standard DB-15 to 5-BNC cable. To connect your monitor with a DB-15 to
5-BNC, refer to steps 2 and 3. These cables are usually supplied with your monitor.

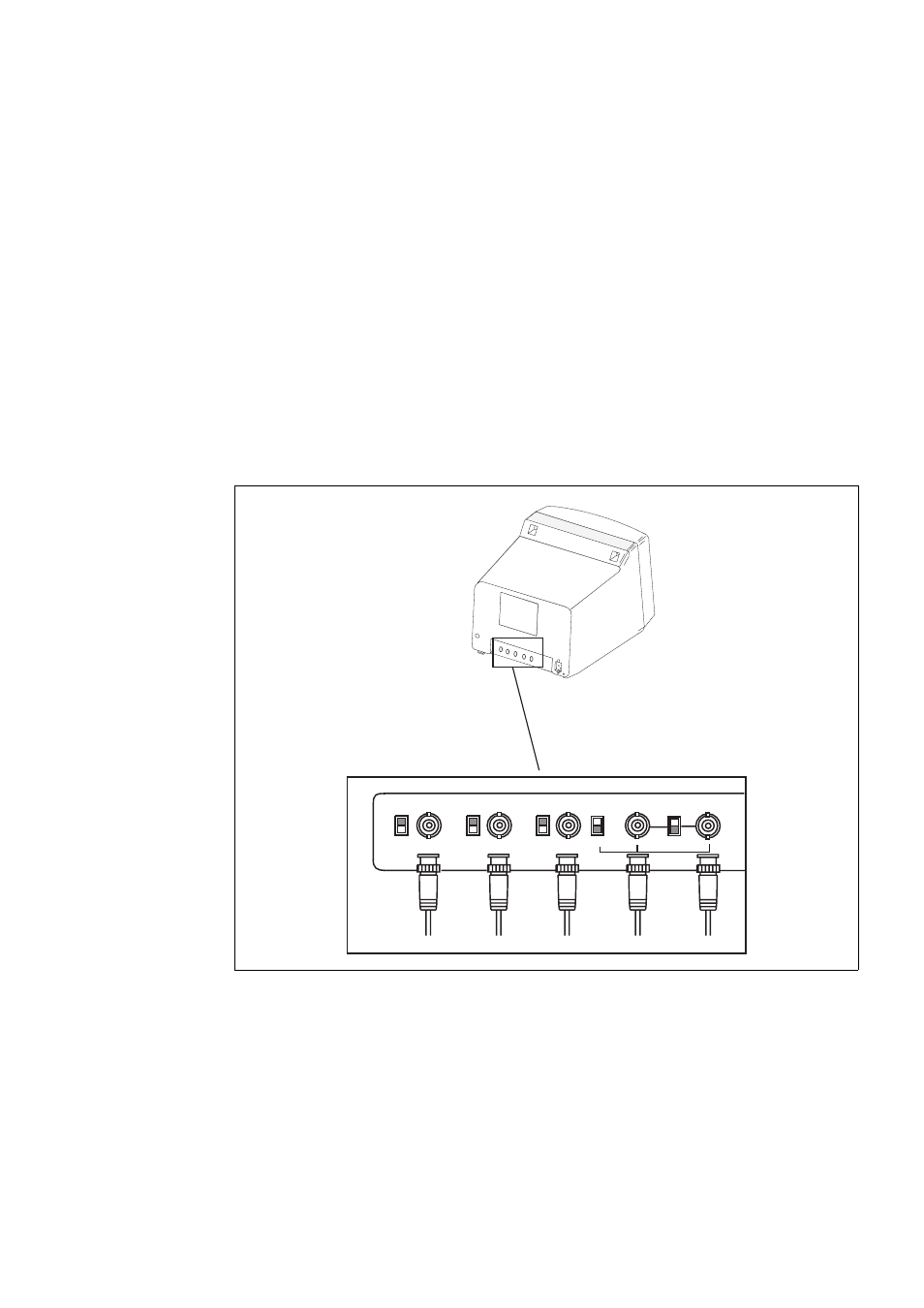

2. If your monitor has input impedance switches, set the switches for the red, green,
and blue inputs to 75 ohms, as shown in the illustration below.
3. Set the switches for the synchronization inputs according to your monitor’s
manual. In most cases, these switches should be set to high impedance and external
synchronization mode.
G
R
B
HSYNC
VSYNC
( B N C )
( B N C )
( B N C )
( B N C )
( B N C )
INT
EXT
75
75
75
75
RED
BLUE
GREEN
WHITE
or
GRAY
BLACK
