Video input connector ("Video in")

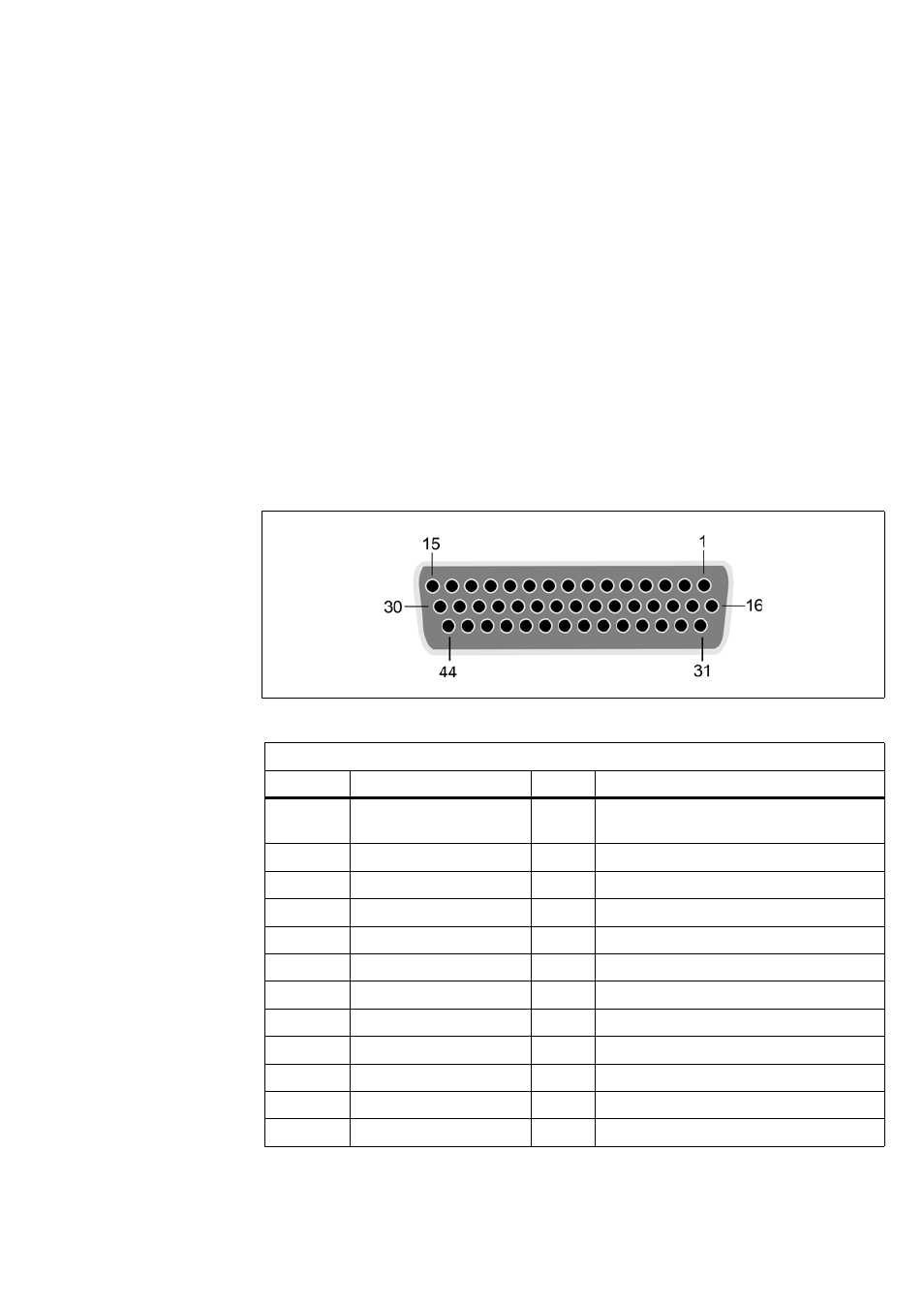

There is one video input connector ("Video in") on the back panel. The video
input connector is a 44-pin, DB-HD female connectors. The pinouts are outlined
in the following tables. The pinout of the video input connector depends on
whether the Matrox 4Sight-M motherboard hosts a Matrox Meteor-II /Standard,
/Multi-Channel, or /Camera Link frame grabber.
Important
Note the following about the power supply:
• The maximum current on a +12 V power supply is 0.75 A.
• Auto-resettable fuse: Yes.
Matrox Meteor-II
/Standard
Matrox Meteor-II /Standard
Pin
Signal
I/O
Description
1
DC_OUT
O
+12 V power supply. The DC_OUT signal is
protected with a 0.75 A auto-resettable fuse.
2
VID_IN12
I
Video input 12.
3-5
GND
-
Ground.
6-7
NC
-
Not connected.
8
USER2_OUT
O
User output.
9
USER2_IN
I
User input.
10
NC
-
Not connected.
11
VID_IN5
I
Video input 5.
12
NC
-
Not connected.
13
VID_IN3
I
Video input 3.
14
GND
-
Ground.
15
VID_IN1
I
Video input 1.
