i1000plus User’s Guide
72
Cigarette Lighter Adapter Operating Specifications
Operating voltage range: 10.8 - 33.0 Vdc.
Operating temperature range: -30°C to +60°C
Desktop Dual-Pocket Charger
The NTN1627 Desktop Dual-Pocket Charger charges Motorola authorized
batteries, as listed on page 69, for the i1000plus. To charge a battery, see
Figure 3.
Charging a Battery

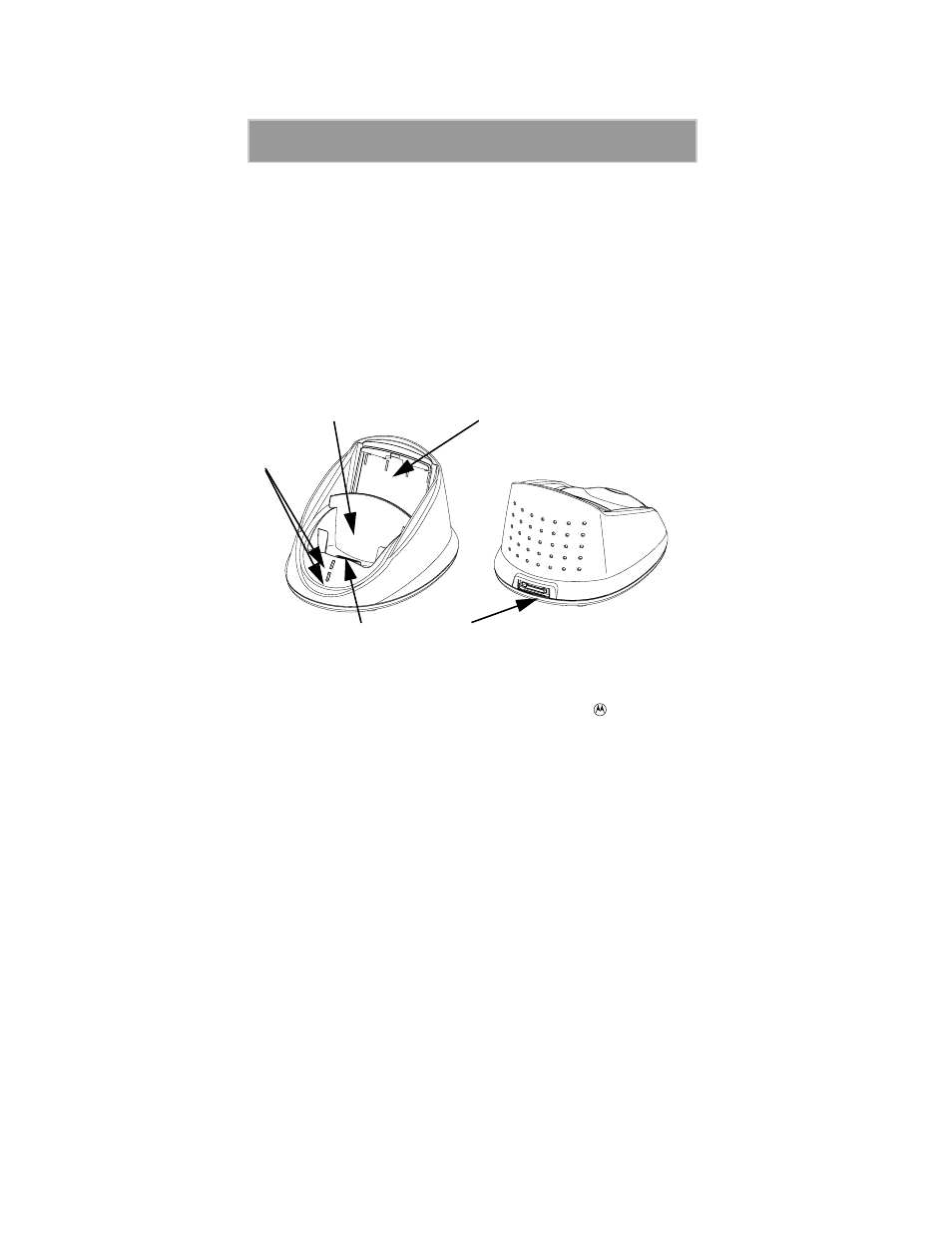

Figure 3. Desktop Dual-Pocket Charger
1. Plug the flat end of the power-supply cord, with the logo facing
down, into the receptacle labeled “Charging” on the back of the
charger.
2. Plug the transformer end of the power-supply cord into any standard AC
wall outlet.
3. Insert an i1000plus with an attached battery, into the charger's front
pocket. This is done by inserting the bottom of the i1000plus into the
pin connector in the bottom of the charger's front pocket.
4. If the i1000plus is properly seated in the front pocket, the charger’s
front pocket LED indicator will light green to indicate that the battery is
being charged. If a battery is in the rear pocket and the i1000plus with a
battery is inserted into the front pocket, the battery in the front pocket
will charge to full capacity before the battery in the rear pocket is
charged. The LED for the rear pocket will flash yellow, indicating that
its battery is waiting to be charged.
5. The charger has the capability of displaying the battery’s charge status.
The indicator will show the following: solid red=1-30%; solid
yellow=31-60%; flashing green=61-90%; solid green=91-100%.
Rear Pocket Front Pocket
Pin Connector Power supply cord receptacle
LED
Indicators
