1. Television Overview 9

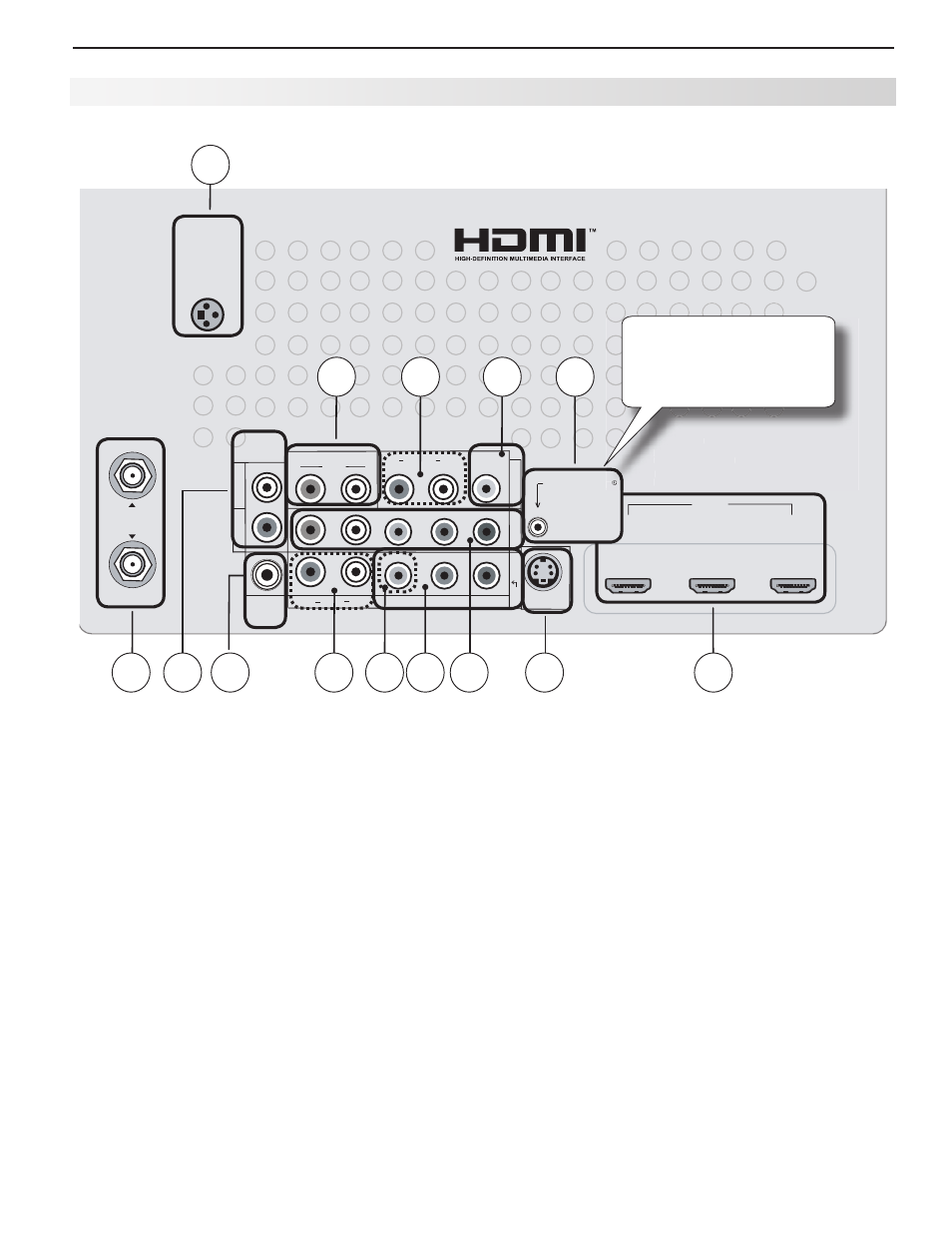

TV Back Panel
1. ANT 1/ANT 2 (Antenna)
If you are connecting an antenna or direct cable service
without a cable box, connect the main antenna or cable
source to ANT 1. Use ANT 2 for a second source.
ANT 1 and ANT 2 can each receive digital and analog
over-the-air channels from a VHF/UHF antenna or non-
scrambled digital/analog cable source.
2. AVR AUDIO OUTPUT
Use AVR AUDIO OUTPUT to send analog audio of the
program currently shown on the screen to an analog
A/V surround sound receiver or stereo system. Digital
audio from digital channels and HDMI devices is con-
verted to analog audio by the TV. This is the only audio
connection needed between it and the TV if using an
analog A/V receiver or stereo system.
3. DIGITAL AUDIO OUTPUT
This output sends Dolby Digital or PCM digital audio to
your digital A/V surround sound receiver. Analog audio
from analog channels and devices and HDMI devices is
converted by the TV to PCM digital audio. If you have
a digital A/V receiver, in most cases this is the only
audio connection needed between the TV and your A/V
receiver.
4. Composite Video (INPUT 1, INPUT 3)
Use the VIDEO jacks to connect a VCR, DVD player,
standard satellite receiver, or other A/V device to the
TV. Use the adjacent AUDIO R and L inputs for INPUT
1 or INPUT 3 if you wish to send audio to the TV. Note
that the INPUT 3 composite video jack is automatically
disabled when you connect to S-VIDEO (item 6).
5. Component Video (INPUT 1, INPUT 2)
Y Pb Pr Component Video (480i/480p/720p/1080i)
Use these jacks to connect devices with component
video outputs, such as DVD players, external HDTV
receivers, or compatible video game systems. Use the
adjacent AUDIO R and L jacks for INPUT 1 or INPUT 2
if you wish to send audio to the TV. See Appendix A
specifications for signal compatibility.
HDMI
3D
GLASSES
EMITTER
AVR
AUDIO
OUTPUT
DIGITAL
AUDIO
OUTPUT
L
R
AUDIO
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO AUDIO R L
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p
AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA,
XGA, W-XGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand
Output / External
Controller Input
R
INPUT
3
INPUT
2
INPUT
1
S-VIDEO
INPUT 3
ANT 2 / AUX
ANT 1 / MAIN
1 6 5 7 2 3 4 9 5
8 9
11
10 4
HDMI
VIDEO: 480i/480p/720p/1080i/1080p
AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA,
XGA, W-XGA, SXGA, 720p/ 1080p
d R
IR NetCommand Output/
External Controller Input
available on 736 and 835
series models.
