3. TV Connections 21
Figure 8. Connecting a VCR to an Antenna or Wall
Outlet Cable
VCR to an Antenna or
Wall Outlet Cable
Required: Two-way RF splitter, two coaxial cables, right
and left analog audio cables, either S-video or compos-
ite video cable.
Connect the incoming cable or antenna to 1. IN on the
RF splitter.
Connect one coaxial cable from 2. OUT on the RF
splitter to ANTENNA IN on the VCR back panel.
Connect one coaxial cable from 3. OUT on the RF
splitter to ANT 1 on the TV back panel.
Connect either an S-Video or composite video 4.
cable from VIDEO OUT on the VCR back panel to a
VIDEO composite or S-VIDEO jack on the TV back
panel. Connect only one type of video cable;
S-Video is recommended, if available.
To use the TV speakers with the VCR, connect left 5.
(white) and right (red) audio cables from AUDIO OUT
on the VCR to the associated AUDIO L and R jacks
on the TV back panel. If your VCR is mono (non-
stereo), connect only the white (left) cable.
HDMI
3D
GLASSES
EMITTER
AVR AUDIO OUTPUT
DIGITAL AUDIO OUTPUT
L
R
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-ZGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R
INPUT
3
INPUT
2
INPUT
1 S-VIDEO INPUT 3
AUDIO R L
AUDIO
ANT 2 / AUX ANT 1 / MAIN
HDMI
3D
GLASSES
EMITTER
AVR AUDIO OUTPUT
DIGITAL AUDIO OUTPUT
L
R
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-ZGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R R
INP
U T 3
INP
U T 2
INP UT 1
S-VIDEO INPUT 3
AUDIO R L
AUDIO
ANT 2 / AUX ANT 1 / MAIN
S-VIDEO INPUT 3
AUDIO R L
AUDIO R L
S-VIDEO
INPUT 3
VIDEO
VIDEO
ANT 1 / MAIN
ANT 1 / MAIN
"6%*0065
47*%&0
065
7*%&0
065
- 3
"/5&//"
*/
7$3
57CBDLQBOFM
*ODPNJOH
DBCMF
Standard Cable Box, Satellite Receiver,
or Other Device with S-Video
Required: S-Video cable and left/right analog stereo
audio cables.
Connect the cable from the outside cable or satel- 1.
lite service to CABLE IN or SATELLITE IN on the
cable box or satellite receiver.
Connect an S-Video cable from 2. S-VIDEO OUT on
the cable box or satellite receiver back panel to
INPUT 3 S-VIDEO on the TV back panel.
Connect left (white) and right (red) audio cables 3.
from AUDIO OUT on the cable box or satellite
receiver to INPUT 3 AUDIO L and R on the TV back
panel.
Note: Refer to the cable box or satellite receiver
Owner’s Guide for cable or dish antenna con-
nections to the receiver.
HDMI
3D
GLASSES
EMITTER
AVR AUDIO OUTPUT
DIGITAL AUDIO OUTPUT
L
R
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-ZGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R
INPUT
3
INPUT
2
INPUT
1 S-VIDEO INPUT 3
AUDIO R L
AUDIO
ANT 2 / AUX ANT 1 / MAIN
HDMI
3D
GLASSES
EMITTER
AVR AUDIO OUTPUT
DIGITAL AUDIO OUTPUT
L
R
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-ZGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R
INPUT
3
INP
U T 2
INPUT
1 S-VIDEO INPUT 3
AUDIO R L
AUDIO
ANT 2 / AUX ANT 1 / MAIN
S-VIDEO INPUT 3
AUDIO R L
AUDIO R L
S-VIDEO
INPUT 3
"6%*0
47*%&0
065
- 3
"OZ47JEFPEFWJDF
57CBDLQBOFM
$"#-&*/PS
4"5&--*5&*/
*ODPNJOH
DBCMFGSPN
XBMM

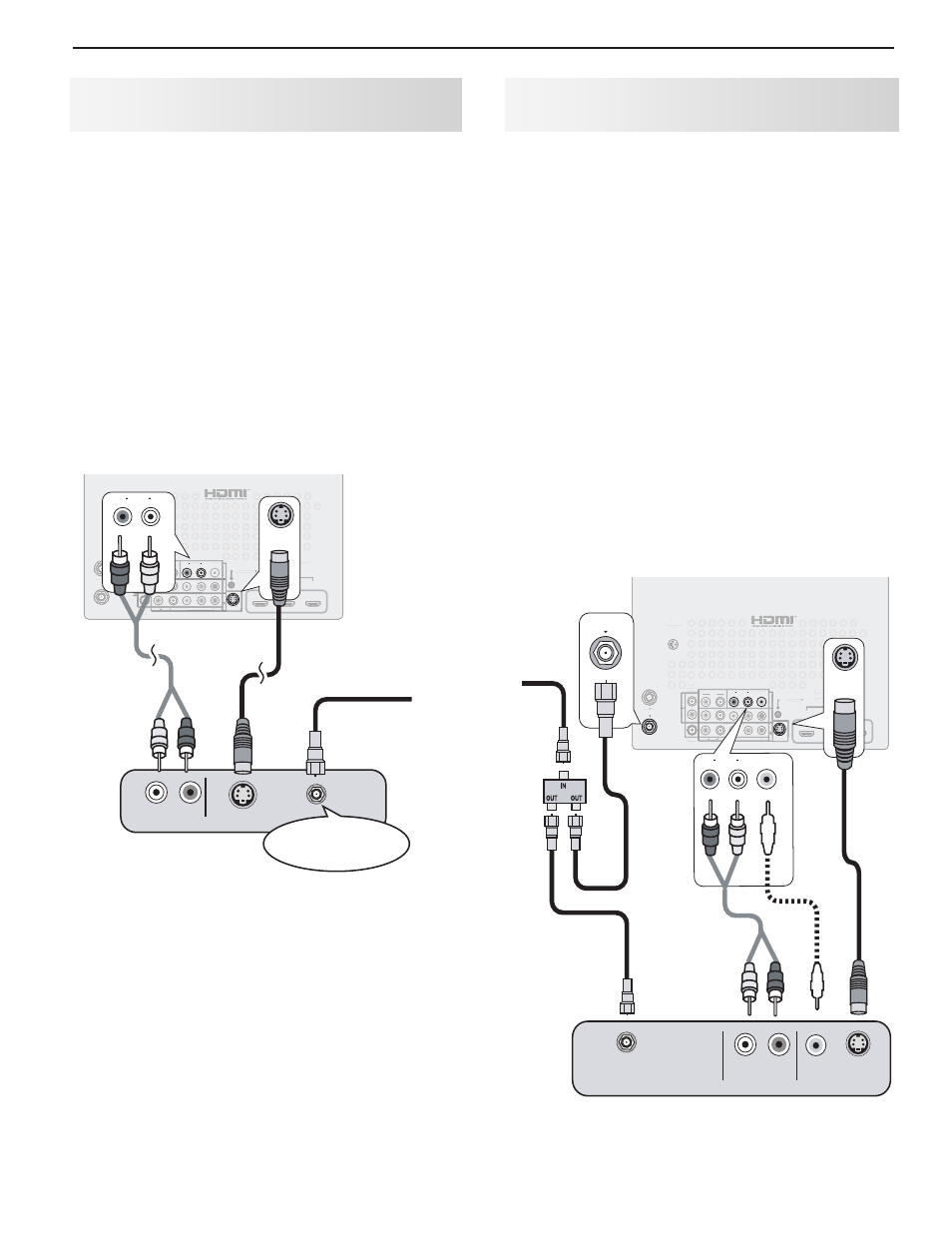

Figure 7. Connecting a device with S-Video
