18
3 TV Connections
HDMI
3D
GLASSES
EMITTER
AVR AUDIO OUTPUT
DIGITAL AUDIO OUTPUT
L
R
AUDIO
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO AUDIO R L
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-ZGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R
INPUT
3
INPUT
2
INPUT
1 S-VIDEO INPUT 3
ANT 2 / AUX ANT 1 / MAIN
HDMI
3D
GLASSES
EMITTER
AVR AUDIO A OUTPUT O
DIGITAL AUDIO OUTPUT
L
R
AUDIO
L R
(480i / 480p / 720p / 1080i) L R
DVI/PC INPUT VIDEO AUDIO R L
Y Pb Pr
AUDIO
Pb Y/ VIDEO Pr
VIDEO: 480i/480p/720p/1080i/1080p AUDIO: PCM STEREO
PC: VGA, W-VGA, SVGA, W-SVGA, XGA, W-ZGA, SXGA, 720p/ 1080p
1 2 3
HDMI
IR- NetCommand Output / External Controller Input
R
INPUT
3
INPUT
2
INPUT
1 S-VIDEO INPUT 3
ANT 2 / AUX ANT 1 / MAIN
AUDIO L R
Pb Y/ VIDEO Pr
(480i / 480p / 720p / 1080i) AUDIO L R
Pb Y/ VIDEO Pr
1C : 1S
"6%*0
- 3
*ODPNJOHGSPN
DBCMFTFSWJDFPS
TBUFMMJUFEJTI
$PNQPOFOUWJEFP
EFWJDF
57CBDLQBOFM
$"#-&*/PS
4"5&--*5&*/

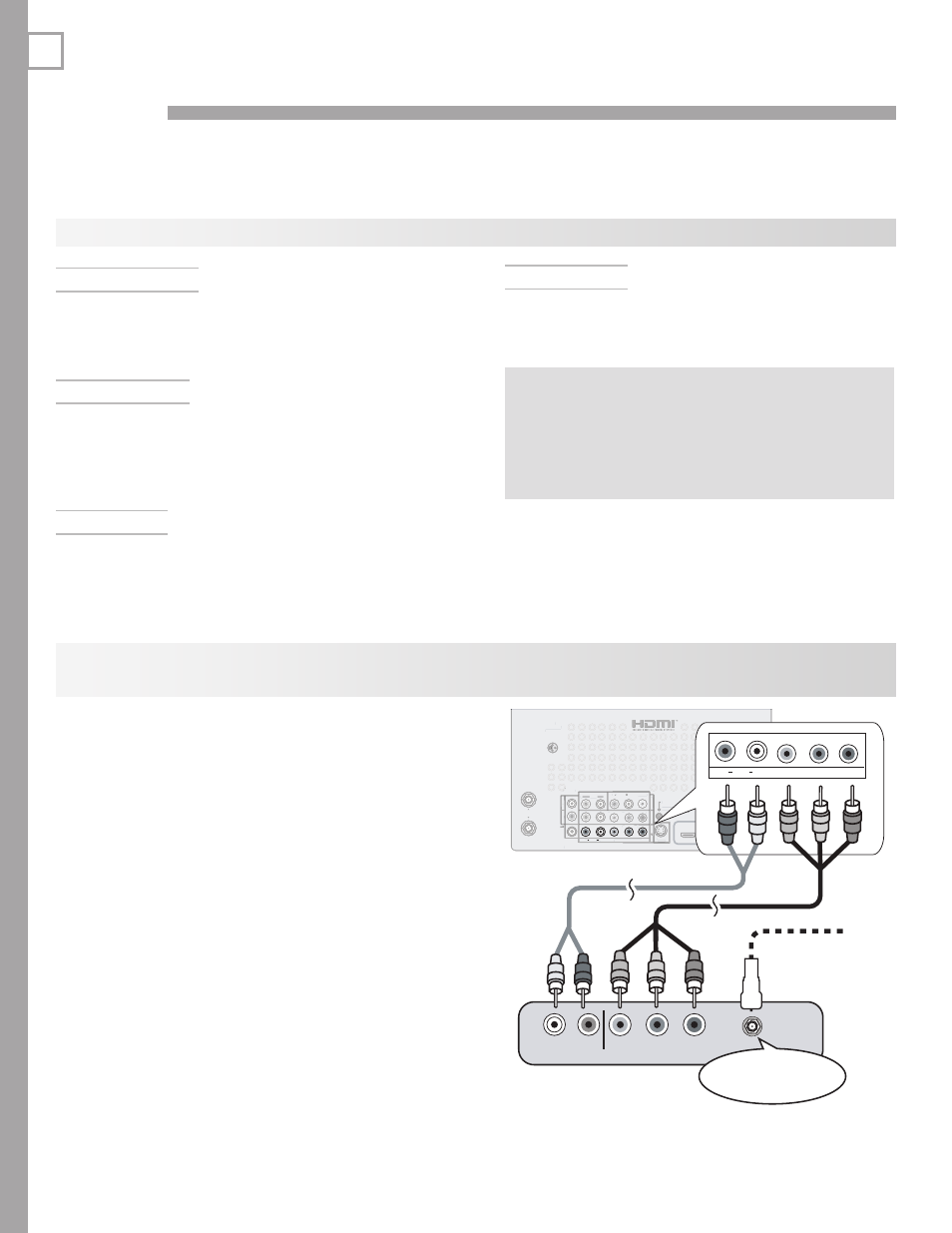

Figure 1. Connecting a device with component video
outputs
Auto Input Sensing
The TV’s Auto Input Sensing feature automatically rec-
ognizes most connections and prompts you to identify
the type of device connected. See chapter 2, “TV
Setup,” for more on Auto Input Sensing.
Connection Types
Review the connection types available on your input
devices and use connections that will give the best
video quality. For example, choose HDMI over compo-
nent video, and choose component video over S-video
or composite video.
Picture Quality
For best picture quality, route signals directly from
the input device to the TV; avoid routing video signals
through an A/V receiver, for example.
If your cable box or satellite receiver has an HDMI
output, use the connections for HDMI devices
described later in this chapter.
Required: RCA component video cables, left/right
analog stereo audio cables.
Connect RCA-type cables from the 1. Y Pb Pr outputs
on the device to the Y Pb Pr inputs on the TV back
panel, matching the colored green, blue, and red
connections.
Connect left (white) and right (red) audio cables 2.
from the device to AUDIO L and R on the TV back
panel.
Cable Box or Satellite Receiver Only: 3. Connect
the cable from the outside cable or satellite service
to CABLE IN or SATELLITE IN on the cable box or
satellite receiver. See your device’s owner’s guide
for instructions and cable compatibility.
Note: To hear digital surround sound, connect the digital
audio output from the device directly to your digital
A/V receiver.
Surround Sound
For best surround sound audio quality, route audio-
signal cables or HDMI cables from the source device
directly to your A/V receiver or sound system.
IMPORTANT
Accessory items such as cables, adapters,
splitters, or combiners required for TV
connections are not supplied with the TV.
These items are available at many electronics
stores.
Before You Begin
HDTV Cable Box or Satellite Receiver, DVD Player, or Other Device with
Component Video
