1. Television Overview 7

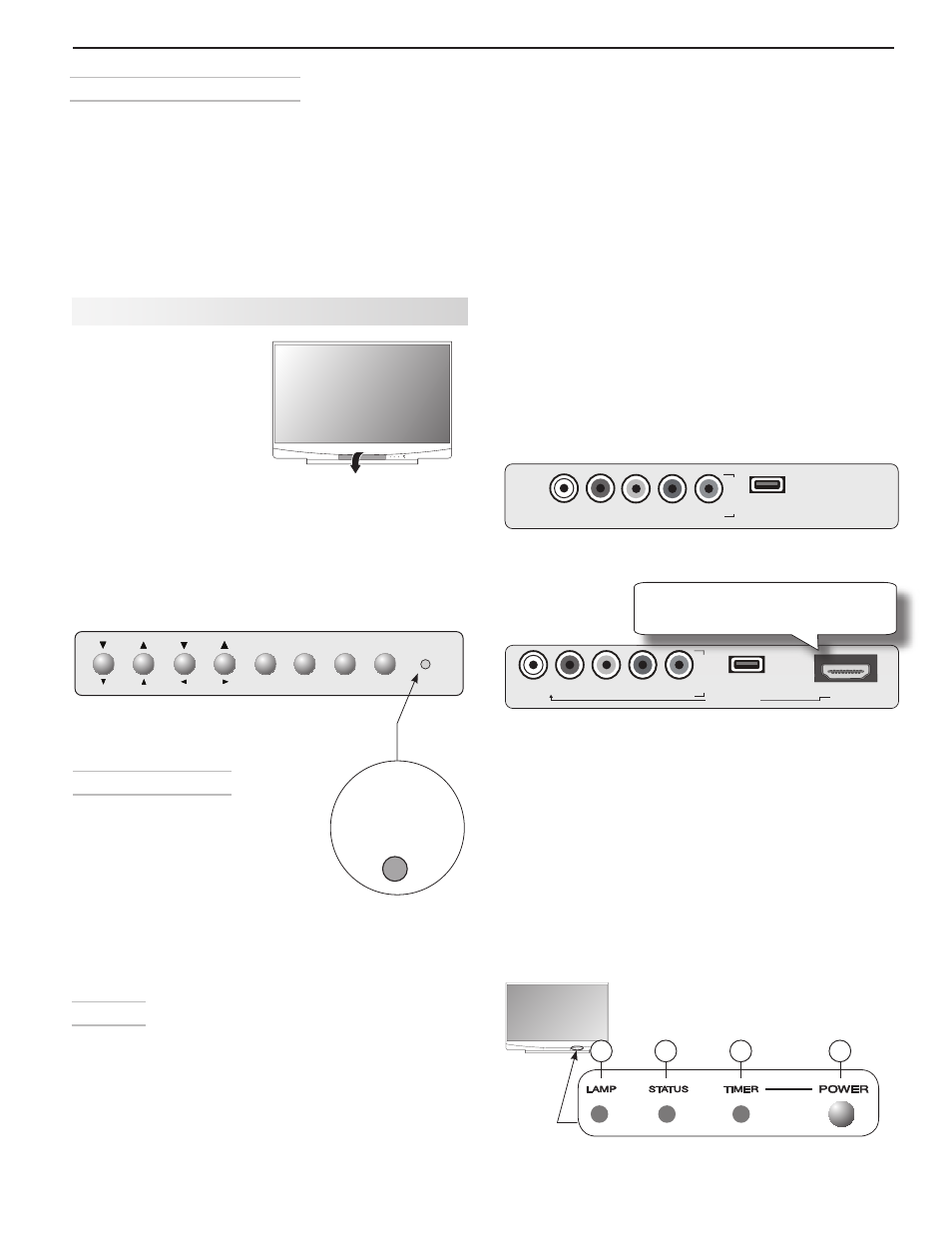

TV Front Panel
A/V Reset
If you wish to reset the A/V (Audio/Video) settings back
to the factory defaults:
t 5PSFTFUBMMTFUUJOHTBUPODF
QSFTTGUIDE and FORMAT
on the control panel at the same time.
t 5PSFTFUUIFEFGBVMUTGPSJOEJWJEVBMJOQVUT
VTFUIF
Reset selection on the AV menu. See “AV Menu,”
page 36.
Control Panel
Buttons on the front
control panel duplicate
commonly used keys on
the remote control. The
upper labels show control
functions when no TV
menus are displayed; the
lower labels indicate functions when TV menus are dis-
played or when a special function has been activated.
See “Remote Control,” page 26, for a full description of
the functions of these buttons.
Front Inputs
INPUT 4 is a readily accessible set of input jacks for a
camcorder, game, or other audio/video device.
To view NTSC/480i composite video signals, plug t
the single composite video cable (usually yellow)
into the VIDEO/Y jack.
To view Y Pb Pr component video in 480i, 480p t
720p, or 1080i format, connect cables to the
VIDEO/Y, Pb and Pr jacks.
A convenient fourth HDMI input is provided on 736 t
and 835 series models.
A USB photo port lets you view JPEG images. t
Plug stereo audio cables into the t AUDIO L and R
jacks for sound from connected devices. You can
use the audio jacks for sound from a DVI device
connected to the HDMI jack or from an audio
device playing while viewing photos from the USB
input.
L-AUDIO-R
USB
VIDEO/Y Pb Pr
I
N
P
U
T
4
Front inputs on C and 735 series models.
L-AUDIO-R VIDEO/Y Pb Pr
USB
I
N
P
U
T
4
HDMI 4 DVI AUDIO
USB
I
N
P
U
HDMI 4 input available on 736
and 835 series models.
Front inputs on 736 and 835 series models.
Flip down cover to
use buttons and
inputs on the front
panel.
System Reset Button
If the TV fails to respond to the
remote control, control panel
buttons, or will not power on/off,
press the SYSTEM RESET button on the
control panel.
The green LED on the front panel will flash quickly for
up to one and a half minutes. When the green LED
stops flashing, you may turn on the TV. Recent setting
changes you made before using SYSTEM RESET may be lost.
Control Panel. Buttons on the control
panel duplicate some keys on the
remote control.
VOL
ADJ ADJ
CH FORMAT MENU GUIDE INPUT SYSTEM
RESET
ENTER MENU CANCEL
VOL
ADJ ADJ
CH FORMAT MENU GUIDE INPUT SYSTEM
RESET
ENTER MENU CANCEL
SYSTEM
RESET
Indicator LED lights and POWER button
1 3 4 2
Front Panel Indicators and Power Button
LAMP 1. indicator shows lamp condition (usually off
during normal TV operation).
STATUS 2. indicator. Off during normal TV operation.
POWER/TIMER 3. indicator. Lit when TV is powered
on; flashes when TV is powered off and the auto-on
TV Timer is set.
POWER 4. button. Turns TV on and off; works the
same as the POWER key on the remote control.
See the next page for more on front-
panel indicators.
NetCommand with IR Learning
Available on 736 and 835 series models. Your
Mitsubishi HDTV offers a new level of networking that
seamlessly integrates selected older A/V products
with new and future digital products. NetCommand
®
supports IR (infrared) control of products such as VCRs,
DVD players, cable boxes, and satellite receivers. Net-
Command can “learn” remote control signals directly
from many devices, allowing you to create a custom-
ized NetCommand-controlled home-theater system.
