42 Maintaining and Troubleshooting the Gateway ALR 7300 Server

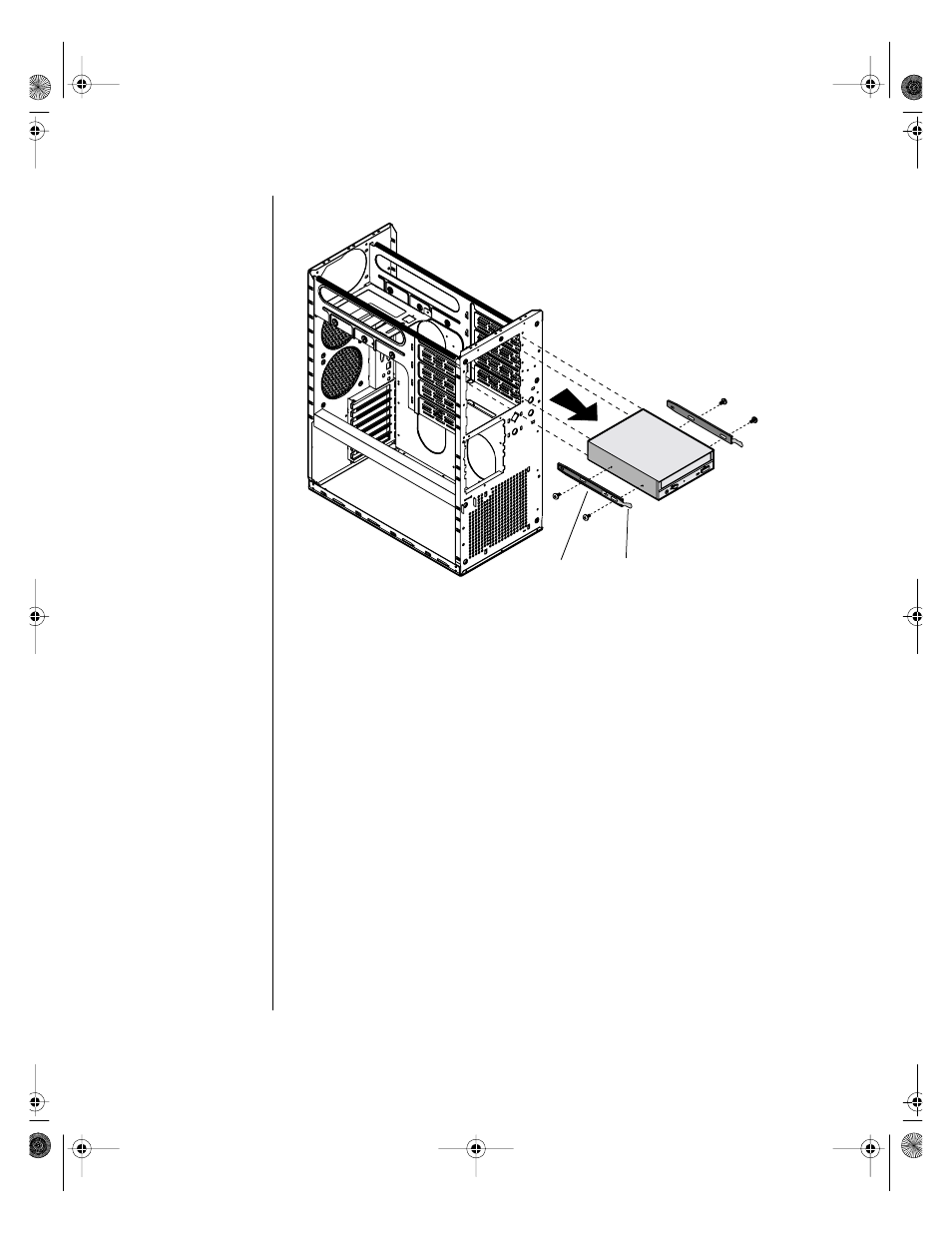

Figure 24: Removing a 5.25-inch Drive
7.
Remove the screws that secure the drive rails to the drive and remove
the rails.
8.
Mount the guide rails to the new drive using the screws you removed
from the old drive.
9.
Align the guide rails with the rail guides in the drive bay and slide the
drive all of the way into the bay. The tabs on the rails will click into
place when the drive is fully inserted (see Figure 25).
Guide rail
Tab
