70Km at full duplex, and depend upon the Gigabit modules used.
The two Giga port has been offered as GBPM-2OTX (fiber or RJ-45), whereas the single
Gigabit module comes in flavor of
G+4(10/100 RJ-45 ports) or G+2
(100Mb fiber ports) as shown below in
the above figure.
Each port has an Activity (ACT) LED
indicating packets being received and a
link (LK) LED indicating proper
connectivity with the remote device
when lit.

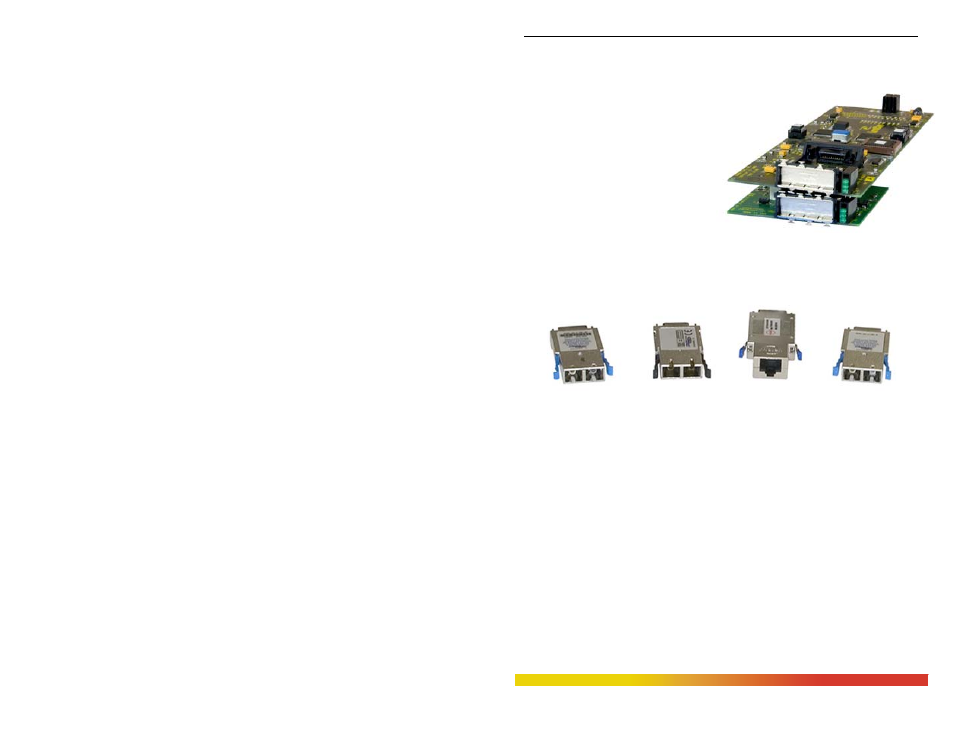

5.2.13 GBPM-2OTX (Two Gigabit option)
The Magnum 6K16-Series offered a wide selection of Gigabit speed with multiple choice
of copper or Fiber or mix for the modular slot via GBPM-2OTX (2 x Giga module).
While up to two Gigabit modules (maxm.) can be configured in the modular slot for
GBPM-2OTX. The Dual Gigabit port option for the modular slot
provide a wide option of choice for various Gigabit transceivers covering a long range of
distance. The GBPM-2OTX also meets the requirement for those applications where a
managed Gigabit media converter is required. The two Gigabit slot can be filled with
copper/Fiber or mix as per the application.
The 6K16-Series Modules provide a GBIC opening for insertion of industry-
standard GBICs to provide Gigabit (Gb) transceivers media flexibility. GBIC models are
available for both multi-mode (550m) and single-mode (10, 25, 40, 70) km fiber options,
and Gigabit copper as well, with new models appearing often.
Each port has an Full and Half Duplex (F/H) Activity, (ACT) LED indicating
packets being received and a Link (LK) LED indicating proper connectivity with the
remote device when lit
