Once the bottom of the 6K8 is rotated out, the DIN-Rail latch is not engaged and the 6K8

can be moved up and out, free of the DIN-Rail mounting..

The picture below is a front / right-side view of a DIN-Rail mounted 6K8. It

shows vertical mounting of Magnum 6K8 on a DIN-Rail track for proper convection

cooling of the unit. Note that there is air space in the rear, as the 6K8 unit is held out

from the rear of the panel by the mounting brackets. The 6K8 design uses the case for

cooling (patent pending), and needs to be mounted vertically with airflow space in the

front, rear, and sides.

Fig 3.3 - Magnum 6K8 mounted vertically with DIN-Rail brackets and latches

The DIN-Rail mounting brackets and latches are optional and need to be ordered

as separate items, e.g. Model # DIN-RAIL-6K8

3.3.1

Installing DIN-RAIL variable brackets on Magnum 6K8

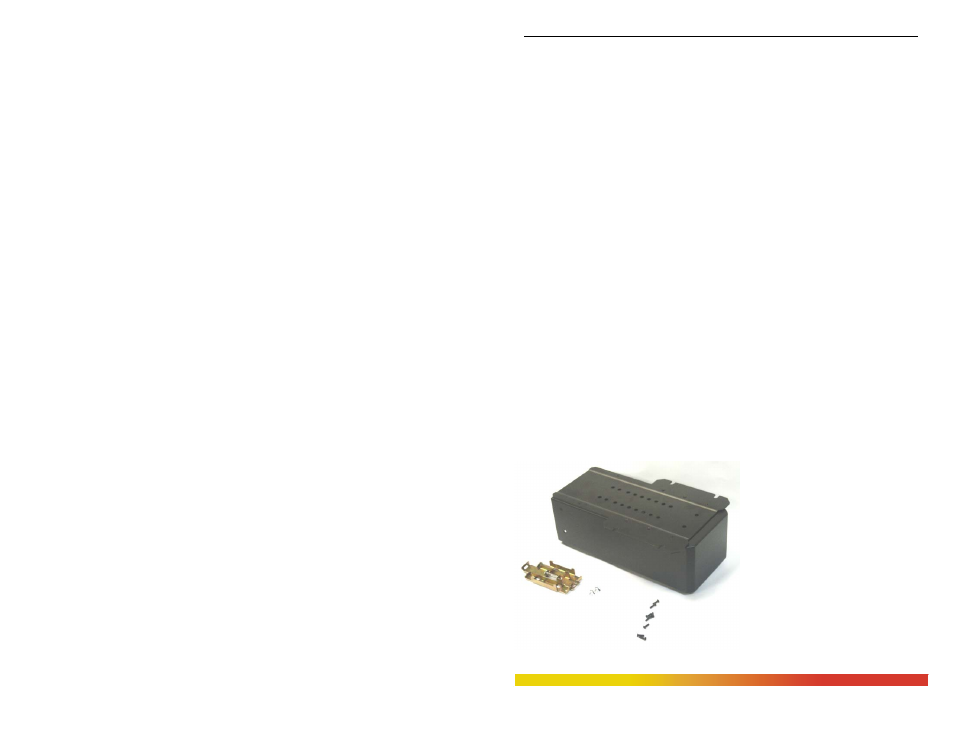

Magnum 6K8 Din-Rail kit comes along with the following-

BOM:

Item

Quantity Description

DIN Rail Clip assy

#10-32 x ¼ Phillip

Flat head screws with

undercut
3

#4-40 x 3/8 Phillip Flat head screw

Din-Rail kit Installation procedures:

1. Remove the back plate from Magnum 6K8 UNIT
a. There are eight screws along the edge of the unit to remove.
b.. Do not re-use the old screws.

2. On the back-plate

a. Locate the indented side with 1,
11…
b. “1” indentation signify center
of the mounted Din-Rail clip
location

c. Each indented locations (1-11-
111…) are ½ inches apart from the
center.

Fig 1.

3.

Select the height position via

indented side marking.

4. Place the

DIN Rail Clip assembly
