Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)
41
www GarrettCom com
.
.
3.6.3
Removing 6KPM Cards
To properly remove a 6KPM card from the 6K8-Series Industrial Field Switch,
follow the 3 steps below.
Step 1. Remove chassis cover See procedures in Section 3.6.1 above.
Caution: Be sure the power cord is unplugged.
Step 2. Remove retaining screws placed on top of the 6KPMV and Face Plate
Each 6KPMV module is secured with nine retaining screws #440x3/8. These screws are
used to secure a 6KPM card in position (see Figure 3.6.3a). Remove the 9 screws to take
off the daughter module and thereafter three standoffs underneath holding the
Granddaughter board with the chassis.

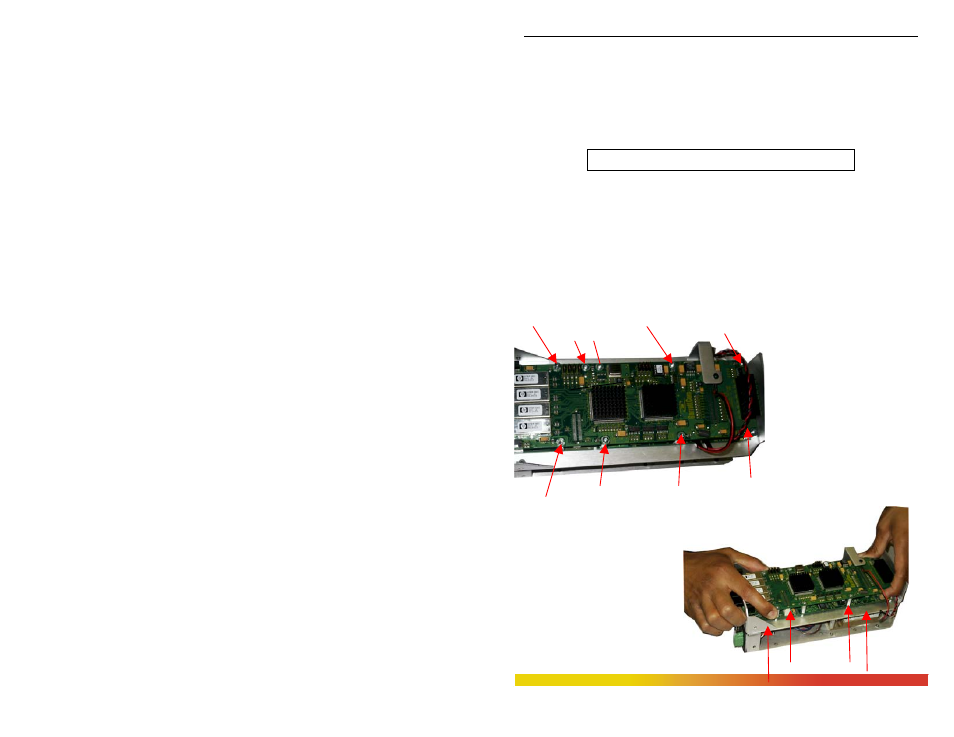

Figure 3.6.3a: 8
retaining screws shown by
arrows
Step 3. Remove 6KPM
Card
Carefully and gently pull out
the daughter board from the latching connectors,
using both hands, gripping the
board near the latch-up
connectors as shown in Fig.
3.6.3b
Figure 3.6.3b:
Removing a 6KPM Card
