Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)

www GarrettCom com

TX RX

ACT

LK RX

ACT

TX RX

ACT

mentioned on 5.2.4. and the LEDs also act similarly.

5.2.12 GBIC-SXSC Gigabit fiber (1000Mb), multi-mode SC Connector

The Magnum GBIC-SXSC is a multi-mode Gigabit fiber connector

equipped with SC type connectors and can be easily snapped in and out. The Gigabit

fiber ports are most popular as server-to-switch and switch-to-switch applications. It

supports cable distances up to the IEEE 802.3z standard 1000Mbps distance limits, i.e.,

550m at full duplex.

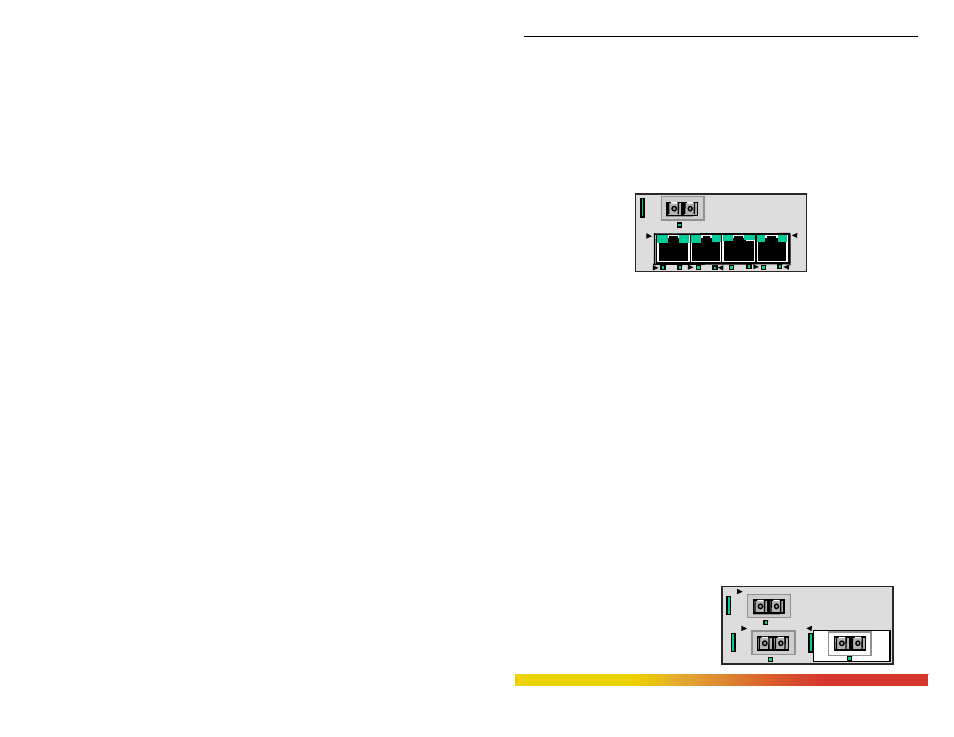

1@ 1000Mb Fiber SC + 4@10/ 100Mb

The GBIC transceiver has been offered in the modular slot with multiple options as per

the user requirement. The two Giga port has been offered as GBPM-2OTX (fiber or RJ-

45), whereas the single Gigabit module comes in two different flavor of G+2 (100Mb

fiber ports) or G+4(10/100 RJ-45 ports) as shown in the above figure.

The GBIC transceiver is fastened using snap-in clips. Insert the transceiver

(take care to insert it the right way up, arrows on top) until it clicks in space. While

removing the transceiver, press the clips on either side of the transceiver at the same time

and pull the transceiver out.

Each port has an Activity (ACT) LED indicating packets being received and a

Link (LK) LED indicating proper connectivity with the remote device when lit.

5.2.12a GBIC-LXSC Gigabit fiber (1000Mb), multi-mode SC Connector

The Magnum GBIC-LXSC is a single-mode Gigabit fiber connector equipped

with SC type connectors and can be easily snapped in and out. The Gigabit fiber ports are

most popular as server-to-switch and switch-to-switch applications. It supports cable

distances up to the IEEE 802.3z

standard 1@ 1000Mb Fiber SC + 2@

100Mb SC

1000Mbps distance limits, i.e., 10,25, 40

1 3 5 7

10/100

ACT

TX RX

ACT
