Magnum 6KP8-MLC is a eight-
port multi-mode fiber LC connector
“small-form-factor” used primarily in
100Mbps fiber-to-the-desktop links.
When installed in a Magnum 6K8-Series
Switch, it supports fiber optic cable
distances up to the IEEE-standard
100Mbps distance limits, i.e., typically
2km at full duplex and 412m at half-
duplex.
The compact size of the LC Connector reduces the size of wiring panels in
wiring closets while providing the advantage of “future-proof” fiber optic technology.
The cable end is a “plug-in” connector with both fiber strands terminated in
one housing that cannot be improperly inserted. Each port has an Activity (ACT) LED
indicating packets being received, a Link (LK) LED indicating proper connectivity with
the remote device when lit, and a FDX/HDX LED indicating full-duplex mode when lit
(or half-duplex when off).
5.2.8 6KP8-45LC, Combo 4@ 100Mbps multi-mode -LC small-form
factor and 4@ 10/100 Mbps RJ-45 Connector
The Magnum 6KP8-
45LC Module is a combo
module with a combination of
copper and Fiber (Small Form
Factor) LC type ports. The
small size of LC connectors
allows an advantage of having
more ports on one module.
The 6KP8-45LC is equipped
with 4 10/100 RJ-45 ports and
4 LC (Small form factor)
multi-mode fiber ports.
FULL/HAL
1 ACTIVIT
LINK
2
3
3
2
1

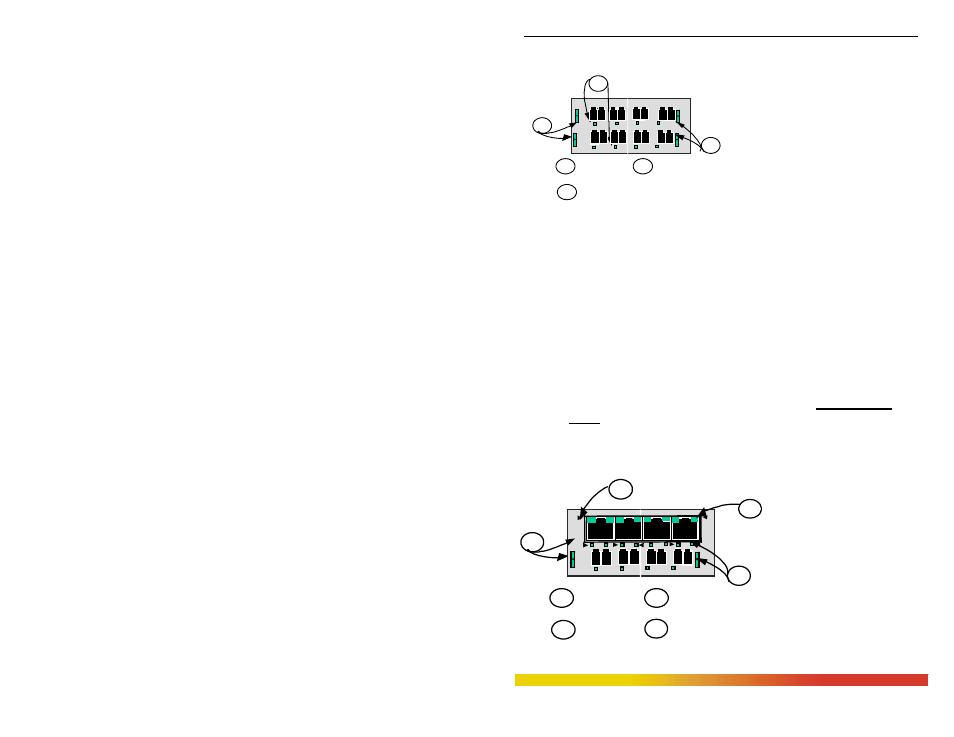

8-Port@ 100Mbps multi-Mode LC fiber
2 4 6
LK LK LK
ACT
F/
ACT
F/
ACT
F/H
ACT
F/H
2 4 6
LK LK LK
ACT
F/ ACT
F/
ACT
F/H ACT
F/H
1 3 5
4
3 2 4 6
LK LK LK
AC
F/H
AC
F/H
2
ACT
F/H
ACT
F/H
4 Port@ 10/100Mbps & 4 port @ 100Mbps
Multi
-Mod LC Fiber port
1 3 5
10/10 LK
1
F/ ACT
4
FULL/HALF
1
ACTIVITY
LINK
2
3
10/10
