Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)
51
www GarrettCom com
.
.

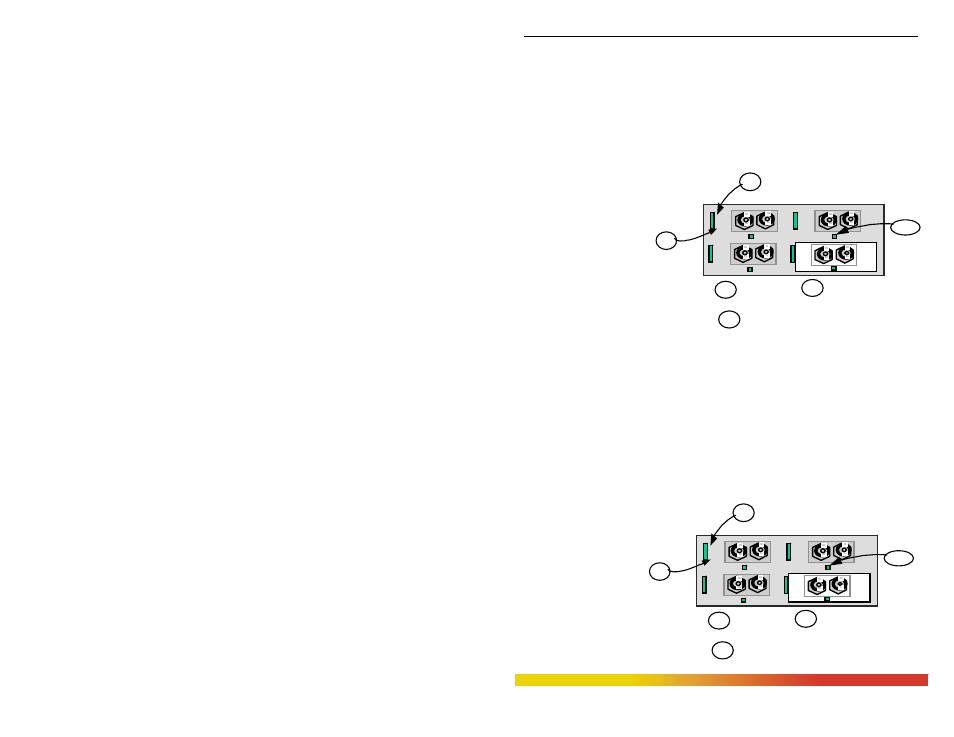

6KP4-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T
LK
RX
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
1 5
3
2
1
FULL/HALF
1
ACTIVITY
LINK
2
3
6KP4-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T
LK
RX
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
1 5
3
2
1
FULL/HALF
1
ACTIVITY
LINK
2
3
Link (LK) LED that indicates proper connectivity with the remote device when lit, and
FDX/HDX LED to indicate full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates the speed, if the LED is ON, 100Mbps if it is OFF, 10Mbps.
5.2.1b 6KP4-F10ST, 4@10Mb multi-mode FX-ST “twist lock” Module
The Magnum 6KP4-F10ST
is a 10Mb multi-mode
fiber module with 4 ST-
Fiber ports. All four-fiber
ports are ST connectors
and configured as 10Mb
half duplex by default. The
10Mb ST-fiber ports allow
the user to connect their
legacy 10Mb network to
the Magnum 6K8-Series
switch. They also provide a convenient way for the half duplex
Hub to connect to the switch through 10Mb fiber ports. It supports distances according to
the 10Base-FL standard i.e., 2Km distance for multi-mode fiber. (Single-mode for 10Km
distance may be available as a special order).
Each port has an Activity (ACT) LED indicating packets being
received, a Link (LK) LED indicating proper connectivity with the remote device when
lit, and FDX/HDX LED
indicating full-duplex
mode when lit (or half-
duplex if off).
5.2.1c 6KP4-
FLSTFX, 2@10Mb
& 2@100Mb multi-
mode FX-ST “twist
lock” Module
The Magnum 6KP4-
FLSTFX is a combo fiber
