Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)
38
www GarrettCom com
.
.

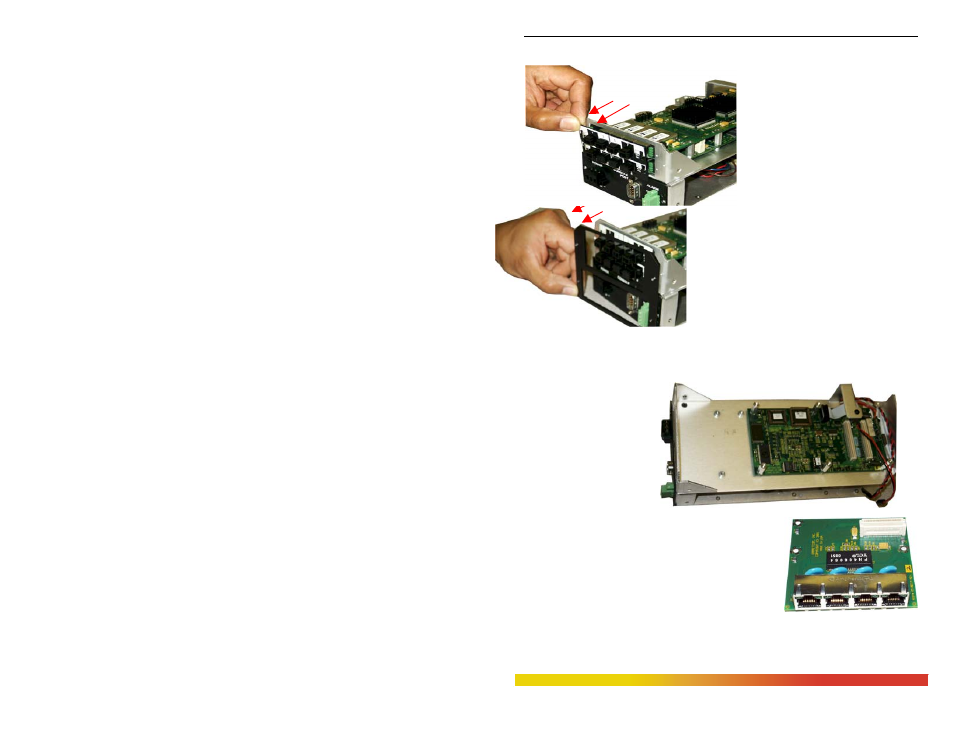

Figure 3.6.1d: Removing PM screens Plate
Once opened all the four retaining
screws the front cover can be removed
easily as shown in Fig 3.6.1d. (To the
left).
Carefully remove the PM screen plate
using finger or small screwdriver to
come out easily as shown in Fig
3.6.1d on the right. Just be careful on
the LEDs placed both side and hold
the faceplate tightly. There are no screws used on
holding the screen faceplate
.
Figure 3.6.1d: Removing Face Plate
3.6.2
Installing 6KPM Cards in the Magnum 6K8-Series
Only one front-mounted 6KPMV Module may be installed in one Magnum
6K8-Series Field Switch unit. Follow these steps to install a 6KPMV.
Step 1. Remove top
chassis cover. See
procedure in Section
3.6.1 above.
Fig 3.6.2a A Magnum 6K8
unit with main board
(motherboard) only
Step 2. Place Granddaughter board (as shown in fig.
3.6.2b) on the chassis built in stand off (female)
provided at the front of the 6K8-Series Main Board. To
place the Granddaughter board
Fig 3.6.2b Granddaughter Board shown separately
on the chassis, as shown in Figure below 3.6.2c, screw down tightly with the three 5/16
stand off (male) on the top of the Granddaughter board. The three 5/16 stand off has been
used to place the daughter board on the top of the granddaughter board and a latch
