Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)
59
www GarrettCom com . .
4
3 2 4 6 LK
2
ACT
F/H ACT
F/H
6KP8V -
6 Port@10/10Mbps & 2 port @100Mb
Multi-Mode Fiber port
1 3 5
10/10 L
1
F/H AC
4
FULL/HALF
1
ACTIVITY
LINK
2
3
10/100
10/100
F/H
4
3 2 4 6 LK
2
ACT
F/H
ACT
F/H
-
6 Port@ 10/100Mbps & 2 port @ 100Mbps
Single-Mode Fiber port (LC)
1 3 5
10/10 L
1
F/H AC
4 FULL/HALF
1
ACTIVITY
LINK 2
3
10/100
10/100
F/H
•
In the case where the 48VDC power in not internally connected and no power
is coming to the PoE ports for some reason, all the PoE port LEDs are ON
simultaneously to indicate a trouble condition. The ports will still operate
properly for data traffic.

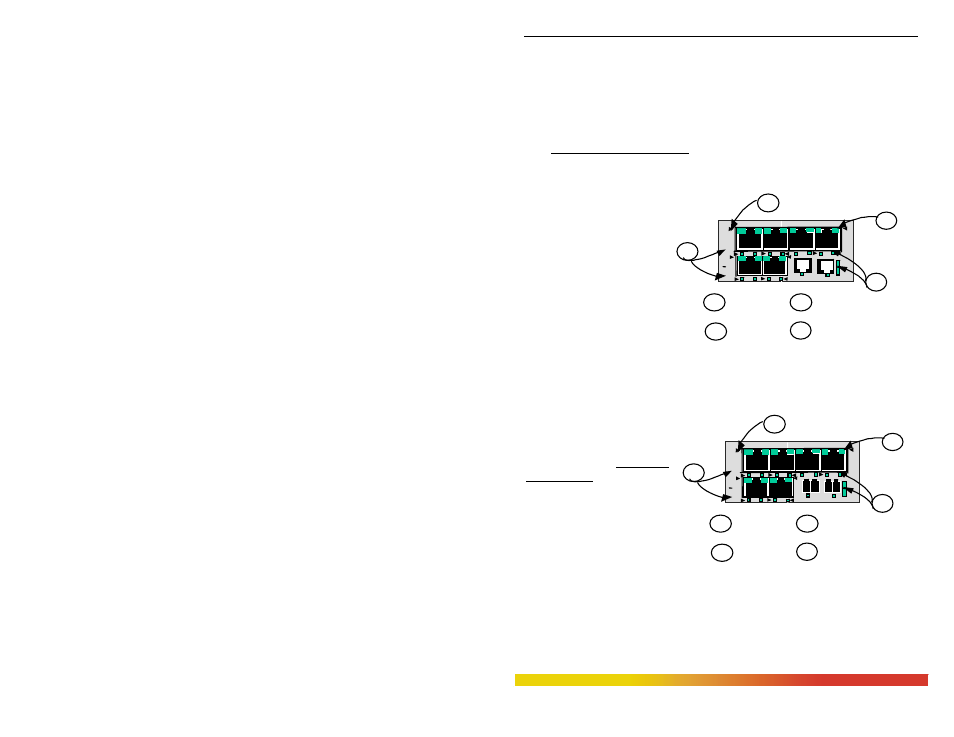

5.2.11 6KP8-45-2MT, 6@ 10/100Mbps RJ-45 and 2@100Mb multi-mode
FX , MTRJ Small-Form-Factor
The Magnum 6KP8-
45-2MT eight ports Module is a
combo module with copper and
fiber (Small Form Factor)
MTRJ type ports. The small
sizes of MTRJ connectors give
an advantage of placing more
fiber ports on one module. The
6KP8-45-2MT is equipped with
six 10/100 RJ-45 ports and two
100Mb MTRJ fiber ports. When installed in a Magnum 6K8-Series Switch, it supports
the standard distances as mentioned on 5.2.3. and the LEDs also act similarly.
5.2.11a 6KP8-45-2LC, 6@
10/100Mbps RJ-45 and 2@100Mb
single-mode FX , LC Small-
Form-Factor
The Magnum 6KP8-
45SLC eight ports Module is a combo
module with copper and fiber
(Small Form Factor) LC type fiber ports.
The small sizes of LC connectors provide an advantage of placing more ports on one
module. The 6KP8-45-2SLC is equipped with 6 10/100 RJ-45 ports and 2 Single-mode
fiber ports.
When installed in a Magnum 6K8-Series Switch, it supports the standard distances as
