Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)


23

www GarrettCom com

.

.

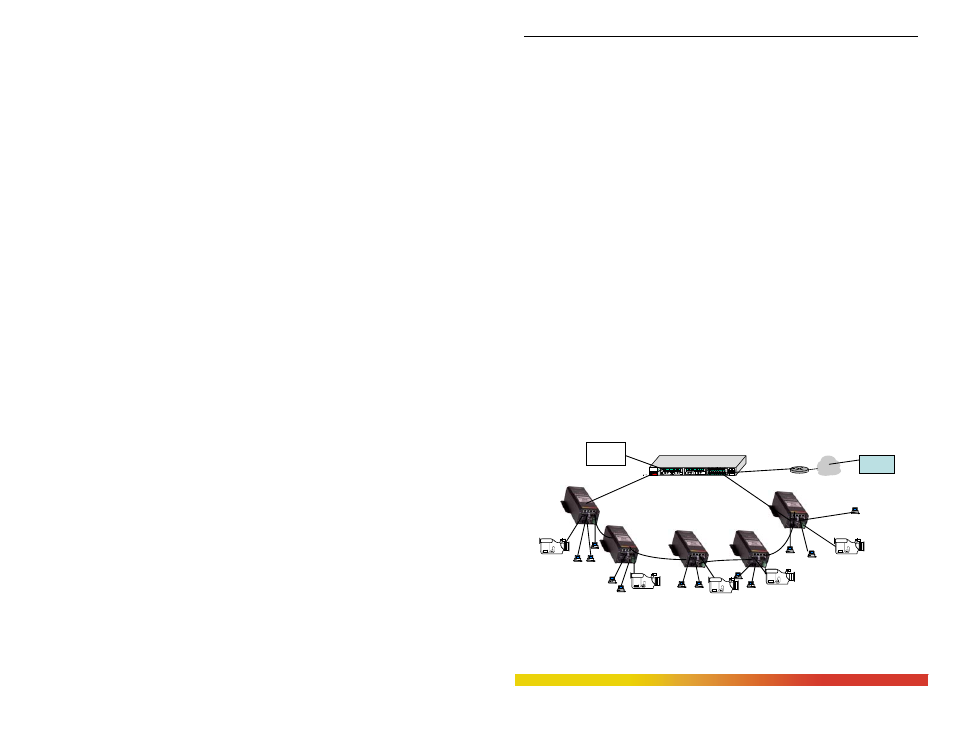

Example 2. In another outdoor Ethernet Traffic monitoring application, a managed

network is needed to provide a redundant ring topology for a maximum redundant

network. This is needed where any faulty cable, cable disconnection or power failure in

a ring switch needs to be reconfigured in milliseconds. The ring topology of the network

consists of high-speed LAN segments supported by 100Mbps full-duplex future-proof

fiber media to provide secure long distance LAN connections. The entire network is

sharing a higher bandwidth of multicast packets used for secure camera monitoring and

data-mining for the vital database located in a controlled center secured building. The

entire spread network will be manageable to provide easy, detectable, uninterrupted

support through a viewable SNMP monitor.

The NEMA TS-2 and TEES along with IP53 approval with the mix of copper

and fiber ports on the 6K8-Series Industrial Field Switch provides an economical and

seamless solution to the requirements. The user-configurable Magnum 6K8 provides an

extra boost to the network requirements by providing copper/fiber media along with the

higher bandwidth support of 10/100Mbps. The user can utilize the SNMP feature

equipped with 802.1Q VLAN, RMON, RSTP and other standard managed LAN features

to provide a secure and stable network.

The 6K8-Series Industrial Field with S-ring and Link-Loss-Learn feature easily

fulfilled the redundancy requirement in a secure and fast reconfiguration time for cable

breakup by setting up a ring topology.





Interne

Route

Magnum

Fiber

GARR

Magnum

P

Managed
Swi

Magnum

1

3

2 TX

T

LK R

L

A

F/

A

F/

10/

L

F/

A

1

3

10/

L

F/

A

10/

L

2

4

F/

A

1

3

2 TX

T

LK R

L

A

F/

A

F/

10/

L

F/

A

Magnum 6K25

CCTV

CCTV

CCTV

CCTV

CCTV

Control Center

SNMP
Monitor
