2.2.5 New PoE (Power Pass-through), model P6KP8-RJ45 (MDIX), 10/100Mb 8-
port
The PoE (Power-pass-through) RJ-45 ports act similar to regular RJ-45 ports,
except they have the
capability of providing
power on each port to
power up the PD devices,
per the IEEE802.3af PoE
standard. The Power Pass-
through PoE modules are
totally dependent upon the
powerful -48VDC input
power supply to support
more RJ-45 (10/100) ports. Each port requires at least 15watts to power up the PoE PD
devices. Maxm. one PoE modules can be configured in the A or B slot of any 6K16s with
-48vdc power input. The PoE modules are also available to mix –n-match with fiber
modules. Please check the ordering information Sec.1.2 for all the various P6K PoE
module options.

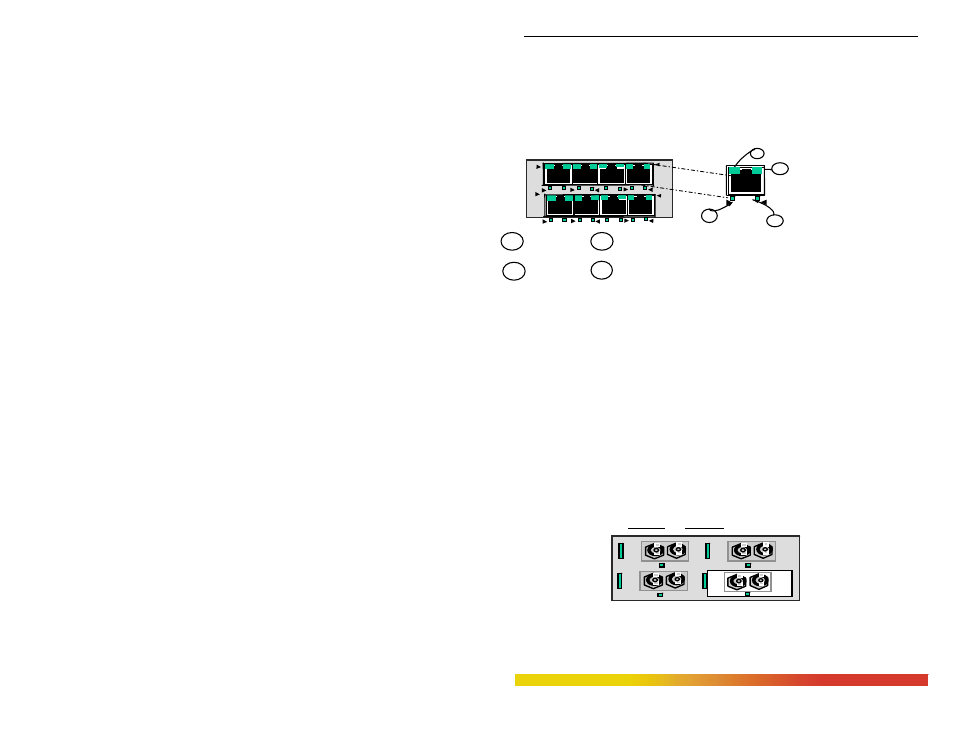

The LEDs on 6KP8-RJ45- PoE modules are slightly different compared to
regular (non-PoE) RJ-45 modules as shown in Fig 2. When the PoE port is in use, the
PoE LED is ON when connected properly to an 803.af compliant PD device on that port.
When non-PoE devices are connected, the PoE LED is OFF. PoE does not affect
operation of Ethernet data traffic.
LINK and ACTIVITY LEDS are combined on the PoE modules into one LED
that is marked as LINK/ACT, as shown in the diagram.
2.2.6
Four-Port 10 MB and 100Mb mm Fiber ST Modules
The 4-port @10Mb ST fiber modules behave the same as the 4@100Mb ST
fiber modules except for the 10Mb speed. For port numbering, ports 1, 2, 5, 6 are present,
ports 3, 4. 7, 8 are not present. There is also a similar 100Mb fiber SC module.
