Magnum 6K8-Series Industrial Field Switch Installation and User Guide (04/07)

www GarrettCom com

module with two 10Mb + two 100Mb multi-mode fiber module and in combine 4 ST-

Fiber ports. All four-fiber ports are ST connectors and configured as 10Mb half duplex

by default for 10Mb fiber and 100Mb Full duplex for the 100Mb fiber. The 10Mb ST-

fiber ports allow the user to connect their legacy 10Mb network to the Magnum 6K8-

Series switch. They also provide a convenient way for the half duplex hub to connect to

the switch through 10Mb fiber ports. Whereas the 100Mb ST fiber module, allow to

connect the 100Mb demand of Switch devices. It supports distances according to the

10Base-FL standard i.e., 2Km distance for multi-mode fiber. (Single-mode for 10Km

distance may be available as a special order).

Each port has an Activity (ACT) LED indicating packets being received, a

Link (LK) LED indicating proper connectivity with the remote device when lit, and

FDX/HDX LED indicating full-duplex mode when lit (or half-duplex if off).

5.2.2. 6KP6-RJMSC 4@10/100Mbps RJ-45 and 2@100Mb multi-mode FX-
SC “snap-in” Fiber connector

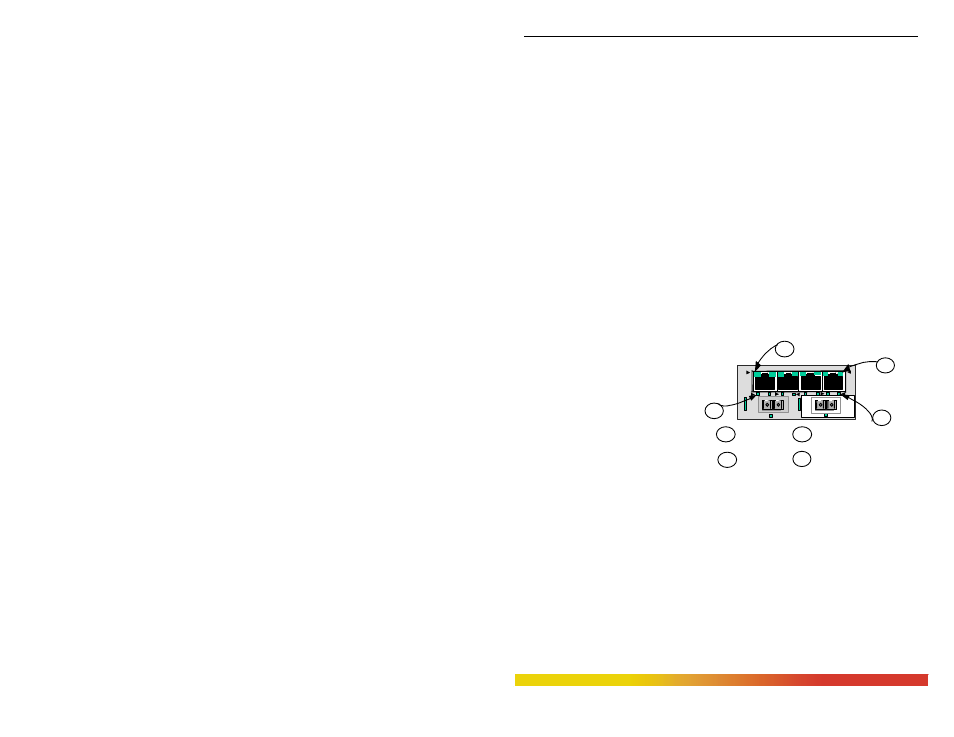

The Magnum 6KP6-

RJMSC is also a Combo 6 Port

module equipped with 4 10/100Mb

RJ-45 ports along with 2 multi-

mode 100Mbps fiber optic

transceivers all in one module. This

is similar to the 6K6-RJMST. It has

the same LEDs indicating port

activity (ACT), Link (LK), and

FDX / HDX and 10/100 operation, and the same faceplate lettering.

While the functionality of these two modules is essentially the same, the 6KP6-

RJMSC is equipped with an SC-type "snap-in" connector instead of an ST-type.

6KP6-RJMSC,

4 Port@ 10/100Mbps and 2 @100 Mb SC Fiber Port

FULL/HALF

ACTIVITY

LINK

10/100

1 3 5 7

2 6

TX RX

LK RX

ACT

F/H

ACT

F/H

10/100

F/H

ACT
