Chapter 2 Installing the Ethernet Interface

5.

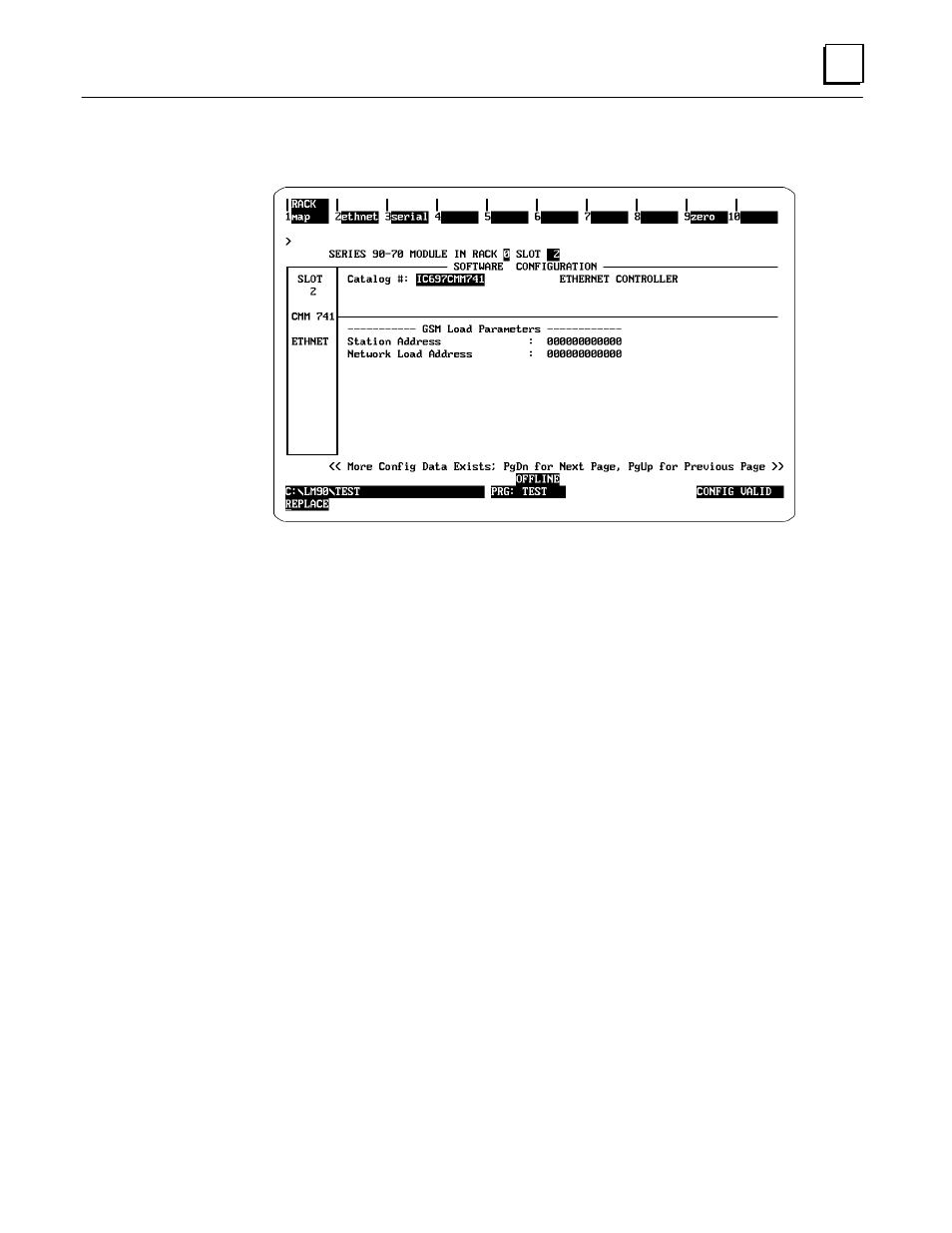

Optionally, after you have assigned the IP address, etc., press Page Down to display
the following screen.

The Logicmaster 90-70 Configurator also allows you to optionally configure the MAC
(Station) Address and Network Load Address in TCP/IP configuration mode.

6.

Press the Escape key to return to the rack display. Press Escape again to save the
configuration to disk.

7.

Power up the PLC. (See Procedure 3 to verify proper power-up of the Ethernet
Interface.)

8.

Store the configuration to the PLC.

Refer to GFK-0263, Logicmaster 90 Series 90-70 Programming Software User’s Manual for
more information on configuring the Ethernet Interface using Logicmaster 90-70 soft-
ware.
