GE GEFanuc Automation Programmable Control Products TCP/IP Ethernet Communications for the Series 90t-70 PLC GFK-1004B User Manual
Page 129

5
5-2
TCP/IP Ethernet Communications User’s Manual – January 1996
GFK-1004B
Section 1: Accessing the Station Manager
The Station Manager on the Ethernet Interface can be accessed in three primary ways:
1.
Through the 9–pin serial port on the Ethernet Interface by a GEnet System Manager
(GSM) in Local Station Manager Mode or by an ASCII terminal. See Figure 5-1.
2.
Directly over the Ethernet network by a GSM in Network Station Manager Mode.
See Figure 5-2.
3.
Remotely over the Ethernet network via another Ethernet Interface with an attached GSM
in Local Station Manager Mode or by an ASCII terminal. This method requires the use
of the REM (Remote) command to access the remote station. See Figure 5-3.
ОООО
ОООО
ОООО
ОООО
TRANSCEIVER
STATION MANAGER
SERIES 90-70 PLC
ETHERNET
INTERFACE
a45166
RS-232
SERIAL LINK
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ОО
О
ОО
О
ООООО
ООООО
ОО
ОО
GEnet SYSTEM MANAGER
in Local Station Manager Mode
(or an ASCII Terminal)
802.3 LAN

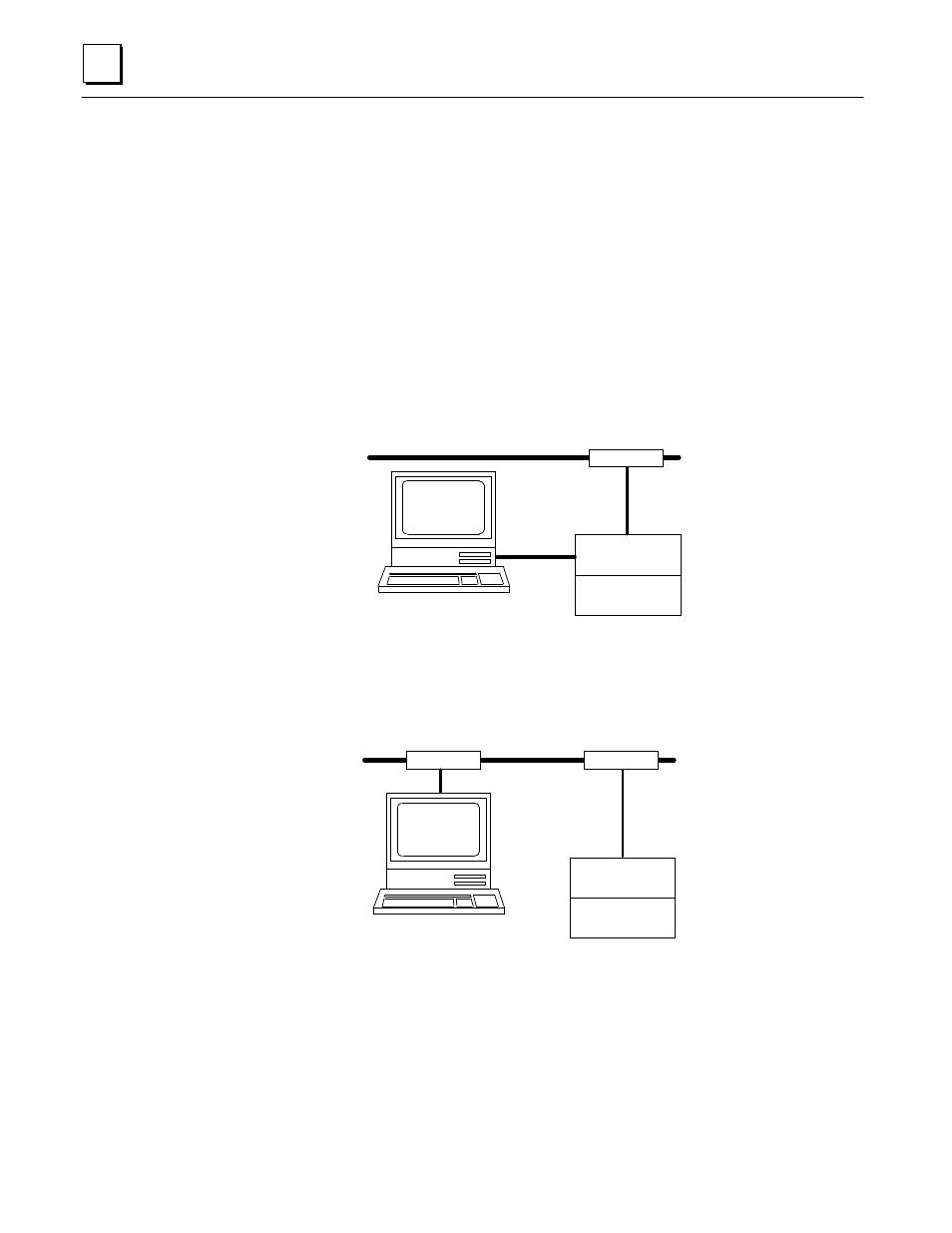

Figure 5-1. Station Manager Accessed Locally through the 9–pin Serial Port by a GSM in
Local Station Manager Mode (or an ASCII Terminal)
STATION MANAGER
ОООО
ОООО
ОООО
ОООО
TRANSCEIVER
SERIES 90-70 PLC
ETHERNET
INTERFACE
a45167
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
ООООООО
О
ОО
О
ОО
ООООО
ООООО
ООО
ООО
ООО
GEnet SYSTEM MANAGER
in Network Station Manager Mode
802.3 LAN
ООООО
ООООО
ОООО
ОООО
TRANSCEIVER
Figure 5-2. Station Manager Accessed Directly over the Network by a GSM in Network
Station Manager Mode
