1

1-6

TCP/IP Ethernet Communications User’s Manual – January 1996

GFK-1004B

How to Make it Work

There are a number of tasks required to get your Ethernet Communications System
working. These tasks involve not only the Ethernet Interface and the GEnet System Manag-
er Software
, but also Logicmaster Configuration and Programming Software. The figure below
illustrates what the tasks are for each part of the system.

a45402

User supplied

IBM PC

compatible

GSM software

Use Configuration

Editor to create

configuration

files for stations

Access

Station Manager

to run

Field Network Test

Use Downloader

to download
configuration

files and

executive software

to Interface

Install Logicmaster software

Fully

Operational

Interface

Use Logicmaster

configuration

package to

configure

Interface

Install Interface in PLC

Power–up PLC

Logicmaster software

Ethernet Interface

Series 90–70

PLC

Power–up PLC again

or restart Interface

Install GSM software

Use Logicmaster 90

programmer package to

program COMMREQs to

initiate communications from

your Series 90–70 PLC

*

Access Station Manager on

Interface to monitor

and manage network

*

Optional if client capability is needed

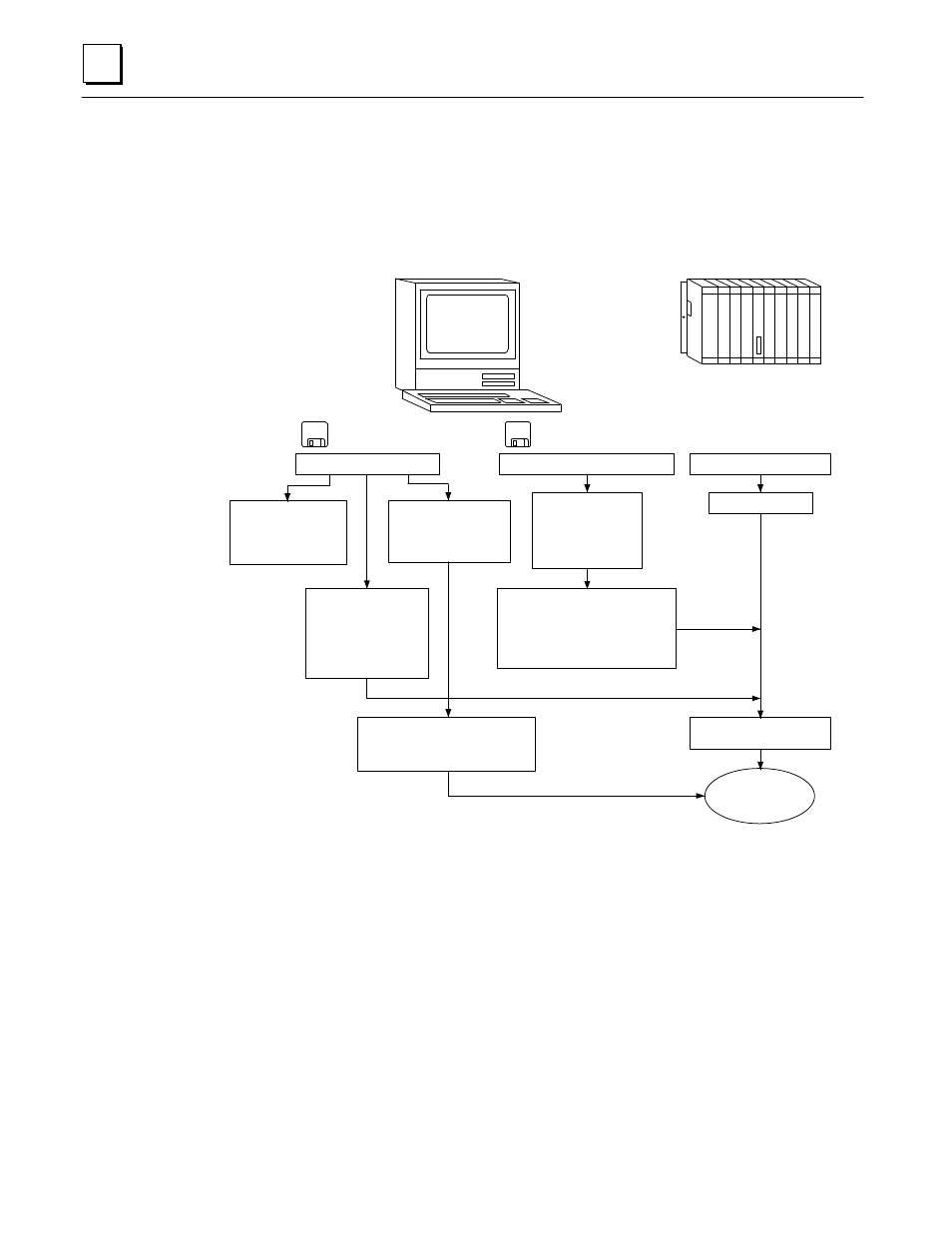

Figure 1-2. The Main Tasks for Installing the TCP/IP Ethernet Communications System
