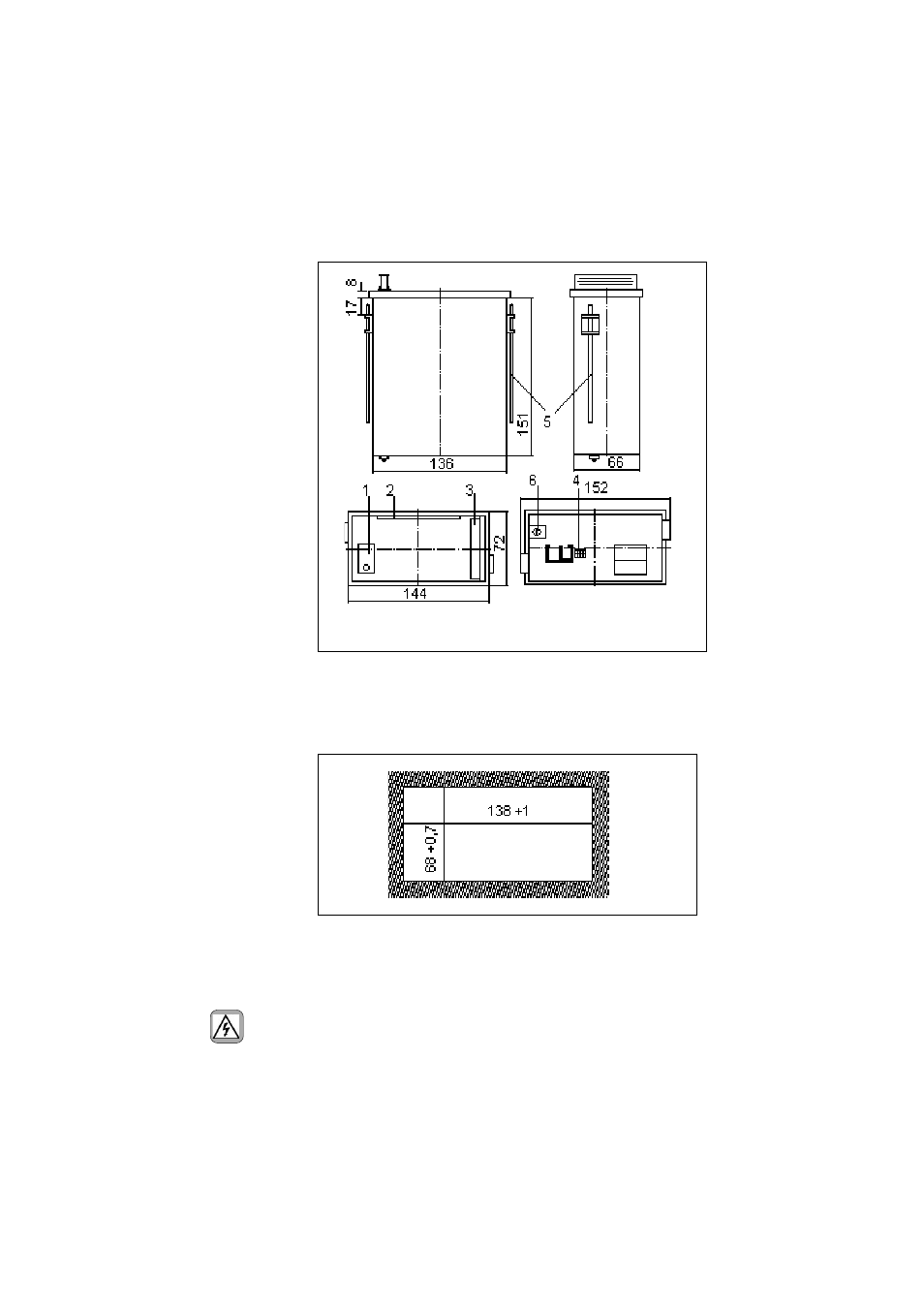

Front
Rear
1
Status indicator
2
Opening for paper feed
3
Handle
4
Connector for connection
5
Mounting screws
cable IPP 144-40;
6
Protective conductor connection
(pin connections: Motor
(must be connected to ground)
control, +5V, open, GND)
The paper reroll mechanism is inserted into the DIN size
panel cutout from the front side and is clamped against the
rear of the switchboard using the mounting screws. The
switchboard thickness must not exceed 12 mm.
Make sure that the unit is properly mounted
before connection and power on.
58
Design
Installation
