55
8.4.2. Connection of IPP 144 - 40 G with a DAA
message display to print fault messages
Messages can be sent by all DAA type B and C versions.
(The A version DAA are not capable of outputting data but
only of displaying them since there is only one serial interface
available which is used to receive data).
The connection of the printer is made via the interface II
(RS 232 C) of the DAA. The printout is normally triggered by
a control device (e.g. a PLC) with a strobe signal (strobe T)
via the terminal strip for control inputs (parallel interface) at
the DAA.

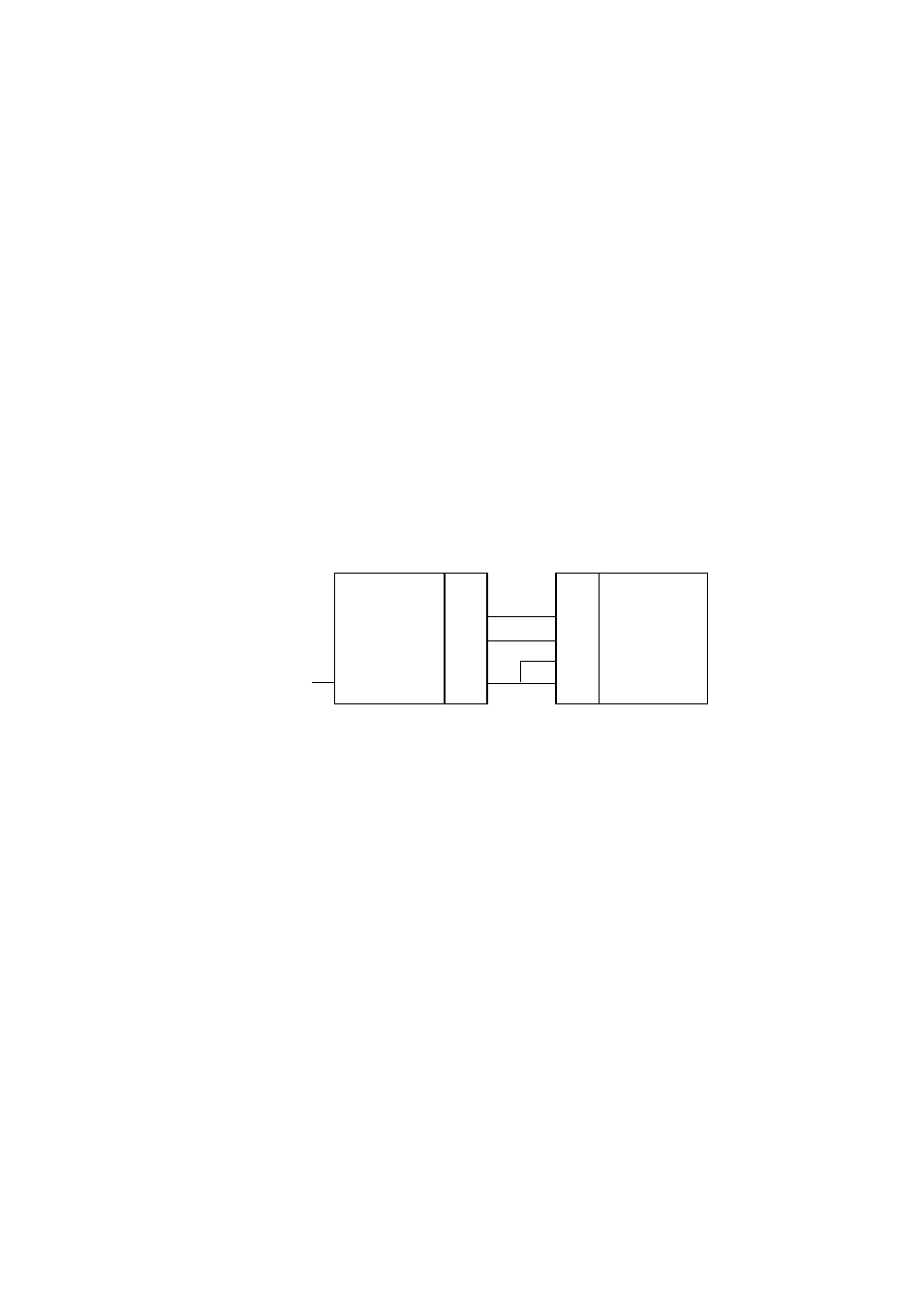

IPP 144-40 G DAA
2
5 7
2
8
1
5
TxD
CTS
GND
RxD
RTS
GND
Sign.
GND
Strobe T
Interface RS - 232 C:
DAA 144 - 120 B: 9 pin D - SUB 9 pin D - SUB
DAA 288 - 120 B: 25 pin D - SUB
DAA 288 - 240 B, C: 25 pin D - SUB
The required connection cable is available as an accessory.
