When you access the file memory from the POD, be sure to define FILE instruction on the
PLC side. File type must be SI (16-bit length). Communication with file memories that are
defined by BD, DI, etc. cannot correctly be performed.
To specify a memory from the editor, input [File No.] + [ : ] (colon) + [address] in this order.
[Example] To specify W30.2
Set the memory to the extent of the memory range of each PLC model.
Use TYPE number to assign indirect memory for macro programs.
Wiring

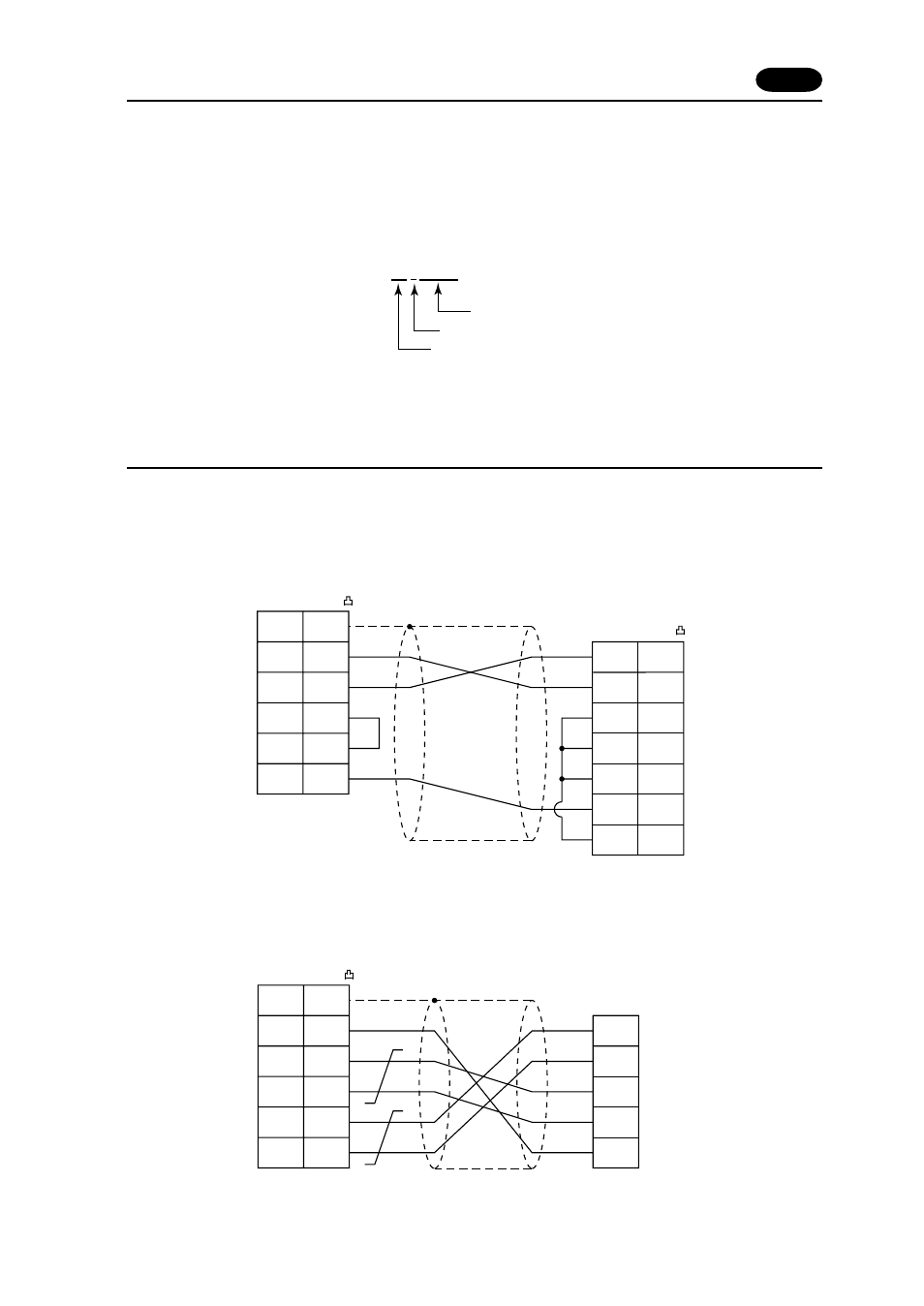

The following is a diagram to show the wiring of the cable which connects POD to PLC.
RS-232C
Wiring Diagram 1
RS-485
Wiring Diagram 2
D-sub 25pin(Male: )
FG
RD
RS
CS
SG
1
3
4
5
7
SD
RD
SD
2
RS
CS
DR
PLC
2
3
4
5
6
SG
CD
7
8
D-sub 25pin(Male: )
POD (CN1)
*
Use twist shielded cables.
D-sub 25pin(Male: )
FG
+SD
-SD
+RD
-RD
1
12
13
24
25
SDA
SDB
SG
7
RDA
RDB
SG
PLC
POD (CN1)
*
Use twist shielded cables.
